Name: KGD - WQ - 506 Laser Spectroscopy Engine Emission Analysis System
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-WQ-506
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KGD - WQ - 506 Laser Spectroscopy Engine Emission Analysis System

Laser Spectroscopy Emission Analysis System

WQ Emission Analysis System

KGD Emission Analysis System

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-WQ-506

Request A Quote

Product Details

Measurement Principle:

TDLAS

Response Time:

T10 - 90 < 2.5s

Accuracy:

≤ ±2.0% MRS Or ≤ ±0.3% F.S.

Repeatability:

≤ ±0.5% F.S.

Drift:

≤ ±1% F.S./8h

Operating Environment:

Ambient Temperature: 5 - 40°C; Relative Humidity: ≤ 80%RH

Highlight:

Laser Spectroscopy Emission Analysis System

WQ Emission Analysis System

KGD Emission Analysis System

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.742.855.2mm

Get Best Price

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price

86--17719566736

Contact Now

Product Description

KGD - WQ - 506 Laser Spectroscopy Engine Emission Analysis System

Product Introduction

The KGD - WQ - 506 Laser Spectroscopy Engine Emission Analysis System is integrated with a Tunable Diode Laser Absorption Spectroscopy (TDLAS) high - temperature sensor module. It can dynamically and accurately measure the volume concentrations of NH₃ and N₂O in engine exhaust samples under high - temperature (190°C) and high - humidity conditions. It is suitable for type - approval tests and related research and development tests that comply with current major vehicle emission standards and the Euro 7 emission standard.

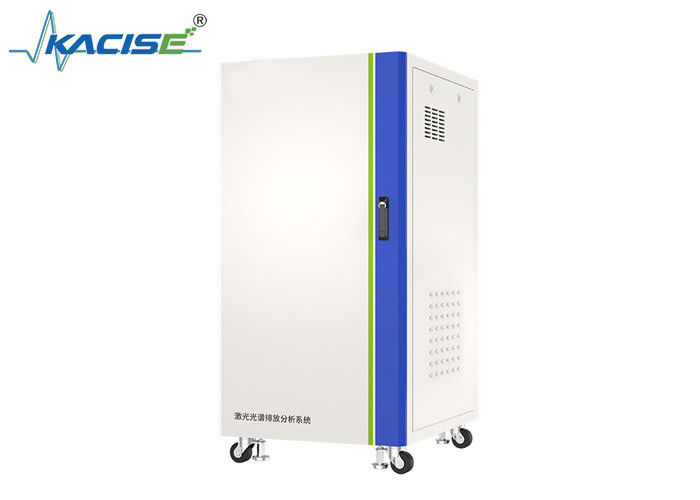

KGD - WQ - 506 Laser Spectroscopy Engine Emission Analysis System 0

Product Features

Adopts TDLAS patented technology, featuring high sensitivity and strong selectivity.
The high - temperature - resistant gas chamber design avoids the condensation loss of NH₃, improving the measurement accuracy and stability.
The small - volume multi - pass reflective gas chamber design enhances the measurement response speed.

Technical Parameters

Gas Component	NH₃	N₂O
Measurement Principle	TDLAS	TDLAS
Minimum Range	0 - 50 ppm	0 - 100 ppm
Maximum Range	0 - 2000 ppm	0 - 2000 ppm
Response Time	T10 - 90 < 2.5s	T10 - 90 < 2.5s
Accuracy	≤ ±2.0% MRS or ≤ ±0.3% F.S.	≤ ±2.0% MRS or ≤ ±0.3% F.S.
Linearity	Determination coefficient: ≥ 0.998; Standard deviation: ≤ 1% F.S.;	Determination coefficient: ≥ 0.998; Standard deviation: ≤ 1% F.S.;
Linearity	Slope: 0.99 - 1.01; Intercept coefficient: ≤ 0.5% F.S.	Slope: 0.99 - 1.01; Intercept coefficient: ≤ 0.5% F.S.
Repeatability	≤ ±0.5% F.S.	≤ ±0.5% F.S.
Drift	≤ ±1% F.S./8h	≤ ±1% F.S./8h
Operating Environment	Ambient temperature: 5 - 40°C; Relative humidity: ≤ 80%RH	Ambient temperature: 5 - 40°C; Relative humidity: ≤ 80%RH
