KGD-WQ-509 Engine Exhaust Particle Number Analysis System

KGD-WQ-509 Engine Exhaust Particle Number Analysis System

Engine Exhaust Particle Number Analysis System

Particle Number Analysis System

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KGD-WQ-509

Contact Us
Request A Quote
KGD-WQ-509 Engine Exhaust Particle Number Analysis System
Product Details
Minimum Particle Size Limit (Counting Efficiency):
41 Nm (>90%)
Measurement Principle:
Condensation Particle Counting
CPC Measurement Range:
0 - 100000 #/cm³
CPC Measurement Precision:
≤ ±10%
Primary Dilution Ratio:
10
Highlight:

Engine Exhaust Particle Number Analysis System

,

Particle Number Analysis System

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65 online

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price
Good price Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm online

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Get Best Price
Good price 10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement online

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price
Good price Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323 online

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

KGD-WQ-509Engine Exhaust Particle Number Analysis System

Product Introduction

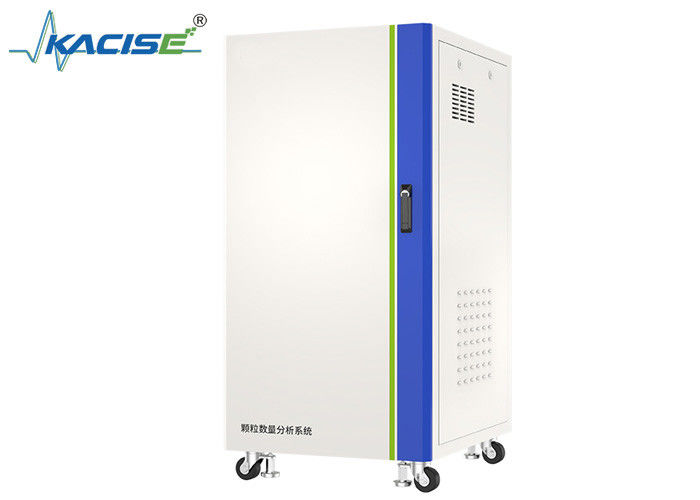

The Engine Exhaust Particle Number Analysis System can continuously measure the number concentration of solid particles in engine exhaust gas online. It can be combined with a full - flow dilution system or a partial - flow dilution system and is used for engine/vehicle certification tests in accordance with the latest regulations. It can also directly measure exhaust gas from the exhaust pipe for research and development tests of engines or after - treatment devices.

KGD-WQ-509 Engine Exhaust Particle Number Analysis System 0

Product Features

  • High - precision primary and secondary dilution
  • High - performance VPR (Volatile Particle Remover) device
  • High - precision CPC (Condensation Particle Counter)
  • Minimum particle size limit can be extended to 10nm

Technical Parameters

Parameter Heavy - duty Vehicles: Euro VI, China VI; Heavy - duty Vehicles: Euro 7
Compliance Standard Non - Road Mobile Machinery: Stage V
Minimum Particle Size Limit (Counting Efficiency) 23 nm (50% ± 12%) 10 nm (65% ± 15%)
Minimum Particle Size Limit (Counting Efficiency) 41 nm (>90%) 15 nm (>90%)
Measurement Principle Condensation Particle Counting Condensation Particle Counting
CPC Measurement Range 0 - 100000 #/cm³ 0 - 100000 #/cm³
CPC Measurement Precision ≤ ±10% ≤ ±10%
Primary Dilution Ratio 10 10
Secondary Dilution Ratio 10-30 10-30
Precision of Total Dilution Ratio ≤ ±10% of the set value ≤ ±10% of the set value
VPR Removal Efficiency >99.0% (C40) >99.0% (C40)
Response Time T90 < 5s T90 < 5s
Operating Environment Ambient temperature: 5 - 35°C; Relative humidity: ≤ 80%RH Ambient temperature: 5 - 35°C; Relative humidity: ≤ 80%RH
