Name: KGD-WQ-510 Motor Vehicle Brake Emission Testing System with Euro 7 Compliance Advanced CPC Technology and Electropolished Inner Wall
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-WQ-510
Price: 72.00 USD
Availability: InStock

Home > Products > Gas Detector Sensor >

KGD-WQ-510 Motor Vehicle Brake Emission Testing System with Euro 7 Compliance Advanced CPC Technology and Electropolished Inner Wall

Motor Vehicle Brake Emission Testing System

KGD - WQ - 510 Brake Emission Testing System

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-WQ-510

Request A Quote

Product Details

Flow Control Range:

100 - 2000 M³/h

Flow Control Stability:

≤ ±5% Of The Set Value

Flow Measurement Accuracy:

≤ ±1.5% Of The Reading

Cooling Air Temperature:

23°C ± 2°C

Cooling Air Humidity:

50% ± 5%RH

Cooling Air Filtration Device:

Activated Carbon Filter And H13 - Grade Particle Filter

Highlight:

Motor Vehicle Brake Emission Testing System

KGD - WQ - 510 Brake Emission Testing System

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Online Coal Gas Analyzer with Multi-component Measurement High Accuracy and Automated Calorific Value Calculation

Get Best Price

In-situ Zirconia Gas Analyzer with Simultaneous O₂ and COe Measurement, High Temperature Resistance up to 1500°C, and RS-485/MODBUS Communication

Get Best Price

KGD-WQ-513 Vehicle Emission Gas Analyzer with High-Precision Micro-Flow Infrared Sensor for Direct NO and NO₂ Measurement and Multi-Stage Filtration

Get Best Price

KGD-WQ-524 Zero Gas Generator with 16L/min Flow Rate 6-Channel Output and 6-Year Service Life for Vehicle Exhaust Detection

Get Best Price

Contact Now

Product Description

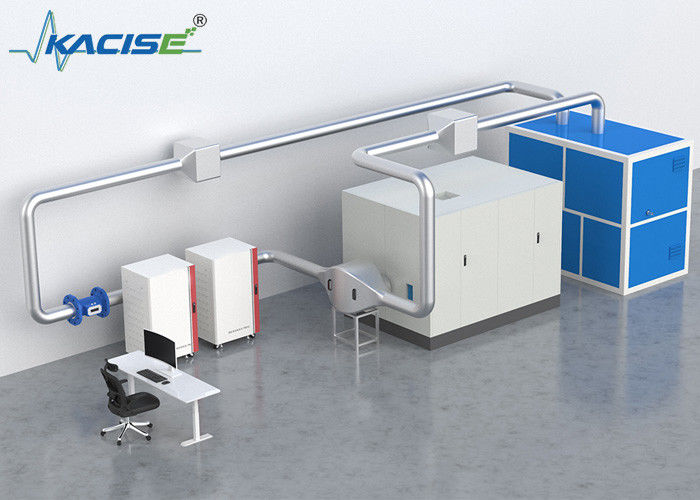

KGD - WQ - 510 Motor Vehicle Brake Emission Testing System

Product Overview

The KGD - WQ - 510 Motor Vehicle Brake Emission Testing System is a comprehensive solution specifically designed for standardized testing of motor vehicle brake particle emissions. This integrated system meets certification test requirements for the Euro 7 emission standard and supports related research and development testing needs.

System Features

Designed and optimized using advanced computational fluid dynamics simulation technology to reduce particle loss and improve mixing degree at sampling points
Electropolished inner wall of dilution air duct reduces particle loss and improves measurement repeatability
Verified through years of practical applications with excellent reliability in testing installation and measurement processes
Advanced CPC (Condensation Particle Counter) technology ensures first-class measurement accuracy and stability

Technical Specifications

Parameter	Details
Flow Control Range	100 - 2000 m³/h
Flow Control Stability	≤ ±5% of the set value
Flow Measurement Accuracy	≤ ±1.5% of the reading
Cooling Air Temperature	23°C ± 2°C
Cooling Air Humidity	50% ± 5%RH
Cooling Air Filtration Device	Activated carbon filter and H13-grade particle filter

Particle Sampling System

Maximum Particle Size Limit	2.5μm and 10μm
Filter Paper Sampling Temperature	≥ 15°C; No condensation
Filter Paper Diameter	47mm
Sampling Flow Rate	16.7 L/min
Sampling Flow Control Accuracy	≤ ±2% of the set value

Particle Number Analysis System

Measurement Principle	Condensation Particle Counting (CPC)
Measurement Items	TPM10; SPN10
Maximum Particle Size Limit	2.5μm
Minimum Particle Size Limit	10 nm (counting efficiency: 65% ± 15%) 15 nm (counting efficiency: >90%)
CPC Measurement Range	0 - 100000 #/cm³
CPC Measurement Precision	≤ ±10%
Primary Dilution Ratio	10
Secondary Dilution Ratio	10-30
VPR Removal Efficiency	>99.9%
Response Time	T90 < 5s
