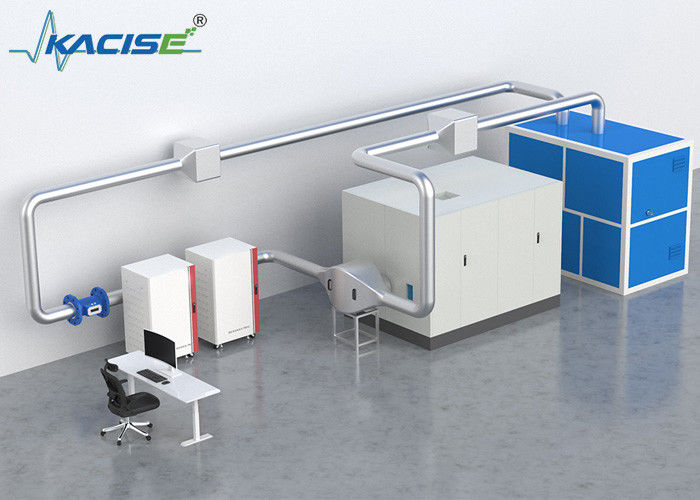

KGD - WQ - 510 Motor Vehicle Brake Emission Testing System

KGD - WQ - 510 Motor Vehicle Brake Emission Testing System

Product Introduction

The KGD - WQ - 510 Motor Vehicle Brake Emission Testing System is a comprehensive solution specifically designed for the standardized testing of motor vehicle brake particle emissions. It is composed of an air duct control system, a particle sampling system, a particle number analysis system, an inertial brake dynamometer, and a main control system. The main test items include PM2.5, PM10, SPN, and TPN, which can meet the certification test requirements of the Euro 7 emission standard and related research and development test needs..

Product Features

• The system is designed and optimized using advanced computational fluid dynamics simulation technology to reduce particle loss and improve the mixing degree at sampling points.
• The inner wall of the dilution air duct is electropolished to reduce particle loss and improve the measurement repeatability.
• The testing system and core components have been verified through years of practical applications, featuring excellent reliability in the testing installation and measurement process.
• Advanced CPC (Condensation Particle Counter) technology is used for particle counting, ensuring first - class measurement accuracy and stability.

Technical Parameters
