Name: KGD WQ 514 Motor Vehicle PN Rapid Detector Advanced Technology for Measuring Fine Particulate Matter in Exhaust Gas
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-WQ-514
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KGD WQ 514 Motor Vehicle PN Rapid Detector Advanced Technology for Measuring Fine Particulate Matter in Exhaust Gas

Fine Particulate Matter PN Rapid Detector

Advanced Technology PN Rapid Detector

Exhaust Gas PN Rapid Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-WQ-514

Request A Quote

Product Details

Measuring Range:

5,000 - 10,000,000 #/cm³

Particle Size Range:

≥ 23nm

Indication Error:

≤ ±25%

Response Time:

< 10s (T0 - T95)

Operating Temperature:

0 - 55°C

Operating Voltage:

AC100 - 230V (50 - 60Hz)

Highlight:

Fine Particulate Matter PN Rapid Detector

Advanced Technology PN Rapid Detector

Exhaust Gas PN Rapid Detector

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System

Get Best Price

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

Get Best Price

Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²

Get Best Price

86--17719566736

Contact Now

Product Description

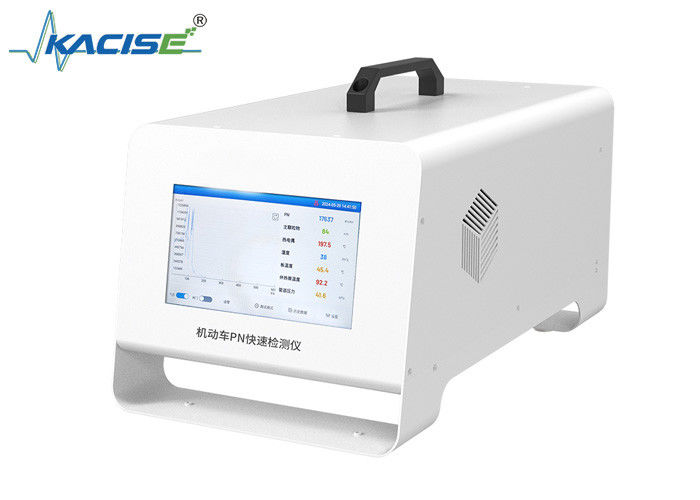

KGD WQ 514 Motor Vehicle PN Rapid Detector

Advanced technology for measuring fine particulate matter in exhaust gas with high precision and fast response time.

Key Specifications

Measuring Range	5,000 - 10,000,000 #/cm³
Particle Size Range	≥ 23nm
Indication Error	≤ ±25%
Response Time	< 10s (T0 - T95)
Operating Temperature	0 - 55°C
Operating Voltage	AC100 - 230V (50 - 60Hz)

Product Overview

The KGD WQ 514 Motor Vehicle PN Rapid Detector measures the number concentration of fine particulate matter in vehicle exhaust gas using the DC principle (Diffusion Charging Counting Method). This technology determines particle count by measuring particle charge without requiring gas sample filtration or dilution.

Product Advantages

Efficient measurement: No sample filtration or dilution required with fast measurement speed
High sensitivity: Diffusion charging counting method detects ultra-fine particles effectively
Simple operation: Integrated calibration device eliminates need for compressed air sources
Low maintenance: Through-type gas path resists clogging for long-term stable operation
Fast response: Less than 10 second response time enables quick PN-PTI inspections
Durable construction: Resistant to soot blockage and vibration interference

Technical Specifications

Power Consumption	Start-up: 700W, Steady-state: 200W
Air Intake Method	Heated Tube (230 or 110VAC heating), Customizable pipeline length
Signal Output	RS-232 (Customizable: RS-485, Bluetooth, 4G, Wi-Fi)
Dimensions (L×W×H)	244 × 257 × 419 (mm)
Weight	10kg
