Name: Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-WQ-519
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

KGD-WQ-519 Exhaust Smoke Detection System

Print Interface Exhaust Smoke Detection System

Digital Output Exhaust Smoke Detection System

Place of Origin:

CHINA

Certification:

Model Number:

KGD-WQ-519

Request A Quote

Product Details

Measurement Index:

Opacity N: (0 - 99.99)%, Light Absorption Coefficient K: (0 - 16) M⁻¹

Resolution:

N: 0.1%, K: 0.01 M⁻¹

Indication Error:

± 2.0%

Communication:

RS - 232/RS - 485 Digital Output And Print Interface

Power Supply:

AC220V ± 10%, 50Hz ± 1Hz

Highlight:

KGD-WQ-519 Exhaust Smoke Detection System

Print Interface Exhaust Smoke Detection System

Digital Output Exhaust Smoke Detection System

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD MQ 531 Biogas Analyzer Smart Portable Type Bluetooth 4.0 Communication and Electrical Parameters

Get Best Price

Flow Guiding Type Gas Sampling Method Direct Insertion Oxygen Analyzer KGD-MQ-512 50mm Pipe Diameter For Industrial

Get Best Price

Mainstream End Tidal Carbon Dioxide Sensor KGD - 412 for Measuring End - Tidal CO₂ Concentration

Get Best Price

86--17719566736

Contact Now

Product Description

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

Product Overview

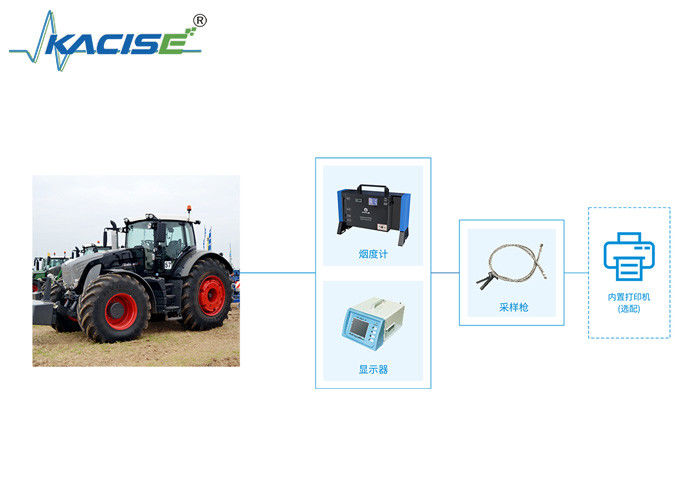

The stand-alone version of the KGD-WQ-519 Non-Road Machinery/Diesel Vehicle Exhaust Smoke Detection System is equipped with a transmissive smoke meter, display, and sampling probe. An internal printer is optional. This system measures exhaust smoke from engines and diesel vehicles with a portable design that enables on-vehicle measurement and real-time monitoring of emission levels under actual operating conditions.

Key Features

Simultaneously displays opacity and light absorption coefficient
Detection chamber features constant-temperature control and is moisture-resistant
Automatic zero-adjustment function
Reserved interfaces for oil temperature and rotational speed
Optional internal printer

Technical Specifications

Measurement Index	Opacity N: (0 - 99.99)%, Light Absorption Coefficient K: (0 - 16) m⁻¹
Resolution	N: 0.1%, K: 0.01 m⁻¹
Indication Error	± 2.0%
Communication	RS-232/RS-485 digital output and print interface
Power Supply	AC220V ± 10%, 50Hz ± 1Hz

Operational Advantages

The system's highly automated detection process isn't restricted by on-site or environmental conditions, significantly reducing detection time for single engine/diesel vehicle tests. This improvement enhances work efficiency for road inspections, spot checks, and enterprise supervision inspections.
