Name: Ultraviolet NOx Emission Analyzer with Ultraviolet Absorption Spectroscopy for Low-Emission Detection and Automatic Zero-Adjustment
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-WQ-520
Price: 72.00 USD
Availability: InStock

Home > Products > Gas Detector Sensor >

Ultraviolet NOx Emission Analyzer with Ultraviolet Absorption Spectroscopy for Low-Emission Detection and Automatic Zero-Adjustment

Ultraviolet NOₓ Emission Analyzer

Vehicle Exhaust NOₓ Emission Analyzer

Low Emission NOₓ Emission Analyzer

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-WQ-520

Request A Quote

Ultraviolet NOx Emission Analyzer with Ultraviolet Absorption Spectroscopy for Low-Emission Detection and Automatic Zero-Adjustment

Product Details

Measuring Range:

NO: (0 - 4000) Ppm; NO₂: (0 - 400) Ppm

Precision:

± 2%F.S.

Response Time:

T90 ≤ 30s

Ambient Temperature:

(5 - 40) °C

Ambient Pressure:

(86 - 106) KPa

Relative Humidity:

≤ 85%

Highlight:

Ultraviolet NOₓ Emission Analyzer

Vehicle Exhaust NOₓ Emission Analyzer

Low Emission NOₓ Emission Analyzer

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Online Coal Gas Analyzer with Multi-component Measurement High Accuracy and Automated Calorific Value Calculation

Get Best Price

In-situ Zirconia Gas Analyzer with Simultaneous O₂ and COe Measurement, High Temperature Resistance up to 1500°C, and RS-485/MODBUS Communication

Get Best Price

KGD-WQ-513 Vehicle Emission Gas Analyzer with High-Precision Micro-Flow Infrared Sensor for Direct NO and NO₂ Measurement and Multi-Stage Filtration

Get Best Price

KGD-WQ-524 Zero Gas Generator with 16L/min Flow Rate 6-Channel Output and 6-Year Service Life for Vehicle Exhaust Detection

Get Best Price

Contact Now

Product Description

KGD-WQ-520 Ultraviolet NOₓ Emission Analyzer

Product Overview

The KGD-WQ-520 Ultraviolet NOₓ Emission Analyzer is used for low-emission detection of vehicle exhaust. This new-generation nitrogen oxide analyzer is independently developed based on ultraviolet absorption spectroscopy gas analysis technology.

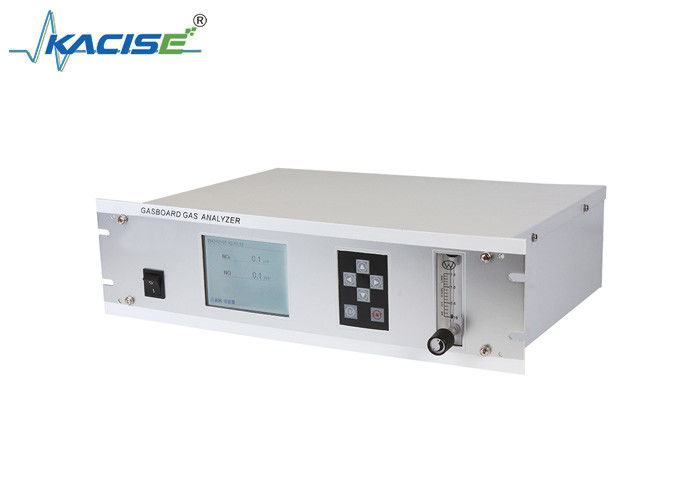

KGD-WQ-520 Ultraviolet NOₓ Emission Analyzer product photo

Key Features

Utilizes ultraviolet absorption spectroscopy gas analysis technology to reduce gas cross-interference
Sampling flow has minimal impact on NO and NO₂ measurement with strong anti-interference capability
Low detection limit meets requirements for vehicle exhaust low-emission detection
Internal automatic zero-adjustment air pump for automatic air zero-adjustment
Self-diagnosis function for online sensor status monitoring
Communication interface for easy data transmission and integration with other exhaust gas analysis equipment

Technical Specifications

Measured Components	NO, NO₂
Measuring Range	NO: (0-4000) ppm; NO₂: (0-400) ppm
Precision	± 2% F.S.
Response Time	T90 ≤ 30s
Ambient Temperature	(5-40) °C
Ambient Pressure	(86-106) kPa
Relative Humidity	≤ 85%
Communication	RS-232/RS-485, (4-20) mA
Power Supply	Rated voltage 220V ± 22V; Frequency 50Hz ± 1Hz
Display	LCD display
Alarm Output	Passive contact signal
