KGD WQ 530 Micro-flow Infrared NO Gas Sensor Module Measuring Range 0 200 2000 5000ppm Customizable Low-range

KGD WQ 530 Micro-flow Infrared NO Gas Sensor Module Measuring Range 0 200 2000 5000ppm Customizable Low-range

KGD WQ 530 Gas Sensor Module

Infrared NO Gas Sensor Module

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KGD-WQ-530

Contact Us
Request A Quote
KGD WQ 530 Micro-flow Infrared NO Gas Sensor Module Measuring Range 0 200 2000 5000ppm Customizable Low-range
Product Details
Measuring Range:
NO: 0 - 200 - 2000 - 5000ppm (customizable)
Resolution:
1ppm
Indication Error:
± 25ppm Or ± 4% Of The Reading (whichever Is Greater)
Repeatability:
± 20ppm Or ± 3% Of The Reading (whichever Is Greater)
Response Time:
T90 ≤ 4.5s
1:
2
Highlight:

KGD WQ 530 Gas Sensor Module

,

Infrared NO Gas Sensor Module

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65 online

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price
Good price Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm online

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Get Best Price
Good price 10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement online

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price
Good price Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323 online

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

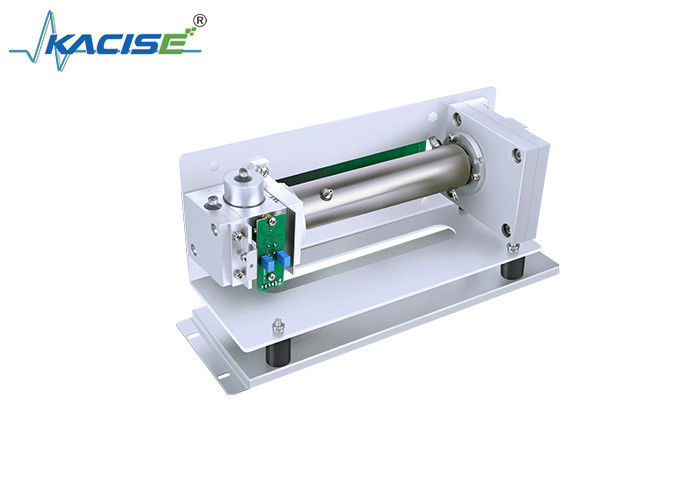

KGD - WQ - 530 Micro - flow Low - range Infrared NO Gas Sensor Module

Product Introduction

The KGD - WQ - 530 Micro - flow Low - range Infrared NO Gas Sensor Module adopts micro - flow infrared dual - gas - chamber sensor technology. The gas chamber is composed of a measured gas chamber and a reference gas chamber. After the infrared light source irradiates the measured gas and the reference gas respectively, the signal waveforms formed in the micro - flow infrared sensor are processed by the signal processing system, and the concentration of the measured gas is obtained through the ratio.

KGD WQ 530 Micro-flow Infrared NO Gas Sensor Module Measuring Range 0 200 2000 5000ppm Customizable Low-range 0

Product Features

  • Advanced micro - flow infrared sensor technology.
  • The gas chamber adopts a dual - chamber design of measurement and reference, ensuring high accuracy.
  • Modular sensor design for easy integration.
  • Automatic temperature and pressure compensation.

Technical Parameters

Parameter Details
Measuring Range NO: 0 - 200 - 2000 - 5000ppm (customizable)
Resolution 1ppm
Indication Error ± 25ppm or ± 4% of the reading (whichever is greater)
Repeatability ± 20ppm or ± 3% of the reading (whichever is greater)
Response Time T90 ≤ 4.5s
