KGD - WQ - 532 Gas Sensor Module For Engine NOx Emission Detection

KGD - WQ - 532 Gas Sensor Module For Engine NOx Emission Detection

532 Gas Sensor Module

Engine NOx Emission Gas Sensor Module

KGD WQ 532 Gas Sensor Module

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KGD-WQ-532

Contact Us
Request A Quote
KGD - WQ - 532 Gas Sensor Module For Engine NOx Emission Detection
Product Details
Measuring Range:
NO: 0 - 500 - 5000ppm; NO₂: 0 - 500 - 1000ppm (customizable)
Resolution:
1ppm
Indication Error:
± 25ppm Or ± 4% Of The Reading (whichever Is Greater)
Repeatability:
± 20ppm Or ± 3% Of The Reading (whichever Is Greater)
Response Time:
T90 ≤ 4.5s
Highlight:

532 Gas Sensor Module

,

Engine NOx Emission Gas Sensor Module

,

KGD WQ 532 Gas Sensor Module

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65 online

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price
Good price Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm online

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Get Best Price
Good price 10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement online

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price
Good price Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323 online

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

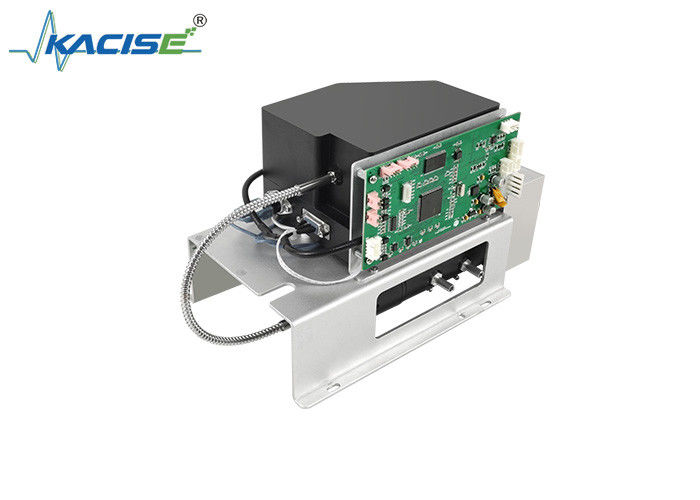

KGD - WQ - 532 Gas Sensor Module for Engine NOx Emission Detection

Product Introduction

The KGD - WQ - 532 Gas Sensor Module for Engine NOx Emission Detection adopts high - precision ultraviolet differential absorption spectroscopy gas analysis technology. Its light source is a stable flashing xenon lamp. When light travels through the gas, the differential absorption characteristic intensities generated by each molecule in the gas at different wavelength bands are used to deduce the concentration and type of the gas.

KGD - WQ - 532 Gas Sensor Module For Engine NOx Emission Detection 0

Product Features

  • Advanced ultraviolet differential absorption method with better performance at low concentrations.
  • Directly measures NO and NO₂ without the need for a NOx converter.
  • High measurement accuracy, good stability, strong anti - interference ability, and is not affected by moisture.
  • Modular sensor design for easy integration.
  • Automatic temperature and pressure compensation.

Technical Parameters

Parameter Details
Measuring Range NO: 0 - 500 - 5000ppm; NO₂: 0 - 500 - 1000ppm (customizable)
Resolution 1ppm
Indication Error ± 25ppm or ± 4% of the reading (whichever is greater)
Repeatability ± 20ppm or ± 3% of the reading (whichever is greater)
Response Time T90 ≤ 4.5s
