CH₄ Detection Simplified KGD YQ 507 Methane Leak Detector With 1 Ppm Resolution

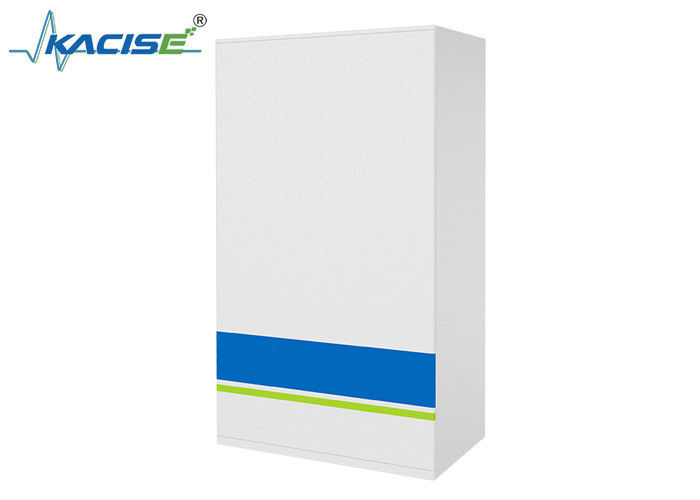

KGD - YQ - 507 Methane Leak Detector

Product Introduction

The KGD - YQ - 507 Methane Leak Detector is a high - performance optical gas analyzer based on Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology. The product uses narrow - band laser spectral absorption technology, which has unique selectivity for methane and is not interfered by other gases, water vapor, dust, etc. It can operate stably in harsh field working conditions and complex gas environments. The system is equipped with a high - performance probe and a gas chamber processed by a special technology, which not only improves the detection accuracy and sensitivity, but also ensures the stability of performance and a longer service life.

The product has built - in LoRaWAN / NB - IoT modules, enabling it to participate in the Internet of Things and communicate remotely with gateways, supporting remote data transmission. It is equipped with two power supply modes: rechargeable lithium - ion batteries and solar energy, which can achieve self - power supply during field monitoring, and users can make optional configurations according to their needs.

Product Features

• Detects CH₄ using the narrow - band laser spectral absorption method based on TDLAS technology, free from environmental interference.
• Fast response speed, high measurement accuracy, and a service life of ≥ 10 years.
• Modular design, simple installation, easy integration, and supports remote data transmission.
• Low power consumption, two power supply modes, and the whole device can operate with self - power supply outdoors.

Technical Parameters
