Name: YQ 512 Online Type Flue Gas Analyzer with CO 0-10000 ppm Range Ideal for Industrial Applications
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-YQ-512
Price: 72.00 USD
Availability: InStock

Home > Products > Gas Detector Sensor >

YQ 512 Online Type Flue Gas Analyzer with CO 0-10000 ppm Range Ideal for Industrial Applications

Industrial Applications Flue Gas Analyzer

Online Type Flue Gas Analyzer

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-YQ-512

Request A Quote

YQ 512 Online Type Flue Gas Analyzer with CO 0-10000 ppm Range Ideal for Industrial Applications

Product Details

Measured Components:

SO₂, NO, CO, CO₂, O₂

Measurement Principle:

SO₂/NO/CO/CO₂: NDIR; O₂: ECD

Measuring Range:

SO₂/NO: (0 - 2000) Ppm; CO₂/O₂: (0 - 25)%; CO: (0 - 10000) Ppm

Accuracy:

SO₂/NO/CO/CO₂: ±2% F.S.; O₂: ±2% F.S.

Resolution:

SO₂/NO/CO: 1 Ppm; CO₂/O₂: 0.01%

Repeatability:

≤1%

Highlight:

Industrial Applications Flue Gas Analyzer

Online Type Flue Gas Analyzer

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Highly Sensitive Electrochemical Three-Electrode CO Detection Module with 0-1000PPM Range and 80±20nA/PPM Sensitivity

Get Best Price

KGD PM 203 Laser Particle Counting Sensor with 0.3 - 10μm Detection Range and Six-Channel Particle Output Compliant with JJF 1190 - 2008

Get Best Price

KGD-PM-201 Laser Particle Counting Sensor with 1s Data Refresh Frequency 1000000 pcs/28.3L Maximum Allowable Concentration and 0.3μm Detection Size

Get Best Price

Single-channel Infrared CO₂ Sensor KGD-CM-103 with 400-5000ppm Detection Range ±(50ppm + 8%) Accuracy and 30s Power-on Stabilization

Get Best Price

Contact Now

Product Description

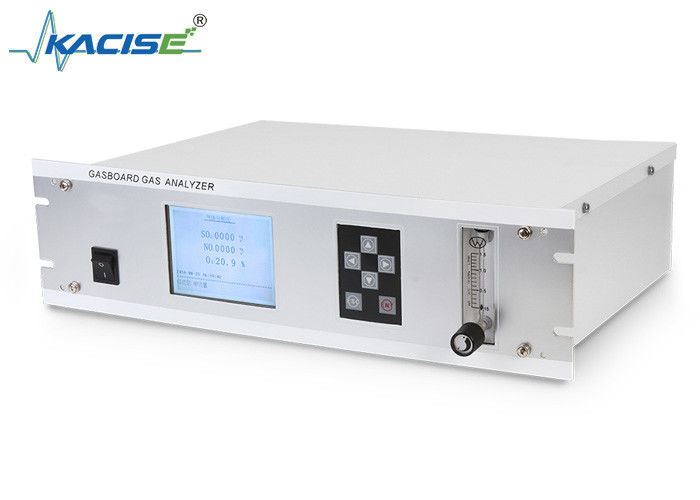

KGD - YQ - 512 Flue Gas Analyzer (Online Type)

Product Introduction

The KGD - YQ - 512 Flue Gas Analyzer (Online Type) adopts Non - Dispersive Infrared (NDIR) gas analysis technology and long - life electrochemical sensing technology. It can simultaneously and online measure the volume concentrations of gases such as SO₂, NO, CO, O₂, and CO₂ in flue gas components.

YQ 512 Online Type Flue Gas Analyzer with CO 0-10000 ppm Range Ideal for Industrial Applications 0

Product Features

High measurement accuracy: There is no cross - interference among multi - component measured gases; gaseous water in flue gas has no impact on the measurement of SO₂ and NO, and the sampling flow rate has no impact on the measurement of SO₂, NO, and CO.
Stable working performance: The sensors have strong stability; all parts in contact with flue gas are made of special heat - resistant and corrosion - resistant materials such as stainless steel and polytetrafluoroethylene.
Simple data management: Data can be transmitted to the superior centralized control system through multiple interfaces.

Technical Parameters

Parameter	Details
Measured Components	SO₂, NO, CO, CO₂, O₂
Measurement Principle	SO₂/NO/CO/CO₂: NDIR; O₂: ECD
Measuring Range	SO₂/NO: (0 - 2000) ppm; CO₂/O₂: (0 - 25)%; CO: (0 - 10000) ppm
Accuracy	SO₂/NO/CO/CO₂: ±2% F.S.; O₂: ±2% F.S.
Resolution	SO₂/NO/CO: 1 ppm; CO₂/O₂: 0.01%
Repeatability	≤1%
Response Time	T90 < 20s
Optimal Flow Rate	(0.7 - 1.2) L/min
Inlet Gas Pressure	(2 - 50) kPa
Sample Gas Requirements	Dust - free, water - free, oil - free
Electrical Parameter	-
Communication	RS485/RS232, 4 - 20mA
Power Supply	220V AC, 50Hz
Display	LCD
Functional Configuration	Has a self - diagnostic function, can check the sensor status online
Functional Configuration	Built - in zero - adjustment air pump, can realize automatic air zero - adjustment
