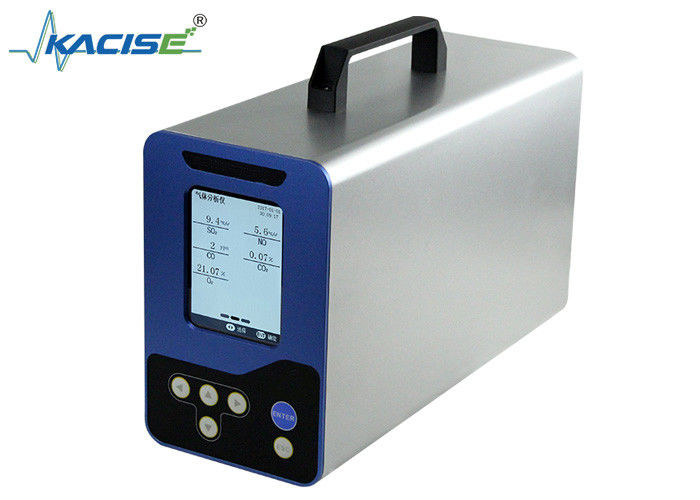

Portable Infrared Flue Gas Analyzer KGD - YQ - 521 for Energy - Efficiency Testing

Portable Infrared Flue Gas Analyzer KGD - YQ - 521 for Energy - Efficiency Testing

Product Introduction

The KGD - YQ - 521 Portable Infrared Flue Gas Analyzer is based on non - dispersive infrared technology and long - life electrochemical sensing technology. It can simultaneously measure the volume concentrations of gases such as SO₂, NO, CO, CO₂, and O₂ in flue gas. It is equipped with an integrated sampling and tracing device and a portable pretreatment device, which do not change the components of the measured gas and meet the detection requirements of analytical instruments. It is a high - performance portable product specifically developed for environmental monitoring, energy - saving monitoring, energy - efficiency testing, and environmental scientific research.

Product Features

• High Measurement Accuracy: Based on non - dispersive infrared gas analysis technology, it creatively adopts a half - chamber gas path design. The instrument has strong stability, is less affected by external interferences (such as temperature fluctuations and voltage fluctuations), and has lower drift. There is basically no cross - interference between multi - component measurement gases, ensuring high measurement accuracy.
• The analysis main unit is equipped with an integrated sampling and tracing device and a portable pretreatment device, which meet the requirements of flue gas sampling and instrument analysis after filtration for dust removal, condensation for water removal, and flow control, without changing the components of the measured gas in the flue gas.

Technical Parameters
