Boiler Flue Gas Emission Monitoring System Standard Version KGD - YQ - 528

Boiler Flue Gas Emission Monitoring System Standard Version KGD - YQ - 528

Standard Version Gas Emission Monitoring System

Boiler Gas Emission Monitoring System

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KGD-YQ-528

Contact Us
Request A Quote
Boiler Flue Gas Emission Monitoring System Standard Version KGD - YQ - 528
Product Details
Measurement Components:
NO, O₂, CO, CO₂
Measurement Principle:
NO, CO, O₂: ECD; CO₂: NDIR
Measurement Range:
NO: 0 - 100mg/m²; CO₂, O₂: 0 - 25%; CO: 0 - 5%
Accuracy:
≤ 3%F.S.
Response Time:
≤ 30s
Highlight:

Standard Version Gas Emission Monitoring System

,

Boiler Gas Emission Monitoring System

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65 online

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price
Good price Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm online

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Get Best Price
Good price 10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement online

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price
Good price Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323 online

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

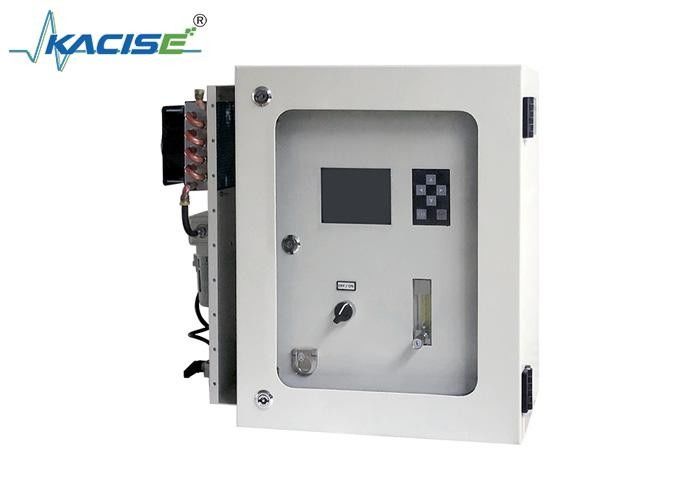

Boiler Flue Gas Emission Monitoring System (Standard Version) KGD - YQ - 528

Product Introduction

The KGD - YQ - 528 Boiler Flue Gas Emission Monitoring System (Standard Version) is based on non - dispersive infrared gas analysis technology and long - life electrochemical sensing technology. It is equipped with an integrated and automated sampling pretreatment unit and control unit. It can simultaneously measure the gas concentrations of NO, O₂, CO, and CO₂ in flue gas online. It is an online monitoring device specifically designed for boiler air pollutant emission and energy - efficiency control, meeting the regulatory requirements of national and local environmental protection departments.

Boiler Flue Gas Emission Monitoring System Standard Version KGD - YQ - 528 0

Product Features

  • Specifically designed for monitoring flue gas emissions from small - scale gas - fired boilers.
  • Using the electrochemical method to measure NO.
  • Ultra - low range design with high measurement accuracy.
  • Monitoring combustion efficiency to reduce energy consumption.
  • Fully automated control for easy operation.

Technical Parameters

Measurement Components NO, O₂, CO, CO₂
Measurement Principle NO, CO, O₂: ECD; CO₂: NDIR
Measurement Range NO: 0 - 100mg/m²; CO₂, O₂: 0 - 25%; CO: 0 - 5%
Accuracy ≤ 3%F.S.
Response Time ≤ 30s
Working Parameters
Working Power Supply 220V AC ± 20%, 50Hz ± 1Hz
Display Liquid crystal display
Interface Signal Interface signal
Communication Standard RS232, RS485, DC(4 - 20)mA current output, one - way audible and visual alarm output
Functional Configuration With data storage function (can store three - year historical data)
