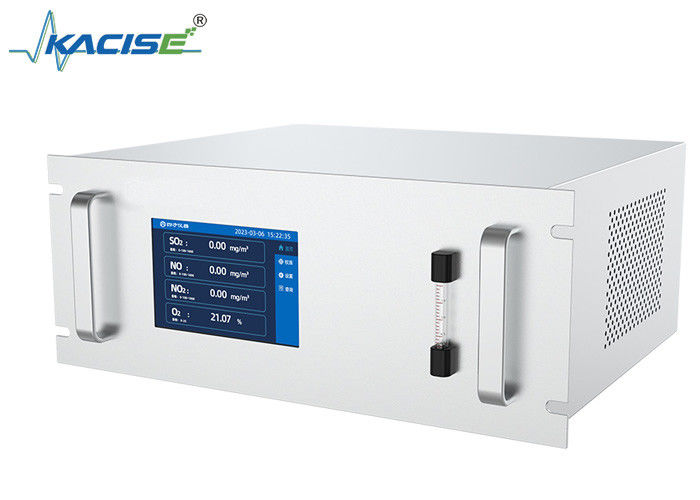

UV Flue Gas Analyzer Ultra - Low Range KGD - YQ - 514 For Ultra - Low Emission Monitoring

UV Flue Gas Analyzer (Ultra - Low Range) KGD - YQ - 514 meets the market demand for ultra - low emission monitoring.

Product Introduction

The KGD - YQ - 514 UV Flue Gas Analyzer (Ultra - Low Range) is an online gas analyzer independently developed based on high - precision ultraviolet differential absorption spectroscopy gas analysis technology. It adopts a unique algorithm and long - optical - path multiple - return gas cell technology, endowing the product with characteristics such as good stability, high sensitivity, strong absorption signal ability, and long service life. The product is designed with a standard 4U chassis and can accurately measure the concentrations of SO₂, NO, and NO₂ gas components in real - time online, meeting the market demand for ultra - low emission monitoring.

Product Features

• Excellent performance with linear error ≤ 2% F.S. and response time T90 ≤ 30s.
• Constant temperature control to reduce the impact of ambient temperature.
• Optimized absorption peak and interference compensation algorithm with little cross - interference.
• The light source uses imported xenon lamps, featuring long service life and high stability.
• Two - way RS232/485 serial port output to meet the requirements of environmental protection direct data acquisition instruments.

Technical Parameters
