Name: Yokogawa Flange Mounted Differential Pressure Transmitter 0-10MPa
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: EJA210E
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Yokogawa Flange Mounted Differential Pressure Transmitter 0-10MPa

flange mounted pressure transmitter

differential pressure sensor 10MPa

precision pressure transmitter flange

Brand Name:

yokogawa

Certification:

Model Number:

EJA210E

Request A Quote

Yokogawa Flange Mounted Differential Pressure Transmitter 0-10MPa

Product Details

Pressure Range:

0-10MPa

Output:

4-20m

Power Supply:

12-36VDC

Highlight:

10MPa Differential Pressure Transmitter, Field Measuring Instrument Differential Pressure Transmitter, Flange Mounted Differential Pressure Transmitter

Highlight:

flange mounted pressure transmitter

differential pressure sensor 10MPa

precision pressure transmitter flange

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer LCT216 Digital Timer Tachometer Counter Industrial Multifunction

Get Best Price

UT35A UT32A Temperature Controller with Color LCD Display

Get Best Price

Kromschroder Tightness Control Unit 220-240V AC for Gas Burner Systems

Get Best Price

86--17719566736

Contact Now

Product Description

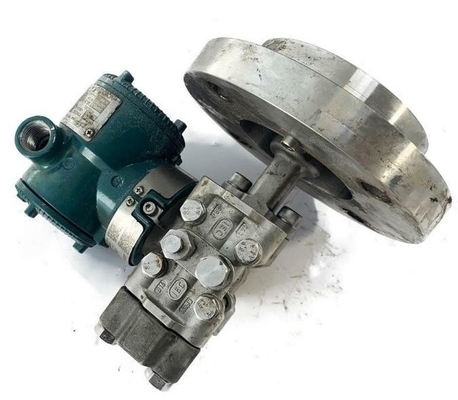

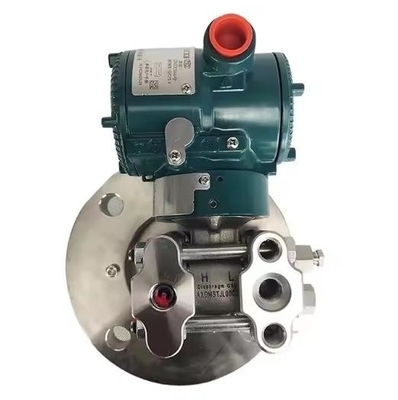

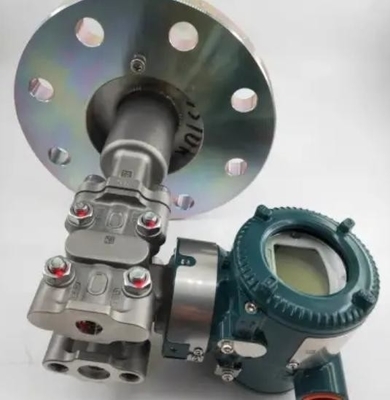

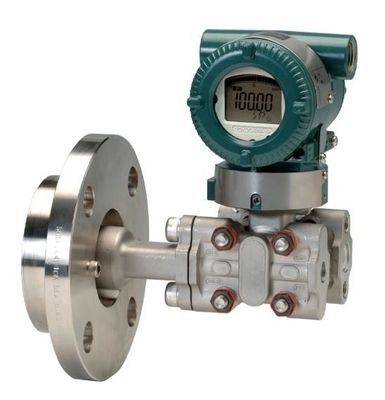

Yokogawa Flange Mounted Differential Pressure Transmitter

10MPa differential pressure transmitter, field measuring instrument differential pressure transmitter, flange mounted differential pressure transmitter

Attribute	Value
Pressure Range	0-10MPa
Output	4-20mA
Power Supply	12-36VDC

Product Introduction

Yokogawa's flange mounted differential pressure transmitter is a 100% new original field measuring instrument, equipped with the advanced DPharp sensor. This sensor has the unique capability to measure three key process parameters with a single unit: differential pressure (DP), static pressure (SP), and sensor temperature.

Leveraging these three sets of process data, the transmitter can perform real-time dynamic compensation for temperature effects and static pressure effects in differential pressure measurements. This dynamic compensation significantly enhances the accuracy of DP measurements, making the transmitter highly reliable for field measurement applications. It is designed to operate within a pressure range of 0-10MPa, ensuring it can handle various industrial pressure measurement scenarios.

Product Features

Multi-Parameter Measurement with Single Sensor: The DPharp sensor can measure differential pressure (DP), static pressure (SP), and sensor temperature simultaneously, providing comprehensive process data.
Dynamic Compensation: Based on the measured DP, SP, and sensor temperature, the transmitter performs real-time compensation for temperature and static pressure effects, improving the accuracy of differential pressure measurements.
Flange Mounted Design: Specifically designed for flange mounting, making it suitable for easy installation and integration in field measuring environments.
Wide Pressure Range: Capable of measuring within a pressure range of 0-10MPa, adapting to various industrial pressure measurement requirements.

Product Parameters

Pressure Range: 0-10MPa

Output: 4-20mA

Power Supply: 12-36VDC

Sensor Type: DPharp sensor (capable of measuring DP, SP, and sensor temperature)

Key Function: Dynamic compensation for temperature and static pressure effects in DP measurements

Mounting Type: Flange mounted

Condition: 100% new original
