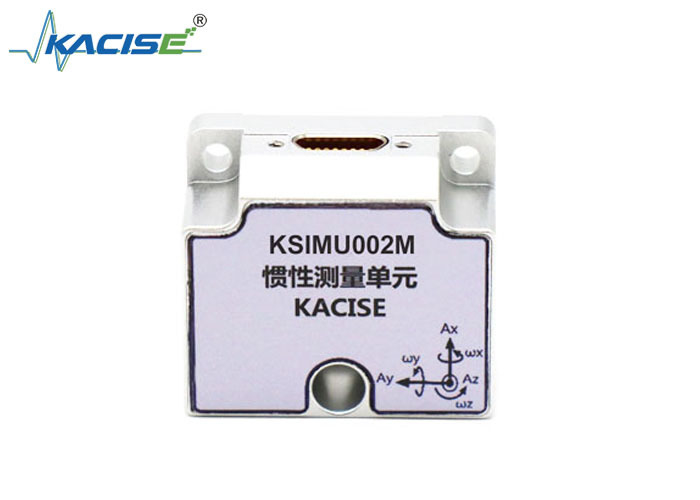

Name: KSIMU002M High Precision Inertial Measurement Unit 5V 1.5W
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSIMU002M
Price: 5,000.00 USD
Availability: InStock

Home > products > Water Quality Sensor >

KSIMU002M High Precision Inertial Measurement Unit 5V 1.5W

High Precision Inertial Measurement Unit

5V Accelerometer Sensor

1.5W Inertial Measurement Unit

Place of Origin:

CHINA

Brand Name:

kacise

Certification:

Model Number:

KSIMU002M

Request A Quote

Product Details

Voltage:

Power Consumption:

1.5W

Ripple:

100mV

Pitch Angle Accuracy(-90°~+90°):

<0.1°

Roll Angle Accuracy(-180°~+180°):

<0.1°

Highlight:

High Precision Inertial Measurement Unit

5V Accelerometer Sensor

1.5W Inertial Measurement Unit

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

KSINS003C Fiber Optic Inertial Navigation System 18-32VDC

Get Best Price

wireless 4g pond cod water quality monitoring chemical oxygen demand sensor

Get Best Price

KWS700B Digital pH Sensor for Water

Get Best Price

KWS101 Eco - efficient Water Quality Monitor

Get Best Price

86--17719566736

Contact Now

Product Description

KSIMU002M High Precision Inertial Measurement Unit

Key Specifications

Attribute	Value
Voltage	5V
Power consumption	1.5W
Ripple	100mV
Pitch Angle accuracy (-90°~+90°)	<0.1°
Roll Angle accuracy (-180°~+180°)	<0.1°

The KSIMU002M is a high-performance, compact inertial measurement device designed for precise navigation, control, and dynamic measurement applications. Built with full MEMS inertial devices and military-grade components, this unit delivers exceptional accuracy in demanding environments.

Product Features

Wide operating temperature range
Broad bandwidth capability
Compact form factor
Fast startup time
High measurement precision
Exceptional reliability and robustness
Accurate performance in harsh conditions

Applications

Automotive electronics
Aircraft guidance and control systems
Attitude reference systems
Platform stabilization
Robotics and antenna stabilization

Technical Specifications

Power Supply Parameters

Parameter	Specification
Voltage	5V
Power consumption	1.5W
Ripple	100mV

Product Performance

Parameter	Specification
Weight	55g
Pitch Angle accuracy (-90°~+90°)	<0.1°
Roll Angle accuracy (-180°~+180°)	<0.1°
Course angle (-180°~+180°)	--°

Gyroscope Specifications

Parameter	Specification
Measuring range (customizable)	±500°/s
Bias stability (@Allan variance)	0.5°/h
Random walk	0.15°/√h
Bias repeatability	10°/h
Bias acceleration sensitivity	1°/h/g
Scale factor nonlinearity (room temperature)	200ppm
Scale factor repeatability (room temperature)	200ppm
Cross coupling	0.1%
Bandwidth	250Hz

Accelerometer Specifications

Parameter	Specification
Measuring range (can be customized)	±30g
Bias stability (Allan Variance @25°C)	50μg
Bias temperature coefficient (@-45°C～+85°C)	10mg
Random walk	0.2m/s/√h
Zero bias repeatability	0.5
Scaling factor repeatability	300
Scale factor non-linearity	100
Bandwidth	100

Environmental Specifications

Parameter	Specification
Operating temperature	-45°C～+85°C
Storage temperature	-55°C～+105°C
Vibration	10~2000Hz, 6.06g
Impact	5000g, 0.1ms
