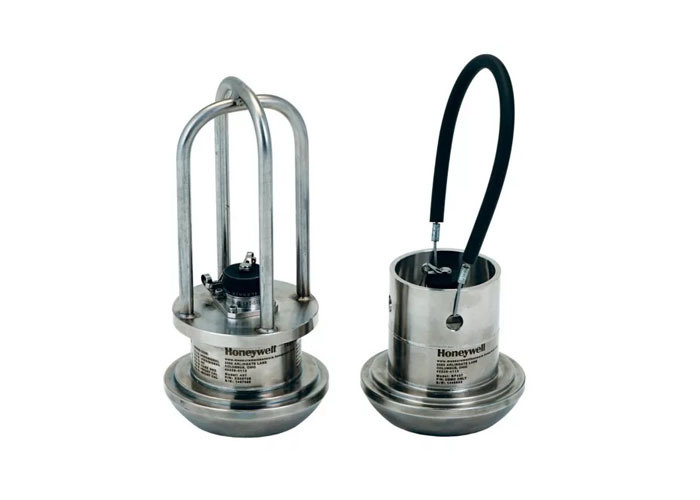

Name: Honeywell Precision Pressure Sensor with Shunt Calibration Accuracy <±0.2 %FSS 9 Vdc to 28 Vdc Supply and 4 mA to 20 mA Output（Part Number：BP434）
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Model 434
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Honeywell Precision Pressure Sensor with Shunt Calibration Accuracy <±0.2 %FSS 9 Vdc to 28 Vdc Supply and 4 mA to 20 mA Output（Part Number：BP434）

Shunt calibration accuracy Precision Pressure Sensor

9 Vdc to 28 Vdc Wing Union Pressure Sensor

4 mA to 20 mA Honeywell Pressure Sensor

Brand Name:

Honeywell

Model Number:

Model 434

Request A Quote

Product Details

Shunt Calibration Accuracy:

<±0.2 %FSS

Supply Voltage:

9 Vdc To 28 Vdc

Output Signal:

4 MA To 20 MA

Output At Null Pressure:

4 MA ±0.2 %FSS

Full Scale Span (FSS):

16 MA ±0.5 %FSS

Highlight:

Shunt calibration accuracy Precision Pressure Sensor

9 Vdc to 28 Vdc Wing Union Pressure Sensor

4 mA to 20 mA Honeywell Pressure Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

MoneyGram,Western Union,T/T,L/C,D/A,D/P

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell 434/435/437 Series Wing Union Hammer Union Pressure Transducer（Part Number：060-F827-02/060-P187-04）

Get Best Price

Honeywell Model 437 Precision Pressure Sensor with 9 Vdc to 28 Vdc Supply Voltage Stainless Steel Assembly and Inconel X-750 Wetted Diaphragm（Part Number：BP437）

Get Best Price

Honeywell Model S（Part Number ：060-1542-01G/060-1542-02G/060-1542-13G/060-1542-15G)

Get Best Price

Honeywell Model TJE Mid（Part Number ：060-0741-08TJD）

Get Best Price

86--17719566736

Contact Now

Product Description

Honeywell Model 434

Order Code: BP434EL,6,1AC,2AK,3J,6A,7AH,10J

Product Overview

Models 434/435/437 Wing Union/Hammer Union Pressure Sensors are engineered for demanding oil and gas applications including stimulation and circulation systems. Featuring an all-welded stainless steel assembly with integrated sensor diaphragm and wing union fitting, these sensors provide superior hermetic integrity and minimize media leakage compared to multi-piece designs.

Key Differentiators

High or standard accuracy options for tighter system requirements
Shunt calibration option enhances configurability and flexibility
IEC Ex approval for hazardous area use in Asia-Pacific, EMEA, and by U.S. Coast Guard
Optional protective cage available
Durable welded construction

Customer Benefits

Durable: Weco® Wing Union-compatible fittings machined from Inconel® X-750 or optional NACE-compliant Inconel® 718 for abrasive/corrosive media
Reliable: All-welded stainless steel assembly with shock/vibration ratings and isolated pressure sensing diaphragm
Accurate: High accuracy option provides confidence in measured pressure values
Global Support: Worldwide manufacturing and support for customized solutions

Applications

Acidizing, choke manifold, fracturing and cementing, measurement while drilling (MWD), mud pumps/mud logging, new well development and extraction, oil and gas drilling, service and cement trucks, standpipe, stimulation, well head measurement.

Technical Specifications

Features

Pressure ranges: 0-5000 psi to 0-20000 psi (0-350 bar to 0-1350 bar)
High accuracy ±0.1% FSS BFSL (Model 435); standard accuracy ±0.2% FSS BFSL
Standard and wide aperture pressure ports for high viscosity media
Inconel® X-750 or optional NACE-compliant Inconel® 718 wetted parts
Multiple electrical connector options
WECO® 1502, 2002, 2202 pressure connections
1-wire or 2-wire shunt calibration option
RFI/EMI protected and CE approved

Table 1. Performance Specifications
Characteristic	Parameter
Pressure ranges (Models 435/437)	0 psi to 20000 psi; 0 bar to 1350 bar
Pressure ranges (Model 434)	0 psi to 20000 psi; 0 bar to 1350 bar
Accuracy	High accuracy: ±0.1 %FSS (Model 435) Standard accuracy: ±0.2 %FSS (Models 434/435/437)
Calibration	Standard 5-point calibration: 0%, 50%, and 100% of full scale Special 10 point and 20 point calibration options available
Output	4 mA to 20 mA, two-wire
Resolution	Infinite

Table 2. Environmental Specifications
Characteristic	Parameter
Temperature, operating	-40°C to 125°C [-40°F to 257°F]
Temperature, compensating	-40°C to 85°C [-40°F to 185°F]
Temperature effect, zero	<±0.018 %FSS/°C [0.01 %FSS/°F]
Temperature effect, span	<±0.018 % reading/°C [0.01 % reading/°F]
Temperature effect, sealing	IP68 / NEMA 6P

Table 3. Mechanical Specifications
Characteristic	Parameter
Media	Corrosive and abrasive service, Inconel® X-750 or NACE-compliant Inconel® 718
Overload, safe	150% rated full scale pressure or limit of Weco® 1502 fitting
Overload, burst	250% rated full scale pressure or limit of Weco® 1502 fitting
Pressure port	Weco® 1502, 2002, and 2202 wing union, 51 mm [2 in] pipe, male sub end
Weight (approx.)	4.85 lb [2.2 kg]

Table 6. Order Guide (Sample Listings)
Order Code	Description
BP434EL,6,1AC,2AK,3J,6A,7AH,10J	Model 434, 20000 psi, ±0.2 %FSS accuracy, -40°C to 85°C [-40°F to 185°F] temperature compensation, 4 mA to 20 mA two-wire intrinsically safe, two-wire shunt calibration, Bendix PT 6-pin connector, Inconel® 718 wetted diaphragm
