Home > Products > Radar Level Transmitter >

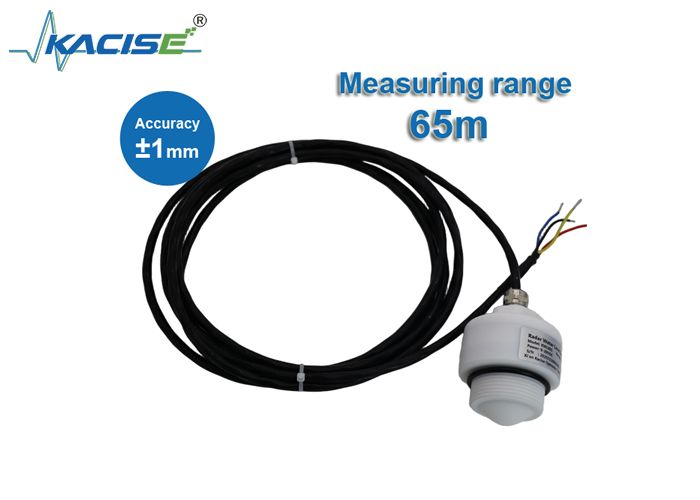

KWL801 Non-contact Radar Water Level Sensor with 76GHz-81GHz Frequency Range 65m Measuring Range and ±1mm Accuracy

KWL801 Non-contact Radar Water Level Sensor with 76GHz-81GHz Frequency Range 65m Measuring Range and ±1mm Accuracy

76GHz-81GHz Radar Water Level Sensor

65m Water Level Meter

±1mm Liquid Level Measuring Instrument

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KWL801

Contact Us
Request A Quote
KWL801 Non-contact Radar Water Level Sensor with 76GHz-81GHz Frequency Range 65m Measuring Range and ±1mm Accuracy KWL801 Non-contact Radar Water Level Sensor with 76GHz-81GHz Frequency Range 65m Measuring Range and ±1mm Accuracy KWL801 Non-contact Radar Water Level Sensor with 76GHz-81GHz Frequency Range 65m Measuring Range and ±1mm Accuracy KWL801 Non-contact Radar Water Level Sensor with 76GHz-81GHz Frequency Range 65m Measuring Range and ±1mm Accuracy
Product Details
Cable:
Cable Length 10m
Frequency Range:
76GHz-81GHz
Measuring Range:
65m
Measurement Accuracy:
±1mm
Communication Method:
4-20mA/HART /RS485/ MODBUS
Power Supply Range:
18-28V DC
Highlight:

76GHz-81GHz Radar Water Level Sensor

,

65m Water Level Meter

,

±1mm Liquid Level Measuring Instrument

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price FUEL GAUGE Gauge meter Liquid meter Tank water Level Meter anticorrosion rod radar level gauge online

FUEL GAUGE Gauge meter Liquid meter Tank water Level Meter anticorrosion rod radar level gauge

Get Best Price
Good price Oil diesel fuel tank radar level sensor meter gauge with output signal 4-20mA or HART or RS485 online

Oil diesel fuel tank radar level sensor meter gauge with output signal 4-20mA or HART or RS485

Get Best Price
Good price KLD-2602 RS485 Modbus Radar Level Meter with measuring Range 30 meters online

KLD-2602 RS485 Modbus Radar Level Meter with measuring Range 30 meters

Get Best Price
Good price solid measuring instrument level sensor radar for tank and bin online

solid measuring instrument level sensor radar for tank and bin

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description
KWL801 Radar Water Level Sensor
The KWL801 radar water level meter is a non-contact liquid level measuring instrument utilizing high-frequency millimeter wave technology, engineered for high-precision water level monitoring applications. Featuring advanced FMCW (frequency modulated continuous wave) radar technology, it delivers exceptional measurement accuracy, strong interference resistance, and excellent environmental adaptability. Ideal for water conservancy, urban drainage systems, and industrial process control.
The antenna incorporates a high-performance circular polarization common design, with integrated housing and antenna for enhanced airtightness. Bluetooth wireless technology enables safe, convenient on-site configuration and maintenance via intuitive mobile software interfaces.
KWL801 Non-contact Radar Water Level Sensor with 76GHz-81GHz Frequency Range 65m Measuring Range and ±1mm Accuracy 0
Key Features
  • Shorter wavelength for better signal reflection and small beam angle
  • Compact integrated lens design with minimal interference
  • Small blind spot, optimized for short-distance measurements
  • High signal-to-noise ratio for reliable performance in unstable conditions
  • Bluetooth wireless communication for convenient maintenance
  • Easy installation with concentrated energy beam
Technical Specifications
Model 4-20mA Water Level Sensor RS485 Water Level Sensor

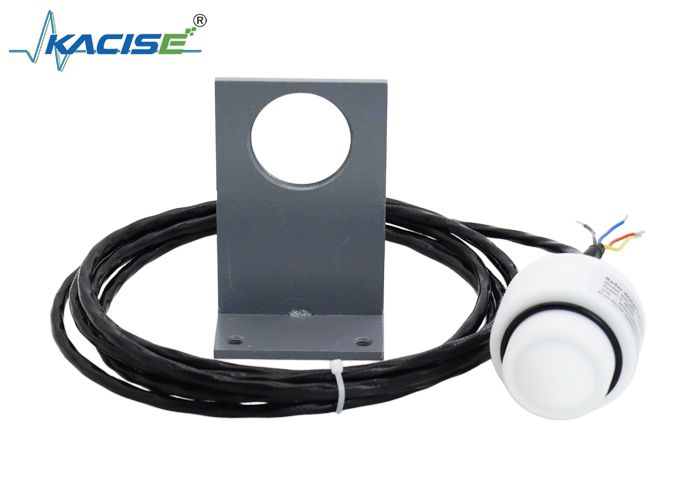

Installation method bracket, thread bracket, thread
Frequency range 76GHz-81GHz 76GHz-81GHz
Measuring range 65m 65m
Measurement accuracy (±1mm) (±1mm)

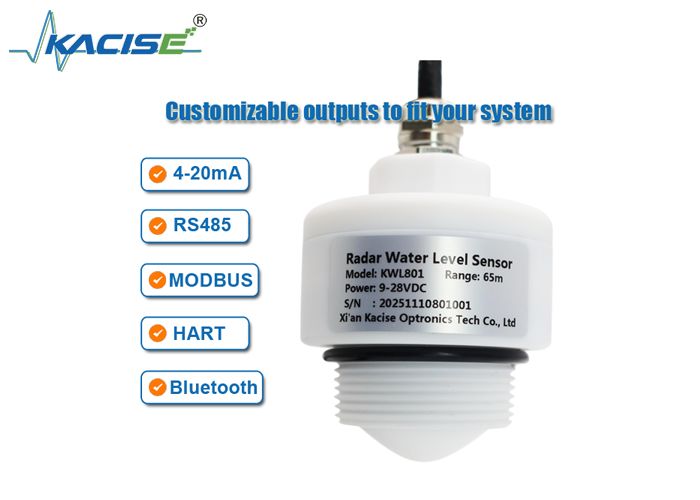

Communication method 4-20mA/HART RS485/ MODBUS
Power supply range 18-28V DC 9-28V DC
Cable Cable length 10m Cable length 10m
Shell material Aluminum alloy, stainless steel, PP stainless steel, PP
Process temperature -30~70℃ -30~70℃
Process pressure -0.1~0.1mpa -0.1~0.1mpa
Measurement interval 800ms 500ms
Maximum power consumption 4-20mA/HART(20mA) RS485/ MODBUS (15mA)
Beam angle 6° 6°
Protection level IP68 IP68
Blind area 0.1m-12m 0.3m-65m
Debug PC Host computer/IOS Android PC Host computer/IOS Android
Wireless bluetooth Bluetooth (Optional) Bluetooth (Optional)
Bluetooth range 12m 12m
Bluetooth standard Bluetooth5.0 Bluetooth5.0
Packing size 27*23*11 27*23*11

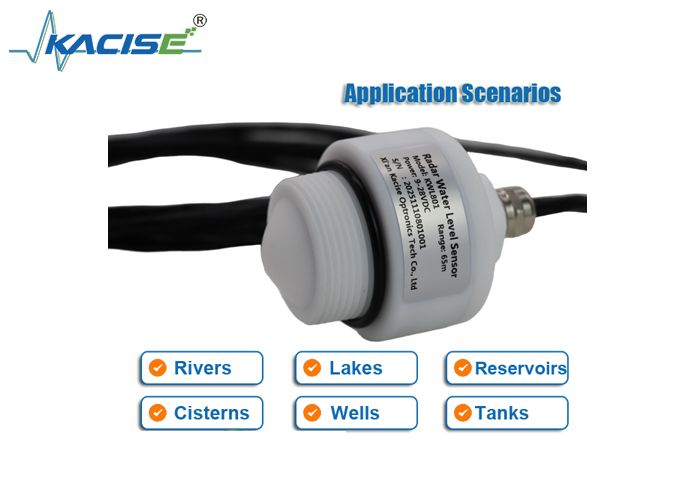

Application scope Rivers, lakes, reservoirs, cisterns, wells, tanks Rivers, lakes, reservoirs, cisterns, wells, tanks
