GXPS400 High stability gauge pressure liquid level transmitter

GXPS400 High stability gauge pressure liquid level transmitter

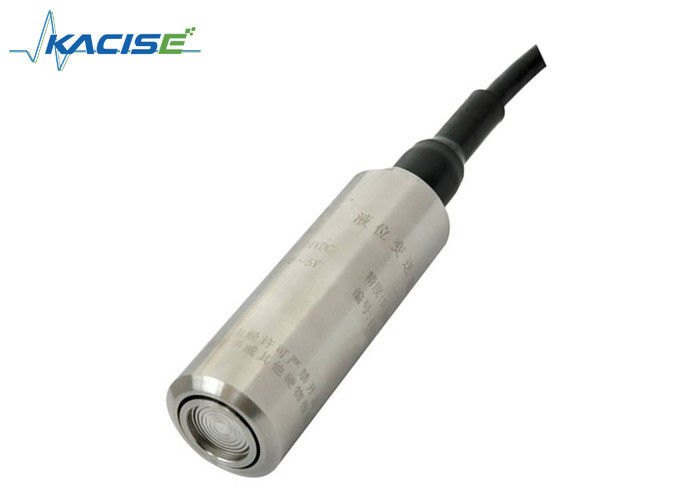

  • GXPS400  High stability  gauge  pressure liquid level transmitter

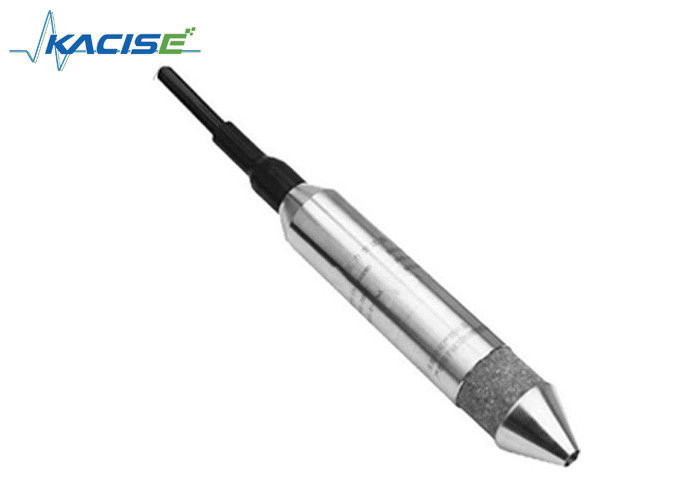

  • GXPS400  High stability  gauge  pressure liquid level transmitter

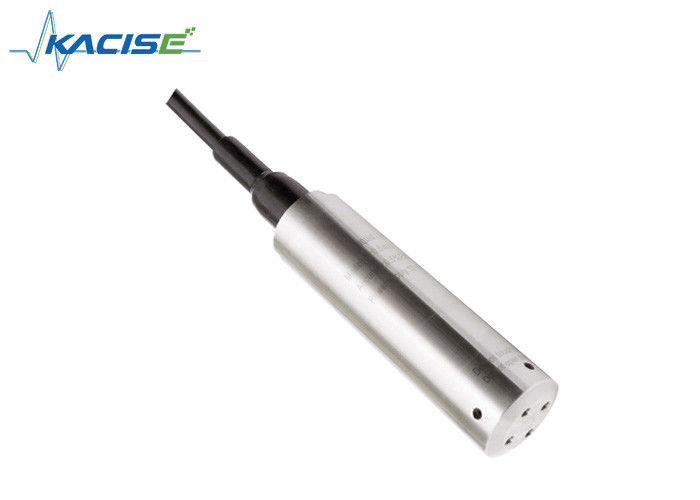

  • GXPS400  High stability  gauge  pressure liquid level transmitter
  • GXPS400  High stability  gauge  pressure liquid level transmitter
GXPS400  High stability  gauge  pressure liquid level transmitter
Product Details:
Place of Origin: China (Mainland)
Brand Name: KACISE
Model Number: KEF Series
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: USD80-299
Packaging Details: carton or customers requests available
Delivery Time: Shipped in 7 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000Piece/Pieces per Month
Contact Now
Detailed Product Description
Product Name: Level Transmitter Pressure Range: 0~1.........1400inchHg
Overload Pressure: 1.5times Rated Pressure Secondary Containmentnt: 3 Times Rated Pressure
Accuracy: ±0.25%F.S, ±0.5%F.S, ±1.0%F.S Compensation Temperature: -10°C~70°C
Operating Temperature: -40°C~85°C Or -40 °C ~125 °C Stability: Typical Value: 0.1%F.S Max.: 0.2% F.S/year
High Light:

ultrasonic fluid level sensor

,

ultrasonic level transmitter

transmitter Features link

Product Description

level transmitter66

Introduction

GXPS400 series level transmitter is a special structure and use of products, high precision, small size and good stability. Special strong cables for corrosive, abrasive, and chemical environment are offered according to filed environment.

Customized solutions for various fluids can be supplied.

Parameter

Spec.

Numerical value

Pressure range



0~1……500mH2O

9.8KPa…4900KPa

0.09bar…49bar

0.09atm…48atm

1.4psi… 711psi

2.8inchHg…1400inchHg

Overload pressure

1.5 times nominal value

Rupture pressure

3 times nominal value

Accuracy

±0.25%F.S,±0.5%F.S

Stability

Typical value 0.25%F.S,     Max. value:0.4%F.S

Operating temperature

-40°C~85°C (or -40°C~125°C)

Compensation temperature

-10°C~70°C

Medium

All Caustic Medium Compatible with 1Cr18Ni9Ti

Electrical performance

2 line

3 line

4 line

Output signal

4~20mA

0~20mA

0~5V

0.5~4.5V

0~20mA





0~10Vdc

1~5V

0.5~3V

0~5/10Vdc

Power supply

10~30Vdc

11~30Vdc

8~24Vdc

5V Ratio

8/11~30Vdc

Load resistance

(U-10)/0.02(Ω)

Current:(U-12)/0.02(Ω);   voltage :>20KΩ

Insulation

>100MΩ @50V

Electrical Connections

500V@1 second

Electrical connection

waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue   protection grade : IP68

Electromagnetic compatibility

electromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2

Response time

10ms

Certificate

Intrinsically safe mode E, explosion proof type D, CE

EMI/EMC

EMI: EN50081-1/-2; EMC: EN50082-2

Production Flow

pressure transmitter  (3)

Packaging & Shipping

QQ20180118110805

Cases

cases pressure

Certificates

certificate_v1.2

Company Information



company show

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Our Services



  • Your inquiry will be replied in 24hours.
  • Well-trained and experienced staffs to answer all your enquires in fluent English.
  • OEM&ODM, we can help you to design and your request will be put into product.
  • Distributorship are offered for your unique design and some our current models.
  • Protection of your sales area, ideas of design and all your private information.
  • Discounts are offered based on order quantities.
  • We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
FAQ



1. Q: What information need to be provided to choose the suitable model?

    A: Please provide us: application fieldpipe size , pipe materialmedium( liquid type),

         temperatureinstallation method, so we can choose model and quote for you quickly.

2.Q: May I put my own logo on the product?

A: Sure. Logo can be printed on the housing, and company name can be engraved on  the nameplate.

3.Q: How about the quality control?

A: All products will be tested for 3 times before packed.

4.Q: May I release trial order, 1 pc for example?

A: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.

5.Q: Could you design according to my requirements?

A: Of course, our team will design for you, to make our GXPS400 level transmitter work perfectly at your end.
