Place of Origin:
China (Mainland)
Brand Name:
KACISE
Certification:
CE
Model Number:
KLD60 series

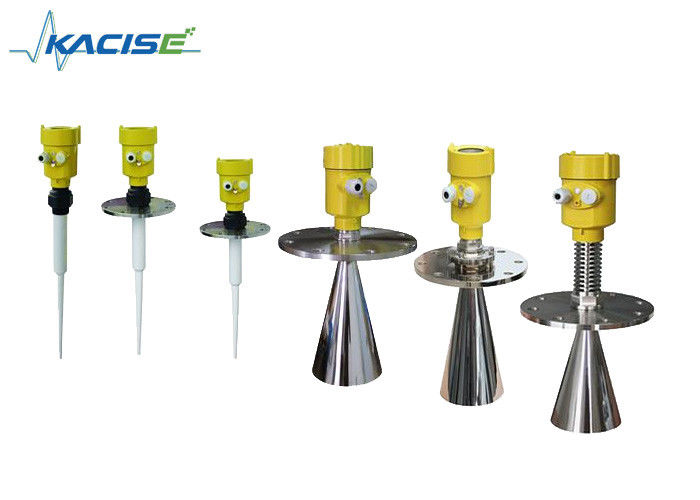

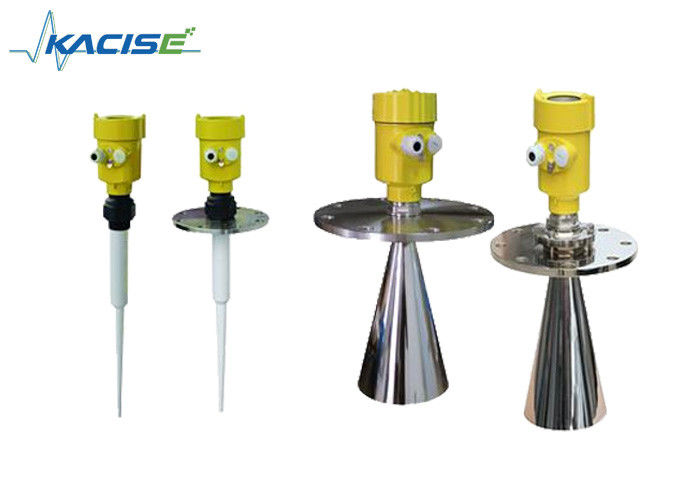

Radar level meter measures the distance between radar to object by electromagnetic wave, then calculate the object height through radar installation height.
Radar liquid level meter is for measuring liquid level, radar material level meter is for measuring solid level, they are generally called radar level meter.
The accuracy of radar level meter is not affected by temperature and pressure. It is the ideal instrument for measuring liquid and solid level in complex application field.
Parameters

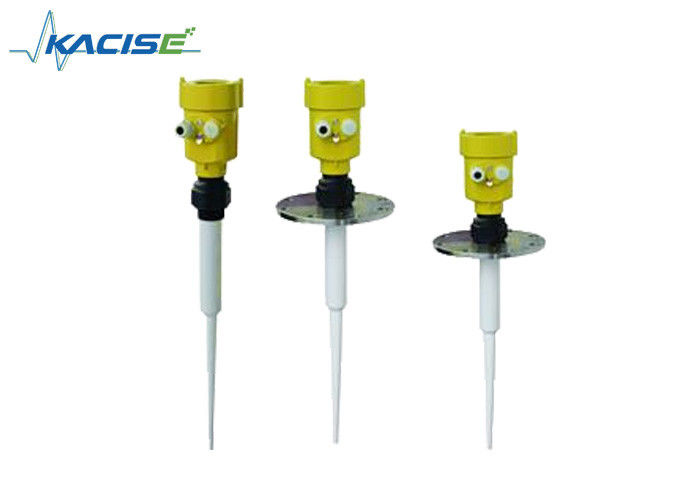

| Suitable for Medium | Strongly corrosive liquid |
| Application | HCl tank, H2SO4 tank, HF tank, etc. |
| Explosion-proof Grade | Exia IICT6 Gb |
| Measuring Range | ≤20m |
| Aerials | Rod antenna |
| Process Temperature | (-40 ~ 130) ℃ |
| Process Pressure | (-0.1 ~ 0.3) MPa |
| The signal Output | Default 4 ~ 20mA,HART is optional |
| Display | 128×64 dot matrix LCD |
| Power Supply | Default 2 wire DC24V; |
| Repeatability | ± 1mm |
| Accuracy | ＜1.0~3.0% |
| Casing | Aluminum |
| Process Connection | Flange, Min. flange is DN50 |
| Suitable for Medium | Solid particles or block, not suitable for solid powder |
| Application | Limestone, coal, ore, garbage, metal blocks, metal particles, etc. |
| Explosion-proof Grade | Exia IICT6 Gb |
| Measuring Range | ≤15m |
| Aerials | Horn antenna |
| Process Temperature | (-40 ~ 130) ℃ |
| Process Pressure | (-0.1 ~ 0.1) MPa |
| The signal Output | Default 4 ~ 20mA,HART is optional |
| Display | 128×64 dot matrix LCD |
| Power Supply | Default 2 wire DC24V; |
| Repeatability | ± 1mm |
| Accuracy | ＜1.0~3.0% |
| Casing | Aluminum |
| Process Connection | Flange, Min. flange is DN150, universal joint flange is optional |
| Suitable for Medium | Liquid, slightly corrosive liquid |
| Application | Sewage level, low volatile acid and alkali level, slurry level measurement |
| Explosion-proof Grade | Exia IICT6 Gb |
| Measuring Range | ≤20m |
| Aerials | Rod antenna |
| Process Temperature | (-40 ~ 130) ℃ |
| Process Pressure | (-0.1 ~ 0.3) MPa |
| The signal Output | Default 4 ~ 20mA,HART is optional |
| Display | 128×64 dot matrix LCD |
| Power Supply | Default 2 wire DC24V; |
| Repeatability | ± 1mm |
| Accuracy | ＜1.0~3.0% |
| Casing | Aluminum |
| Process Connection | G1½ʺ thread. Flange is optional. Min. flange is DN50 |

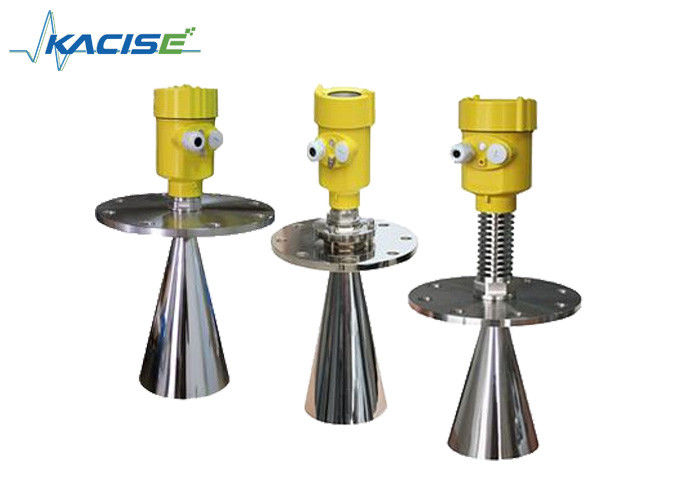

| Suitable for Medium | Liquid, especially liquid with pressure and volatility |
| Application | Crude oil, refined oil, slightly corrosive chemical liquid, etc. |
| Explosion-proof Grade | Exia IICT6 Gb |
| Measuring Range | ≤35m |
| Aerials | Horn antenna |
| Process Temperature | (-40 ~ 130) ℃ |
| Process Pressure | (-0.1 ~ 4.0) MPa |
| The signal Output | Default 4 ~ 20mA,HART is optional |
| Display | 128×64 dot matrix LCD |
| Power Supply | Default 2 wire DC24V; |
| Repeatability | ± 1mm |
| Accuracy | ＜1.0~3.0% |
| Casing | Aluminum |
| Process Connection | Flange |
| Suitable for Medium | Solid, especially suitable for high temperature conditions (not for powder) |
| Application | Blast furnace material level, lime kiln material level, metallurgical silo material level, coal furnace coal residue level measurement |
| Explosion-proof Grade | Exia IICT6 Gb |
| Measuring Range | ≤15m |
| Aerials | Horn antenna |
| Process Temperature | (-40 ~ 400) ℃ |
| Process Pressure | (-0.1 ~ 0.1) MPa |
| The signal Output | Default 4 ~ 20mA,HART is optional |
| Display | 128×64 dot matrix LCD |
| Power Supply | Default 2 wire DC24V; |
| Repeatability | ± 1mm |
| Accuracy | ＜1.0~3.0% |
| Casing | Aluminum |
| Process Connection | Flange, Min. flange is DN150, universal joint flange is optional |
