| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | Intrinsically safe mode E, CE |
| Model Number: | GXWPS400 |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 1000 Pieces per Week |
| Pressure Range: | 0~3 MH2O ...... 200 MH2O | Overload Pressure: | 1.5times Nominal Value Pressure (1.5X) |
|---|---|---|---|
| Secondary Containment: | 3times Nominal Value Pressure (3X) | Accuracy: | ±0.5%F.S |
| Stability: | Typical Value 0.1%F.S, Max. Value: 0.2%F.S | Operating Temperature: | -40°C~85°C |
| Compensation Temperature: | -10°C~70°C | Output Signal: | 4~20mA, 1~5V, 0.5~4.5V |
| Power Supply: | 10~30Vdc, 8~30Vdc, 5V(ratio) | Pressure Port: | M20×1.5, G1/4, G1/2, R1/2, NPT1/2 |
| High Light: | ultrasonic level transmitter,ultrasonic liquid level sensor |
||
1. Product Description

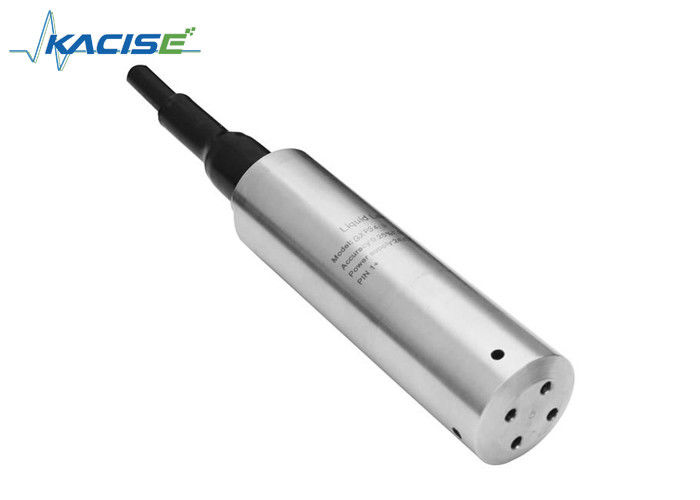

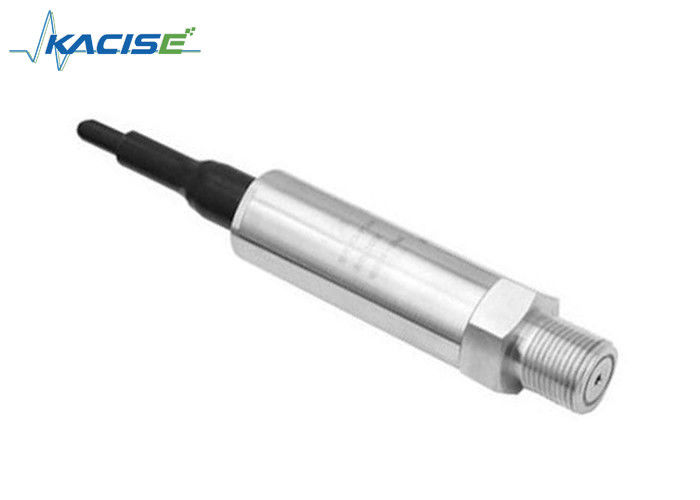

The GXWPS400 Series is the simultaneous measurement of temperature and pressure transmitters.
Having the characteristics of high reliability, high stability, high accuracy. Widely used in gas, liquid pressure detection, such as water, oil, mild corrosive liquids and gases. The product uses a precise calibration 1Cr18Ni9Ti stainless steel structure, oil-filled pressure core selection of well-known international brands, a dedicated programmable transmitter conversion circuit, and can facilitate its zero and full scale. Two-wire the Circulation output; three-wire voltage and current output.
Abrasion, oil, acid and alkali resistant, high-strength special breathable cable can be used depending on site configuration.
2. Parameter
| Spec. | Value | |||
| Pressure range | 0~3 mH2O ...... 200 mH2O | |||
| Temperature range | -40°C~85°C | |||
| Load pressure | 1.5times nominal value pressure (1.5X) | |||
| Rupture pressure | 3times nominal value pressure (3X) | |||
| Accuracy | ±0.5%F.S | |||
| Stability | Typical value 0.1%F.S, Max. value: 0.2%F.S | |||
| Operating temperature | -40°C~85°C | |||
| Compensation temperature | -10°C~70°C | |||
| Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | |||
| Electrical performance | 2 wire system | 3 wire system | ||
| Output signal | 4~20mA | 1~5V | 0.5~4.5V | |
| Power supply | 10~30Vdc | 8~30Vdc | 5V(ratio) | |
| Load pressure | (U-10)/0.02(Ω) | ＞100kΩ | ||
| Insulation | ＞100M Ω@50V | |||
| Electrical connection | waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68 | |||
| Pressure port | M20×1.5, G1/4, G1/2, R1/2, NPT1/2 | |||
| Pressure type | G, S | Response time: 10ms | ||
| Certificate | Intrinsically safe mode E, CE | |||
| EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | |||
| Electric connection | ||||
| Plug | Two wire | Cable | Three wire | Cable |
| 1 | Power | Red | Power | Red |
| 2 | Output | Blue/green | Power ground | Black |
| 3 | Output | Blue/green | ||
| 4(E) | Shield | Yellow | Shield | Yellow |
| Output signal | |
| Two wire | 4~20mA |
| Three wire | 4~20mA, 0~20mA |
| 0~5V, 0.5~4.5V, 1~5V,0~10V(dc) | |
3. Feature
4. Application Field
