Factory Supply 4-20ma Generator Fuel Level Sensor Digital Water Pressure Sensor

Factory Supply 4-20ma Generator Fuel Level Sensor Digital Water Pressure Sensor

    • Factory Supply 4-20ma Generator Fuel Level Sensor Digital Water Pressure Sensor
    • Factory Supply 4-20ma Generator Fuel Level Sensor Digital Water Pressure Sensor
    • Factory Supply 4-20ma Generator Fuel Level Sensor Digital Water Pressure Sensor
    • Factory Supply 4-20ma Generator Fuel Level Sensor Digital Water Pressure Sensor
  • Factory Supply 4-20ma Generator Fuel Level Sensor Digital Water Pressure Sensor

    Product Details:

    Place of Origin: China (Mainland)
    Brand Name: Kacise
    Certification: certificate of explosion-proof, CE
    Model Number: GXPS400

    Payment & Shipping Terms:

    Minimum Order Quantity: 1ps
    Price: Negotiable
    Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
    Delivery Time: 5-8 work day
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
    Supply Ability: 1000 Pieces per Week
    Contact Now
    Detailed Product Description
    Accuracy: ±0.25%F.S, ±0.5%F.S, ±1.0%F.S Stability: Typical Value: 0.1%F.S Max.: 0.2% F.S/year
    Operating Temperature: -40°C~85°C Or -40 °C ~125 °C Pressure Range: 0~1...500mH2O
    Overload Pressure: 1.5times Rated Pressure Secondary Containment: 3 Times Rated Pressure
    Compensation Temperature: -10°C~70°C Pressure Interface: G1/4,input Type
    Output Signal: 4~20mA, 0~5Vdc, 1~5Vdc. 0~10Vdc Power Supply: 24VDC, 11~30Vdc, Or Customized
    High Light:

    ultrasonic fluid level sensor

    ,

    ultrasonic liquid level sensor

    Factory Supply 4-20ma Generator Fuel Level Sensor Digital Water Pressure Sensor

    1.Product Description

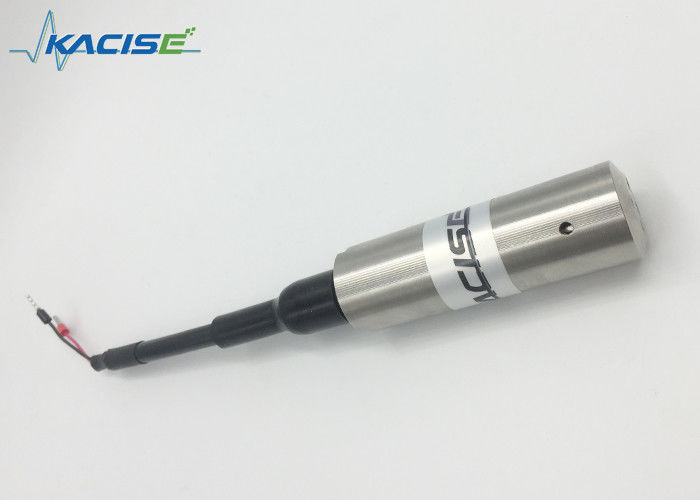

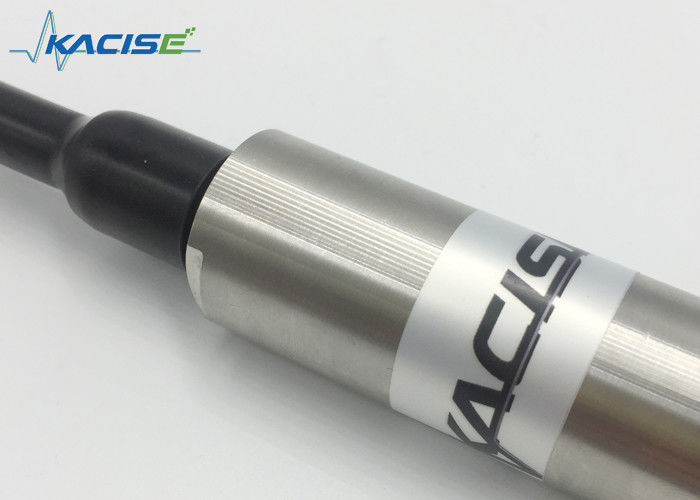

    GXPS400 series level transmitter is a special structure and use of products, high precision, small size and
    good stability. Special strong cables for corrosive, abrasive, and chemical environment are offered
    according to filed environment. The products are approved with CE, intrinsically safe and explosion-proof
    certificates. Customized solutions for various fluids can be supplied.
    Factory Supply 4-20ma Generator Fuel Level Sensor Digital Water Pressure Sensor 0

    2.Parameter


    Spec.Numerical value
    Accuracy±0.25%F.S, ±0.5%F.S, ±1.0%F.S
    StabilityTypical value: 0.1%F.S Max.: 0.2% F.S/year
    Operating Temperature-40°C~85°C or -40 °C ~125 °C
    Pressure range

    0~1……500mH2O
    9.8KPa…4900KPa
    0.09bar…49bar
    0.09atm…48atm
    1.4psi… 711psi
    2.8inchHg…1400inchHg

    Overload pressure1.5times Rated pressure
    Secondary containment3 times rated pressure
    Compensation temperature-10°C~70°C
    Medium compatibilityAll Caustic Medium Compatible with 1Cr18Ni9Ti and 316L
    Electrical properties2 line3 line
    Output signal4~20mA0~5V0~10V
    Power supplies10~30Vdc80~30Vdc/ac11~30Vdc/ac
    Load resistance(U-10)/0.02(Ω) 〉100kΩ
    Insulation 〉100MΩ@50V

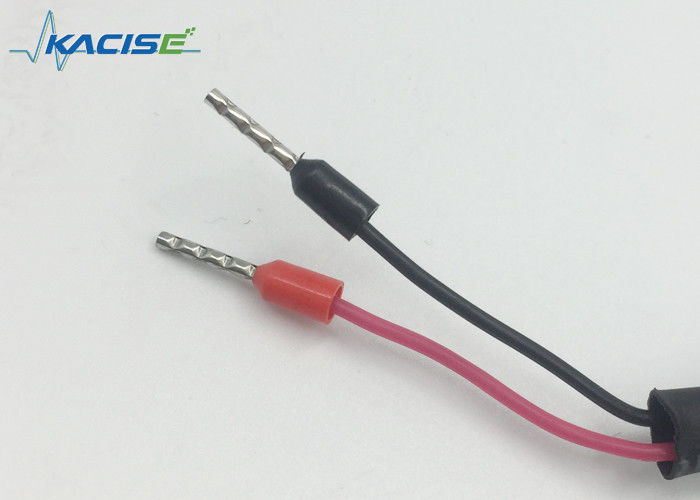

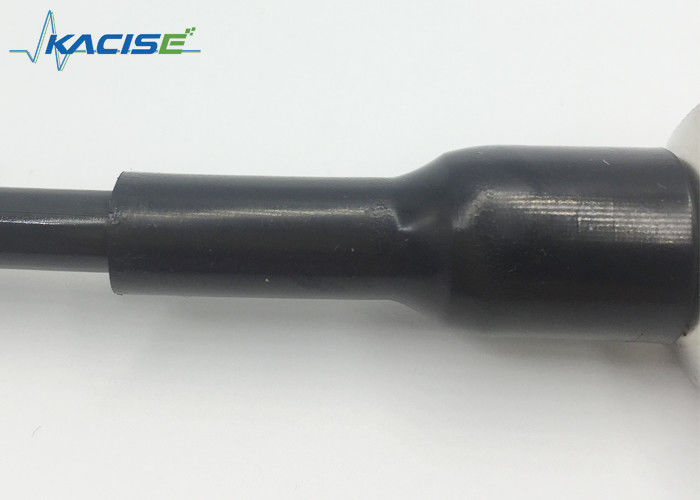

    Electrical Connectionswaterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68
    Pressure interfaceG1/4,input type
    Response time10ms
    Electric strength500Vac@1 second
    Graduate Certificate Programscertificate of explosion-proof, CE
    Electromagnetic compatibilityelectromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2
    Lightning protectionair conduction resistance 8000V,case, cable conduction


    3.Feature


    • Multiple pressure range and signal output
    • Non-polar 2 wire system current output
    • Can be used in lightning protection products
    • Diffused-Silicon oil filled core
    • All kinds of structure to satisfy different users
    • Easy to use with submersible measuring
    • Reinforcing rib for liquid cable available
    • Intrinsically safe explosion proof, Isolation explosion proof, CE
    • Four layers of waterproof protection

    Factory Supply 4-20ma Generator Fuel Level Sensor Digital Water Pressure Sensor 1

    4.Application Field


    • Cloudy level measuring
    • Fluid reservoir level measuring
    • Water-saving irrigation
    • Deep well level measuring
    • Hydrologic measurement for river, lake, sea
    • Sewage treatment
    • Circulating liquid consumption monitoring
    • Diversion project

    Our Services

    Pressure sensor can be customized by your special request, We can supply technical consulting service for your user.
    The quality principle: Quality is the best sales
    Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
    Shipping:

    1. All parts will be shipped out within 1 - 3 working days after confirm the payment
    2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
    3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.

    After-sales service

    We can offer good technical support and good warranty for you after service as professional manufacturer.
    Warranty: One year

    During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
