High accuracy Submersible Water Liquid Level Sensor Transmitter For power, pharmaceutical, water supply and drainage

High accuracy Submersible Water Liquid Level Sensor Transmitter For power, pharmaceutical, water supply and drainage

ultrasonic fluid level sensor

ultrasonic liquid level sensor

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

GXPS400

Contact Us
Request A Quote
Product Details
Overload Pressure:
1.5times Rated Pressure
Secondary Containment:
3 Times Rated Pressure
Output Signal:
4~20mA, 0~5Vdc, 1~5Vdc. 0~10Vdc
Power Supply:
24VDC, 11~30Vdc, Or Customized
Pressure Interface:
G1/4,input Type
Operating Temperature:
-40°C~85°C Or -40 °C ~125 °C
Compensation Temperature:
-10°C~70°C
Accuracy:
±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Stability:
Typical Value: 0.1%F.S Max.: 0.2% F.S/year
Pressure Range:
0~1...500mH2O
Highlight:

ultrasonic fluid level sensor

,

ultrasonic liquid level sensor

Payment & Shipping Terms
Minimum Order Quantity
0-100
Price
Negotiable
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work day
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability
1000 Pieces per Week
Product Description

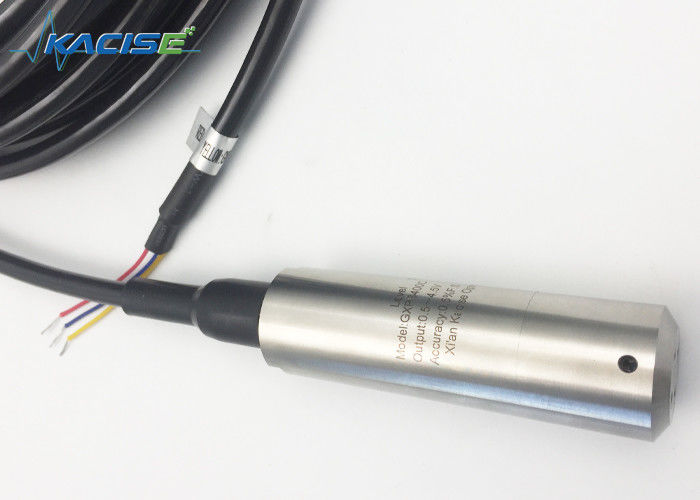

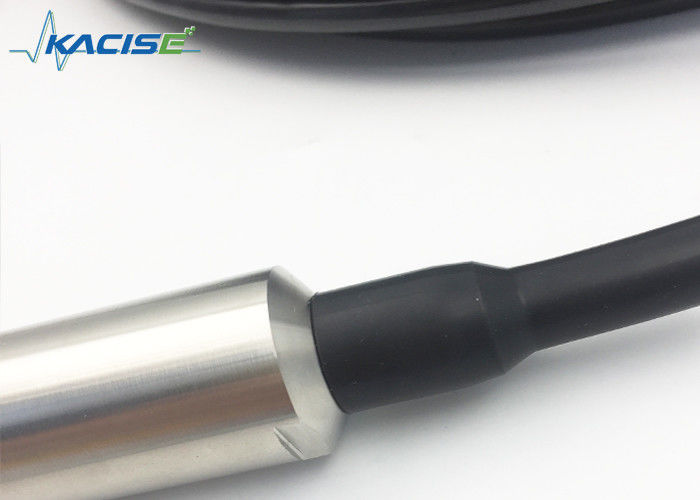

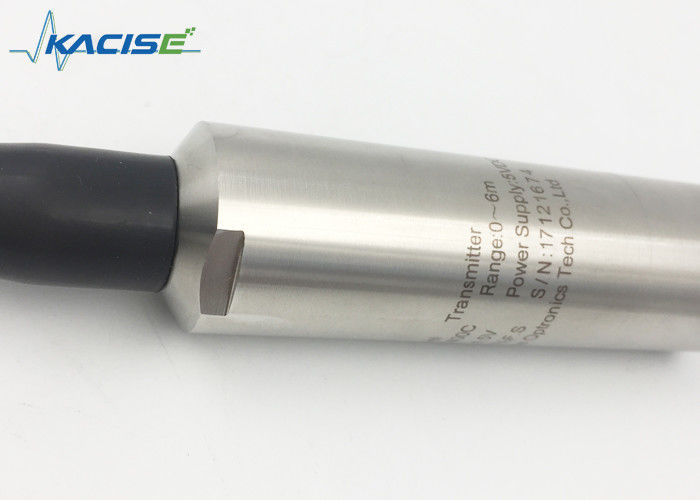

High accuracy Submersible Water Liquid Level Sensor Transmitter





1.Description



The input liquid level sensor is a type of pressure sensor designed for measuring liquid levels. Operating on the principle that the hydrostatic pressure is directly proportional to the height of the liquid, this sensor utilizes an isolated diffused silicon sensitive element or a ceramic capacitive pressure-sensitive sensor to convert the static pressure into an electrical signal. This signal is then processed through temperature compensation and linear correction to generate a standard electrical output. Typically applied in petrochemical, metallurgy, electric power, pharmaceutical, water supply and drainage, environmental protection systems, and various industries, it is well-suited for measuring liquid levels in diverse media.



The GXPS400 series level transmitter is a specialized and precision-engineered product with a compact size and excellent stability. It features a unique structure and is specifically designed for use in challenging environments, offering high precision. The transmitter comes with special robust cables tailored for corrosive, abrasive, and chemical conditions based on the specific field environment. It holds certifications for CE, intrinsically safe, and explosion-proof applications, ensuring compliance with safety standards. Customized solutions for measuring various fluids are also available.



High accuracy Submersible Water Liquid Level Sensor Transmitter For power, pharmaceutical, water supply and drainage 0



2.Parameter



Spec. Numerical value
Accuracy ±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Stability Typical value: 0.1%F.S Max.: 0.2% F.S/year
Operating Temperature -40°C~85°C or -40 °C ~125 °C
Overload pressure 1.5times Rated pressure
Secondary containment 3 times rated pressure
Compensation temperature -10°C~70°C
Pressure range

0~1……500mH2O

9.8KPa…4900KPa

0.09bar…49bar

0.09atm…48atm

1.4psi… 711psi

2.8inchHg…1400inchHg

Response time 10ms
Electric strength 500Vac@1 second
Medium compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L
Insulation 〉100MΩ@50V

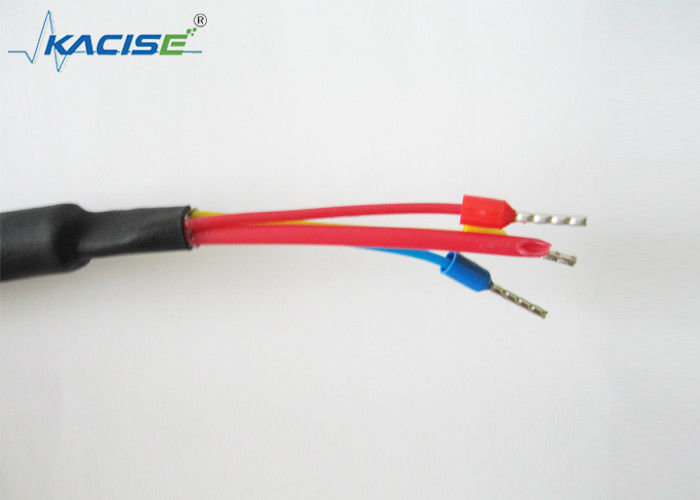

Electrical Connections waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68
Pressure interface G1/4,input type
Electrical properties 2 line 3 line
Output signal 4~20mA 0~5V 0~10V
Power supplies 10~30Vdc 80~30Vdc/ac 11~30Vdc/ac
Load resistance (U-10)/0.02(Ω)  〉100kΩ
Graduate Certificate Programs certificate of explosion-proof, CE
Electromagnetic compatibility electromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2
Lightning protection air conduction resistance 8000V,case, cable conduction
Housing material SS304,SS316,SS316L,PTEF
Cable material Polyurethane,PTEF,etc.





3.Feature



  • Reinforcing rib for liquid cable available
  • Intrinsically safe explosion proof, Isolation explosion proof, CE
  • Four layers of waterproof protection
  • Multiple pressure range and signal output
  • Non-polar 2 wire system current output
  • Can be used in lightning protection products
  • Diffused-Silicon oil filled core
  • All kinds of structure to satisfy different users
  • Easy to use with submersible measuring



4.Dimensions

High accuracy Submersible Water Liquid Level Sensor Transmitter For power, pharmaceutical, water supply and drainage 1





5.Application Field



  • Circulating liquid consumption monitoring
  • Diversion project
  • Cloudy level measuring
  • Fluid reservoir level measuring
  • Water-saving irrigation
  • Deep well level measuring
  • Hydrologic measurement for river, lake, sea
  • Sewage treatment
