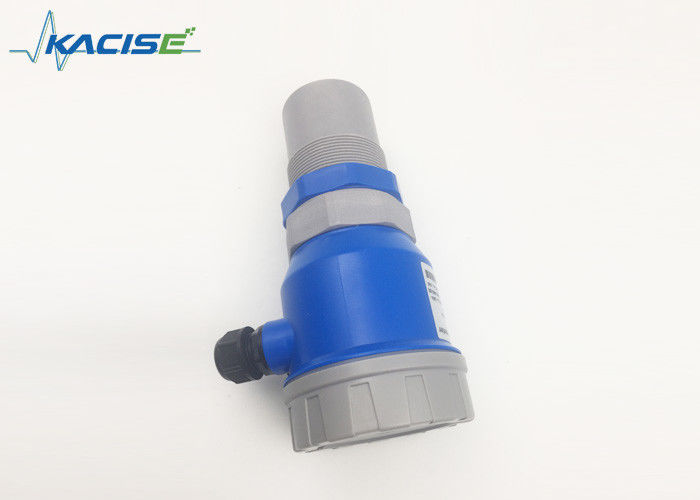

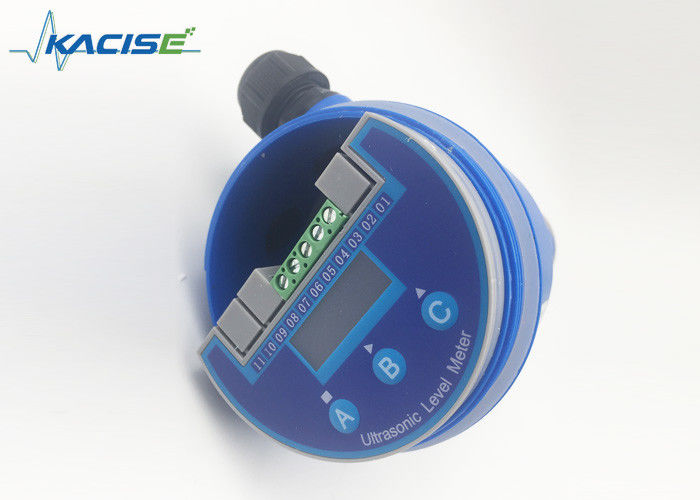

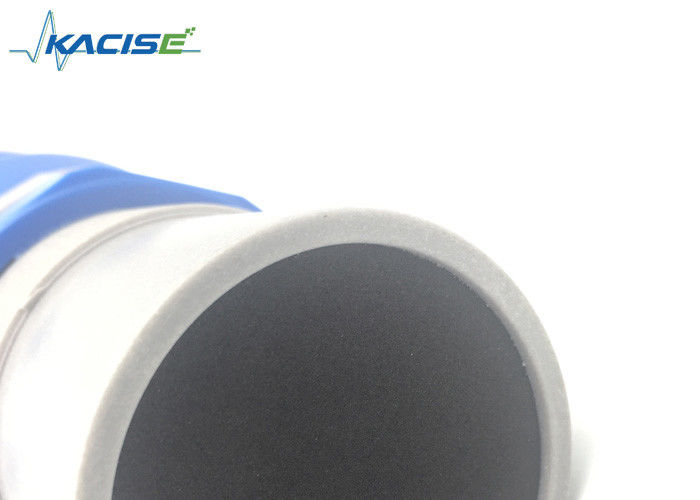

Digital 4 - 20ma Fluid Level Meter Ultrasonic Level Transmitter Low Power Consumption

Digital 4 - 20ma Fluid Level Meter Ultrasonic Level Transmitter Low Power Consumption

    • Digital 4 - 20ma Fluid Level Meter Ultrasonic Level Transmitter Low Power Consumption
    • Digital 4 - 20ma Fluid Level Meter Ultrasonic Level Transmitter Low Power Consumption
    • Digital 4 - 20ma Fluid Level Meter Ultrasonic Level Transmitter Low Power Consumption
    • Digital 4 - 20ma Fluid Level Meter Ultrasonic Level Transmitter Low Power Consumption
  • Digital 4 - 20ma Fluid Level Meter Ultrasonic Level Transmitter Low Power Consumption

    Product Details:

    Place of Origin: China (Mainland)
    Brand Name: KACISE
    Model Number: KUM

    Payment & Shipping Terms:

    Minimum Order Quantity: Piece/Piece
    Price: Negotiable
    Packaging Details: Carton or customers requests available
    Delivery Time: 5 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 10000 Piece/Pieces per Week ultrasonic sensor distance 10 meter
    Contact Now
    Detailed Product Description
    Max Measure Error: 0.3%×full Scale Range: 5m, 8m, 10m, 12m, 15m
    Blind Zone: ≤ 0.4~0.6m Output Signal: 4~20mA (default, Other Outputs Are Optional) 1~5V / 1~10V RS485 2 NPN
    Power Consumption: <1.5W Power Supply: 12-24VDC
    High Light:

    ultrasonic level transmitter

    ,

    ultrasonic liquid level sensor

    Digital 4-20ma Ultrasonic Level Meter 5-15m Ultrasonic Level Transmitter



    Product Description

    KUMA series ultrasonic level meter realizes high digital, communication between machine and human. The CPU applies import industry monolithic integrated circuit, digital temperature compensation and wide voltage input. You can select analog, switch or RS485 serial signal output. Owning the advantage that there is no need to contact the measured medium; it could supply more precise and longer work life.

    Applications

    • Proximity Detection
    • Robot range finder
    • Sedimentation pool
    • Coal washing process
    • Obstacle detection, collision avoidance
    • General-purpose distance detection
    • Wastewater treatment


    Features


    • High precise
    • Non-invasive
    • Strong anti-interference
    • Automatic temperature compensation
    • Selectable output way
    • Substantially improved long-term stability


    Parameters


    Range5m, 8m, 10m, 12m, 15m
    Blind Zone≤ 0.4~0.6m
    Max measure error0.3%×full scale
    Power supply12-24VDC
    Power consumption<1.5W
    Output signal

    4~20mA (default, other outputs are optional) 1~5V / 1~10V

    RS485 2 NPN

    2 relays (AC: 5A 250V, DC: 10A 24V)

    Max load impedance700Ω
    DisplayOLED
    Display resolution1mm
    MaterialABS, PP
    InstallationM60X2 or¢61MM
    Protection degreeIP65 (customizable)
    Humidity0 to 95%
    Ambient temperature-10℃~60℃
    Ambient pressurenormal condition


    Wiring diagrams

    A:Refer to the tags attached on the instrument for wiring.

    (This picture Reference only, for more details see wiring definitions)



    Digital 4 - 20ma Fluid Level Meter Ultrasonic Level Transmitter Low Power Consumption 0

    Wiring definitions





    Definition of lead

    pin/color


    applied


    Supply +

    ⑤DC12~24V+■Yes/□No


    Supply -

    ⑥DC12~24V-■Yes/□No



    Current output

    ⑨4~20mA□Yes/□No



    Voltage output

     □Yes/□No




    Serial output

    ③RS485(A)



    ■Yes/□No

     ④RS485(B)



    Output controlⅠ

    J1_COM ①



    □Yes/□No



    BWiring diagram of current (voltage) output connecting with secondary instrument.

                                     Level meter                                                Secondary instrument
    Digital 4 - 20ma Fluid Level Meter Ultrasonic Level Transmitter Low Power Consumption 1

    CSerial output connecting with PC

                                Power                   Level meter                     RS-485                          PC
    Digital 4 - 20ma Fluid Level Meter Ultrasonic Level Transmitter Low Power Consumption 2

    D. NPN output wiring diagram

    Conventional relay                                                                      TTL output
    Digital 4 - 20ma Fluid Level Meter Ultrasonic Level Transmitter Low Power Consumption 3
