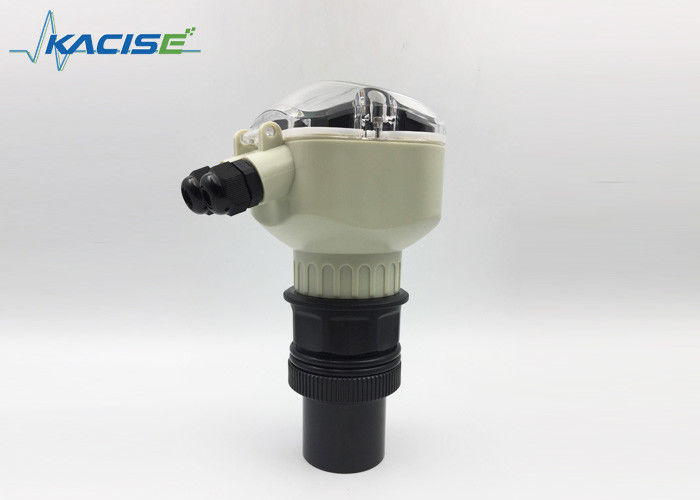

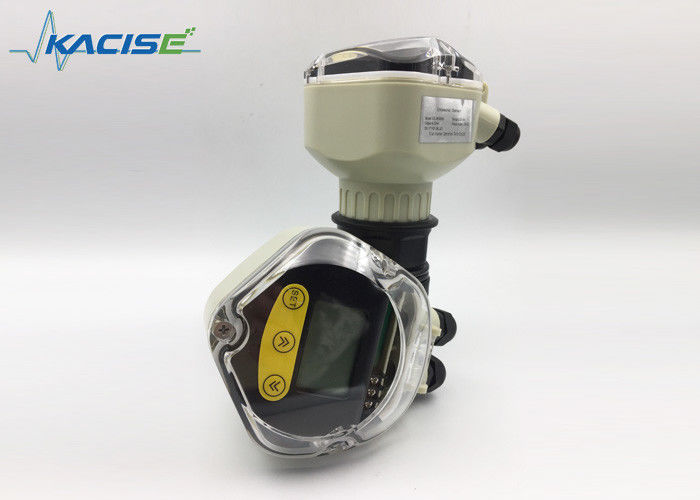

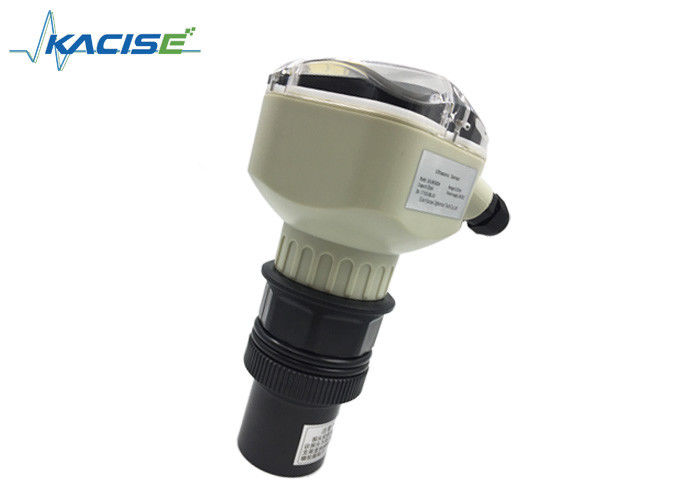

Intelligent Ultrasonic Fluid Level Sensor High Accuracy Non Contact Measurment

Intelligent Ultrasonic Fluid Level Sensor High Accuracy Non Contact Measurment

  • Intelligent Ultrasonic Fluid Level Sensor High Accuracy Non Contact Measurment
  • Intelligent Ultrasonic Fluid Level Sensor High Accuracy Non Contact Measurment
  • Intelligent Ultrasonic Fluid Level Sensor High Accuracy Non Contact Measurment
  • Intelligent Ultrasonic Fluid Level Sensor High Accuracy Non Contact Measurment
Intelligent Ultrasonic Fluid Level Sensor High Accuracy Non Contact Measurment
Product Details:
Place of Origin: China (Mainland)
Brand Name: KACISE
Model Number: KUM-C
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: Carton or customers requests available
Delivery Time: 5 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Week ultrasonic sensor distance 10 meter
Contact Now
Detailed Product Description
Measurement Accuracy: 0.5%~1% Measurement Range: 5m、10m
Resolution: 3mm Or 0.1%(The Larger One Is Effective) Display: English LCD
Analog Output: 2 Wires 4~20mA Power Supply: 24VDC
High Light:

ultrasonic fluid level sensor

,

ultrasonic liquid level sensor

4~20mA Intelligent Ultrasonic Level Meter 5-10m Ultrasonic Liquid Level Sensor

Product Description


KUM-C ultrasonic level (material place,liquid level) meter,is a non-contact, high reliability, cost-effective, easy toinstall and maintain level measurement instruments. It does not have to contact medium and it can meet most of the requirement of level measurement.



Debugging



Due to the different installation environment of instrument, so before ultrasonic level meter works we must know the basic situation of the required, such as measurement range, zero level, full scale and application field.





Features



1. easy to install and maintain.

2. big range and small blind area.

3. high accuracy

4. English and Chinese Language Display

5. Non-contact measurment

6. Support remote monitoring



Parameters



Function Integral type
Measurement range 5m,10m
Measurement accuracy 0.5%~1%
resolution 3mm or 0.1%(The larger one is effective)
display English LCD
Analog output 2 wires 4~20mA
Power supply 24VDC



Environment temperature

Display instrument-20~+60℃,

transducer-20~+80℃

Protection grade Display instrument IP65,transducer IP68
transducer cable no
Transducer installation According to the range and transducer select













Probe type

There are 6 type probes now and also there are 3 types under development.

Type1:PVDF Type2:aluminium alloy

Type3:ABS

Type4: stainless steel 316 Type5: Teflon Type6:titanium alloy

We suggest the customer describe the application field in detail, such as the media type, the pressure surrounded, the temperature and humidity. Our engineer will choose you the proper probe.



Note: This series of ultrasonic level meter can be customized according to customer demands: special specifications of transducer such as high voltage, high temperature resistant, minor-caliber, small blind area and so on.



Installation dimensions

Intelligent Ultrasonic Fluid Level Sensor High Accuracy Non Contact Measurment 0



Application



1) Distance measurement

2) Depth mesurement



Intelligent Ultrasonic Fluid Level Sensor High Accuracy Non Contact Measurment 1





Solid measurement



Installation flange



The installation method is the same as liquid measurement. It can install on the flange which joint the connected tube of container. The axis must aim to container outlet or perpendicular to the media surface, the probe should be able to come out of the connected-tube.



Intelligent Ultrasonic Fluid Level Sensor High Accuracy Non Contact Measurment 2



Opening container



As opening container, we can use the bracket to install (pay attention to the bracket’s bearing capacity), and maintain some distance between sensor and container wall. If the container wall is flat, then the distance from sensor to the container wall is in the following table:



Max range Distance Max range Distance Max range Distance
5m 0.5m 10m 1m 15m 1.5m
Max range Distance Max range Distance Max range Distance
20m 2m 30m 3m 40m 4m



Intelligent Ultrasonic Fluid Level Sensor High Accuracy Non Contact Measurment 3



Due to open containers have no focus effect, you can install the sensor in the middle of the container.

Intelligent Ultrasonic Fluid Level Sensor High Accuracy Non Contact Measurment 4





Production Flow


ultrasonic sensor.jpg



Packaging & Shipping



ultrasonic sensor.jpg



Shipping & Payment



Payment terms:



1. Samples: TT, 100% payment in advance.

2. Bulk order: TT, 30% deposit and balance 70% settled before shipment.

3. Western Union

4. L/C is available.

Trade term: FOB, CIF & EXW are available



Packaging:



Base on incasement request for the products or as customer's special requirements.



Time:



1. Samples: 2-7 working days after payment.

2. Bulk order: 20-35 working days after payment.

Methods:

1. By Express: DHL, UPS, FEDEX, EMS, a fast and safe way for shipping.

2. By Air: In some area, the shipping cost by air is more favorable than by Express.

3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choose this way.

4. Your shipping agent or forwarder.



Ordering information



Type-range relay out-Power module communication port-cable length-probe type
