| Place of Origin: | China |
| Brand Name: | KACISE |
| Certification: | CE |
| Model Number: | KUS3000-M30 |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton with bubble |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pieces per month |
| Output: | 4-20mA / 0-10V | Power Supply: | 10 ... 30 V DC |
|---|---|---|---|
| Protection Grade: | IP65 (IP67 Selectable) | Material: | Plastic Or Metal |
| Range: | 4000mm (4m) | Blind Zone: | 200 Mm |
| High Light: | ultrasonic fluid level sensor,ultrasonic level transmitter |
||
4m 4-20mA / 0-10V Distance Ultrasonic Sensor For Food Industrial
Appliactions
Food industry
Woodworking and furniture
Agriculture
Construction
Paper making
Level measuring
Mechanical engineering
Material handling
Introduction
The ultrasonic distance sensor transmits the ultrasonic pulse to the measured object, and then returns the echo formed by the measured object to the receiving sensor, so as to obtain the time difference between the transmitting and receiving, and then the distance between the transducer and the measured medium surface can be obtained according to the sound speed in the medium. So we can calculate the distance between the transducer and the reflector of the medium D=C*t/2, divided by 2 because the ultrasonic wave travels twice the distance between the transducer and the medium when it is transmitted and received. (D is distance, C is speed of sound, and t is time).

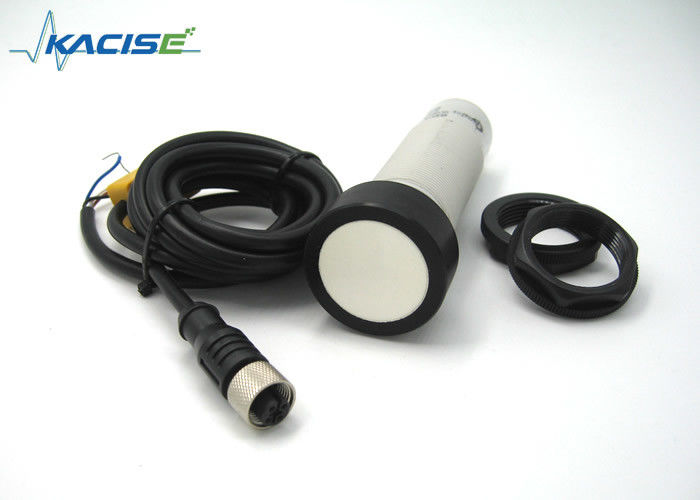

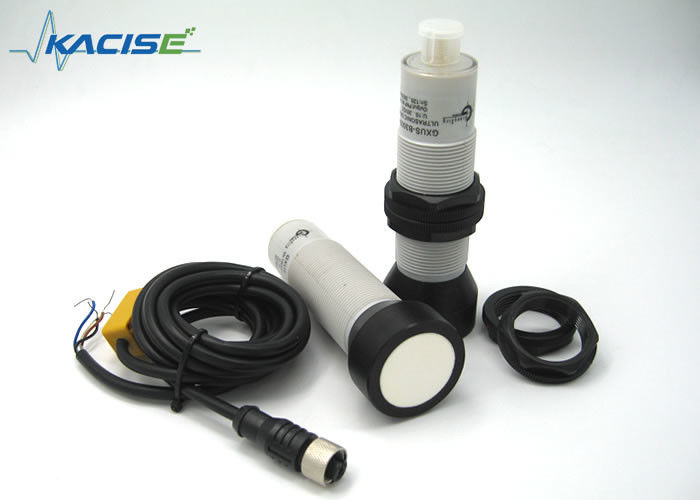

Ultrasonic distance sensor M30 adopts the principle of ultrasonic echo ranging and the accurate time difference measurement technology to detect the distance between the sensor and the target object. It has the advantages of accurate measurement, no contact, waterproof, anti-corrosion, low cost, small blind area and so on. It can be applied to the detection of liquid level and level.
Features
Measuring window adjustable
Small unusable area
Non-contact
Teachable
Dimensions
Parameters
General specifications
| Sensing range | 200 ... 4000 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx.85 kHz |
| Response delay | approx.325 ms |
Indicators/operating means
| LED blue | Power on |
| LED yellow | solid: object in the evaluation range |
| flashing: program function, object detected | |
| LED red | solid: Error |
| flashing: program function, no object detected |
Electrical specifications
| Operating voltage UB | 10 ... 30 V DC , ripple 10 %SS |
| No-load supply current I0 | ≤ 50 mA |
Output
| Output type | 1 analog output 0-10V or 4…20mA. |
| Resolution | Evaluation range [mm]/4000, but ≥0.35mm |
| Deviation of the characteristic curve | ≤0.2% from full-scale value |
| Repeat accuracy | ± 1% of full-scale value |
| Load impedance | 0…500 Ohm |
| Temperature influence | ≤ 2 % of full-scale value |
Ambient conditions
| Ambient temperature | -25 ... 70 °C |
| Storage temperature | -40 ... 85 °C |
Mechanical specifications
| Connection type | Device connector M12 x 1 , 4-pin |
| Protection grade | IP65 (IP67 selectable) |
| Material | Housing: nickel plated brass or plastic |
LED Displays
| Displays in dependence on operating mode | Red LED | Yellow LED |
|
TEACH-IN evaluation limit Object detected No object detected Object uncertain (TEACH-IN invalid) |
off flashes on |
flashes off off |
| Normal mode (evaluation range) | off | on |
| Fault | on | previous state |
Installation conditions
If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.
