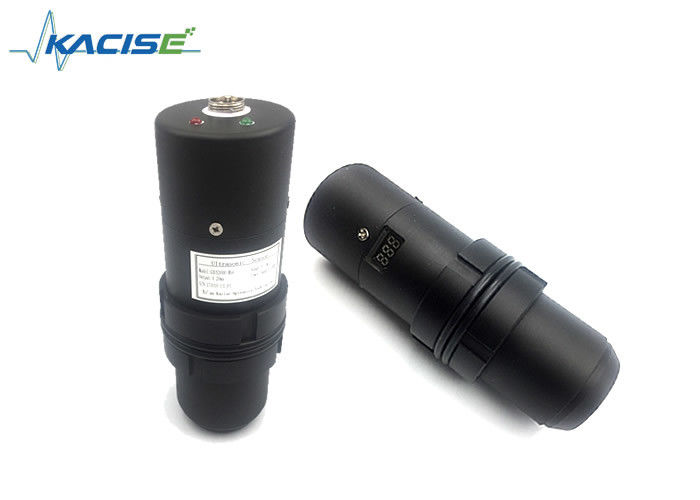

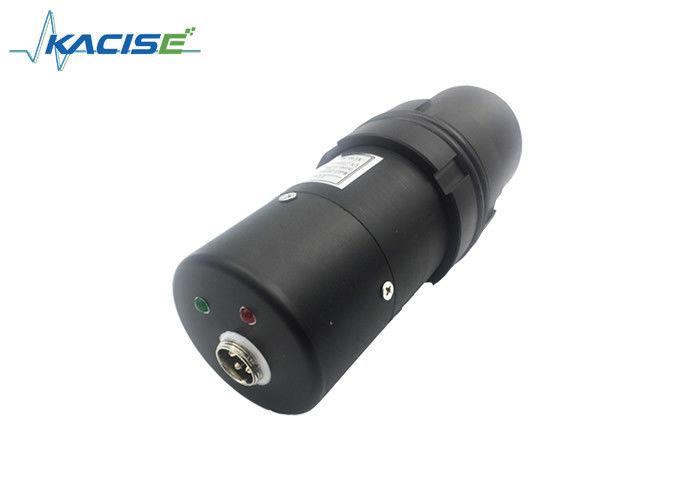

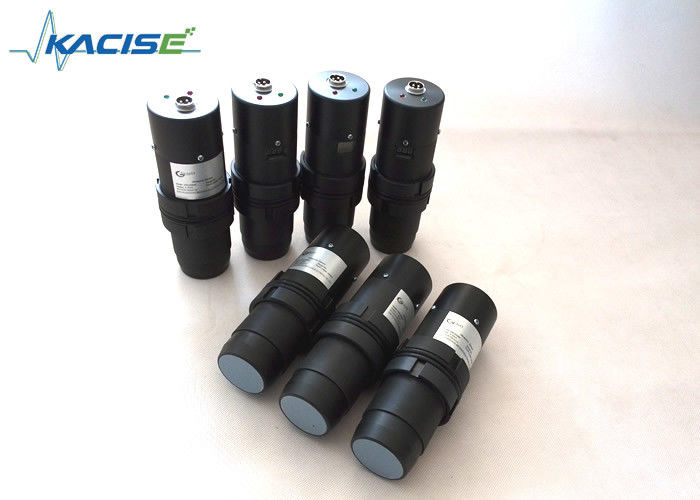

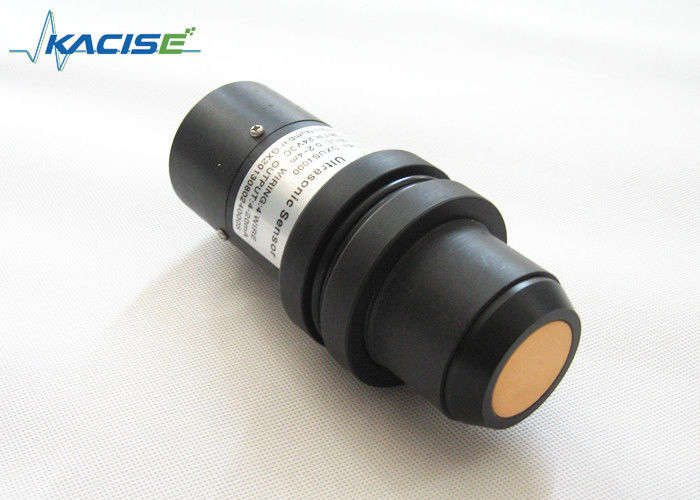

Plastic Fluid Level Meter Ultrasonic Sensor / Transmitter 0.5m - 6m Range 4 - 20mA / RS485

Plastic Fluid Level Meter Ultrasonic Sensor / Transmitter 0.5m - 6m Range 4 - 20mA / RS485

  • Plastic Fluid Level Meter Ultrasonic Sensor / Transmitter 0.5m - 6m Range 4 - 20mA / RS485
  • Plastic Fluid Level Meter Ultrasonic Sensor / Transmitter 0.5m - 6m Range 4 - 20mA / RS485
  • Plastic Fluid Level Meter Ultrasonic Sensor / Transmitter 0.5m - 6m Range 4 - 20mA / RS485
  • Plastic Fluid Level Meter Ultrasonic Sensor / Transmitter 0.5m - 6m Range 4 - 20mA / RS485
Plastic Fluid Level Meter Ultrasonic Sensor / Transmitter 0.5m - 6m Range 4 - 20mA / RS485
Product Details:
Place of Origin: China
Brand Name: KACISE
Certification: CE
Model Number: KUS-M56
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: carton with bubble
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 pieces per month
Contact Now
Detailed Product Description
Range: 0.5m - 6m Material: Plastic
Power Supply: 24 V DC Output: 4-20mA / RS485 (Modbus)
Protection Grade: IP65 (IP66 Selectable) Switch Output: Relay (optional)
High Light:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

0.5m ~ 6m Range 4-20mA / RS485 Ultrasonic Sensor / Transmitter With Display







Features



Non-contact

Short response time

Digital tube display

Various output optional: switch, analog, or RS485



Introduction



The Ultrasonic sensor uses sound waves to do non-contact and wear-free detection on target subjects. It can be used to detect either transparent or colored objects, metal objects or non-metallic objects, as well as solid, liquid or powdered substance. Ambient conditions such as environmental smoke, dust, environment or rain have very small affect on the detection performance of ultrasonic sensors.



Principle


Transmitting ultrasonic transducer emits ultrasonic pulses propagated to the measured media through communication media, through reflection and then return to the receiving transducer through the acoustic medium, the measured ultrasonic pulse propagates from the transmitter to the receiver in the acoustic medium of time. Then according to the speed of sound in the acoustic medium, it can be considered from the transducer to the media surface distance. To determine the liquid level. Therefore, we can calculate the distance from the probe to the reflecting surface D = C * t / 2 (divided by 2 is because the sound waves from the transmitter to the receiver is actually a round, D is the distance, C is the speed of sound, t is the time).



Dimensions



Plastic Fluid Level Meter Ultrasonic Sensor / Transmitter 0.5m - 6m Range 4 - 20mA / RS485 0



Parameters



Range 0.1~0.5m,0.15~1m,0.3~3m,0.4~5m,0.5~6m
Resolution 3mm or 0.1%(which is bigger)
Response time < 200ms
Display LED
Emission angle 20°
Analog output 4~20mA/500Ω LOADING
Switch output Relay(optional)
RS232/485 MODBUS protocol or customized protocol (optional)
Power supply Standard 24VDC (±15%)
Ambient temperature -20~+60℃
Protection Class IP65 (IP66 is optional)
Installation M56*2
Note: Only one output can be chose among the three kinds of outputs.
















Plastic Fluid Level Meter Ultrasonic Sensor / Transmitter 0.5m - 6m Range 4 - 20mA / RS485 1

FAQ



1. Q: What information need to be provided to choose the suitable model?

A: Please provide us: application field, range , output signal, medium, power supply, so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

A: We support T/T, PayPal and Trade Assurance.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

A: It’s a free service which can protect your orders from payment to delivery.

And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty?

A: Yes, we have the warranty of 12 months.


Plastic Fluid Level Meter Ultrasonic Sensor / Transmitter 0.5m - 6m Range 4 - 20mA / RS485 2
Plastic Fluid Level Meter Ultrasonic Sensor / Transmitter 0.5m - 6m Range 4 - 20mA / RS485 3
