Wide Range 0.5m - 70m 4-20mA / RS485 / Switch Output Ultrasonic Distance Sensor / Ultrasonic Level Sensor

Wide Range 0.5m - 70m 4-20mA / RS485 / Switch Output Ultrasonic Distance Sensor / Ultrasonic Level Sensor

  • Wide Range 0.5m - 70m 4-20mA / RS485 / Switch Output Ultrasonic Distance Sensor /  Ultrasonic Level Sensor
  • Wide Range 0.5m - 70m 4-20mA / RS485 / Switch Output Ultrasonic Distance Sensor /  Ultrasonic Level Sensor
Wide Range 0.5m - 70m 4-20mA / RS485 / Switch Output Ultrasonic Distance Sensor /  Ultrasonic Level Sensor
Product Details:
Place of Origin: China
Brand Name: KACISE
Certification: CE
Model Number: KUS / KUM Series
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: carton with bubble
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 pieces per month
Contact Now
Detailed Product Description
Range: Min. 0.5m, Max. 60m Material: Plastic / Metal
Power Supply: 24 V DC / 220V AC / Battery Output: 4-20mA / RS485 (Modbus) / Switch
Protection Grade: IP65 (IP66 Selectable) Installation: Thread Or Flange
High Light:

ultrasonic fluid level sensor

,

ultrasonic level transmitter

Wide Range 0.5m - 70m 4-20mA / RS485 / Switch Output Ultrasonic Distance Sensor / Ultrasonic Level Sensor

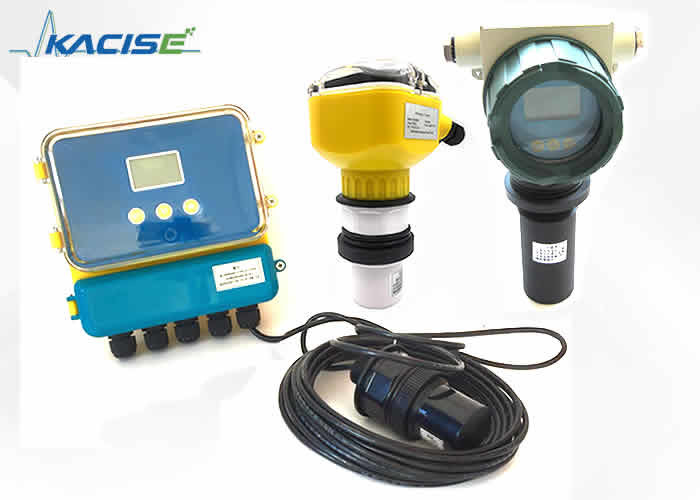

Wide Range 0.5m - 70m 4-20mA / RS485 / Switch Output Ultrasonic Distance Sensor /  Ultrasonic Level Sensor 0

Features



Non-contact measurement

Short response time

With display

Various output optional: switch, analog, or RS485

Level value output or distance output



Introduction



The Ultrasonic sensor uses sound waves to do non-contact and wear-free detection on target subjects. It can be used to detect either transparent or colored objects, metal objects or non-metallic objects, as well as solid, liquid or powdered substance. Ambient conditions such as environmental smoke, dust, environment or rain have very small affect on the detection performance of ultrasonic sensors.



Principle


Transmitting ultrasonic transducer emits ultrasonic pulses propagated to the measured media through communication media, through reflection and then return to the receiving transducer through the acoustic medium, the measured ultrasonic pulse propagates from the transmitter to the receiver in the acoustic medium of time. Then according to the speed of sound in the acoustic medium, it can be considered from the transducer to the media surface distance. To determine the liquid level. Therefore, we can calculate the distance from the probe to the reflecting surface D = C * t / 2 (divided by 2 is because the sound waves from the transmitter to the receiver is actually a round, D is the distance, C is the speed of sound, t is the time).



Parameters



Range  Min. 0.5m, Max. 60m
Resolution 3mm or 0.1%(which is bigger)
Response time < 200ms
Display Optional
Analog output 4~20mA
Switch output Relay(optional)
RS232/485 MODBUS protocol or customized protocol (optional)
Power supply 5VDC, 10~30VDC. 220VAC
Ambient temperature -20~+70℃ (-40~85℃, -55~125℃, etc, customizable)
Protection Class IP65 (IP66 is optional)














FAQ



1. Q: What information need to be provided to choose the suitable model?

A: Please provide us: application field, range , output signal, medium, power supply, so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

A: We support T/T, PayPal and Trade Assurance.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

A: It’s a free service which can protect your orders from payment to delivery.

And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty?

A: Yes, we have the warranty of 12 months.

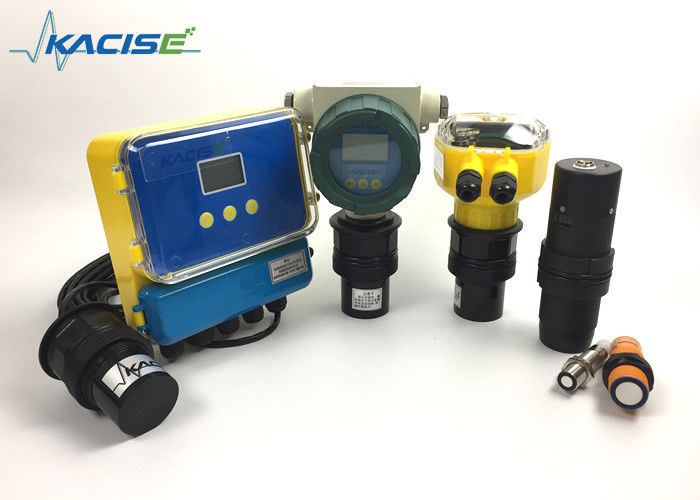

Wide Range 0.5m - 70m 4-20mA / RS485 / Switch Output Ultrasonic Distance Sensor /  Ultrasonic Level Sensor 1
Wide Range 0.5m - 70m 4-20mA / RS485 / Switch Output Ultrasonic Distance Sensor /  Ultrasonic Level Sensor 2
