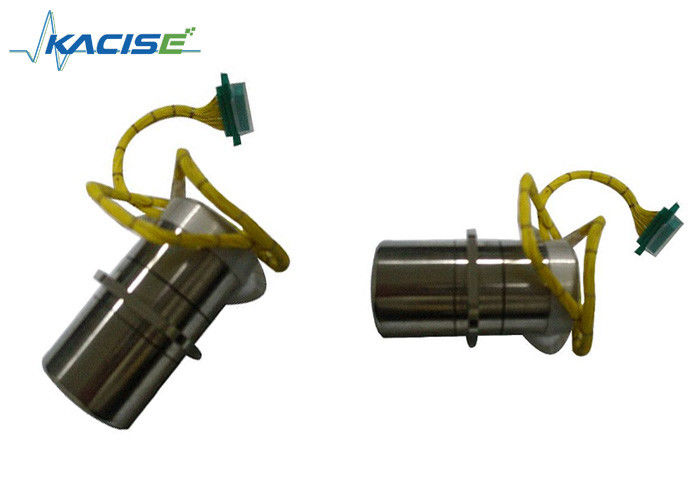

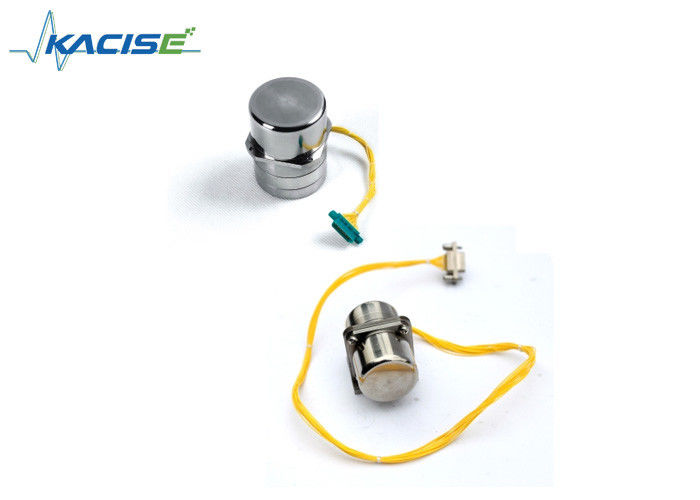

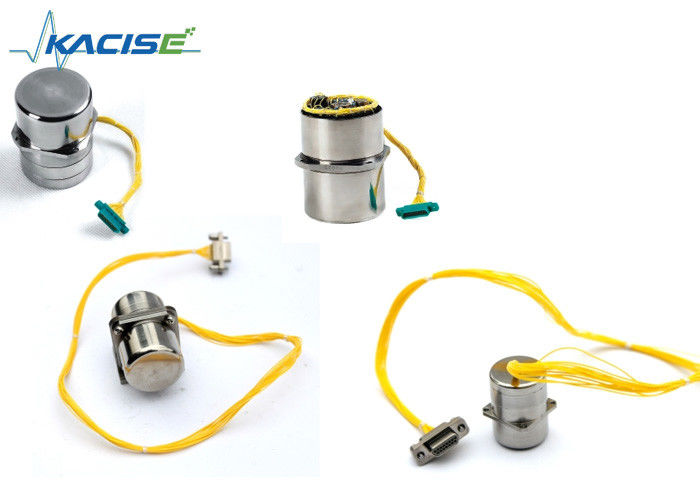

KTG-50 Dynamic Tuned Gyroscope for land strap-down system/ Signal output of dual-axis/ orientation and angular velocity

KTG-50 Dynamic Tuned Gyroscope for land strap-down system/ Signal output of dual-axis/ orientation and angular velocity

  • KTG-50 Dynamic Tuned Gyroscope for land strap-down system/	Signal output of dual-axis/ orientation and angular velocity
  • KTG-50 Dynamic Tuned Gyroscope for land strap-down system/	Signal output of dual-axis/ orientation and angular velocity
  • KTG-50 Dynamic Tuned Gyroscope for land strap-down system/	Signal output of dual-axis/ orientation and angular velocity
  • KTG-50 Dynamic Tuned Gyroscope for land strap-down system/	Signal output of dual-axis/ orientation and angular velocity
KTG-50 Dynamic Tuned Gyroscope for land strap-down system/	Signal output of dual-axis/ orientation and angular velocity
Product Details:
Place of Origin: Shaanxi, China (Mainland)
Brand Name: KACISE
Model Number: KTG-50
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: carton or customers requests available
Delivery Time: 5 working days after payment
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000 Piece/Pieces per Week negotiable
Contact Now
Detailed Product Description
Random Drift: ≤0.01°/h Power(1 Phase): 5&16000V & Hz
Drift Stability: ≤0.3°/h Non-linear: ≤0.5%F
Max Tracking Rate: ≥200°/S Band Width: ≥70HZ
High Light:

3 axis gyroscope sensor

,

gyroscope sensor module

KTG-50 High Accuracy Dynamic Tuned Gyroscope for land strap-down system

Feature



  • High accuracy
  • Long service life
  • Wide dynamic range
  • High reliability


Introduction


A Dynamically Tuned Gyroscope (DTG) is an advanced precision instrument used for measuring and maintaining orientation and angular velocity in various applications. Unlike traditional gyroscopes that rely on spinning masses for stability, a DTG employs innovative technology that dynamically adapts its resonant frequency to external forces and vibrations, enhancing accuracy and performance.



One of the key advantages of a DTG is its exceptional sensitivity and precision. It can detect even the slightest changes in orientation or angular velocity, making it suitable for a wide range of applications, including aerospace, navigation, robotics, and industrial equipment. DTGs are particularly valuable in scenarios where high accuracy and resistance to external factors such as vibrations, shocks, and temperature variations are crucial.



The KTG-50 has been utilized for water surface, land strap-down systems, fast true-north seeking, television antenna trackers, and is widely used in spaceflight strap-down inertial systems. The gyroscope can also be employed for land, sea, aviation, and space-flight transporters, as well as strap-down platform attitude systems.



Parameter



Parameter Spec. Value Unit
Power Power(3 Phase) 16&500 V & Hz
  Power(1 Phase) 5&16000 V & Hz
performance Random Drift ≤0.01 °/h
  Drift stability ≤0.3 °/h
  Non-linear ≤0.5 %FS
  Max tracking Rate ≥200 °/S
  Non-G-Sensitive Drift ≤15 °/h/g
  G-Sensitive Drift ≤8 °/h/g
  Band Width ≥70 Hz
  Torquer Scale Factor ≥680 °/h/mA
technological Sync rate 10000 r/min
  Sync Time ≤10 S
  Output gradient 10~14 mV/`
  Primary torquer 7±1 Ω
  secondary torque 2±0.5 Ω
Physical Weight ≤250 g
  Dimensions Φ50×76 mm
  Flange 52×52 mm

Working

environment

Temperature -40~65
  Vibration 5 g
  Shock ≥60 g



Installation


Products should be installed to ensure that X (Y) axis and the measurement reference axis coincides, installation error should be less than 5 '.

Operation

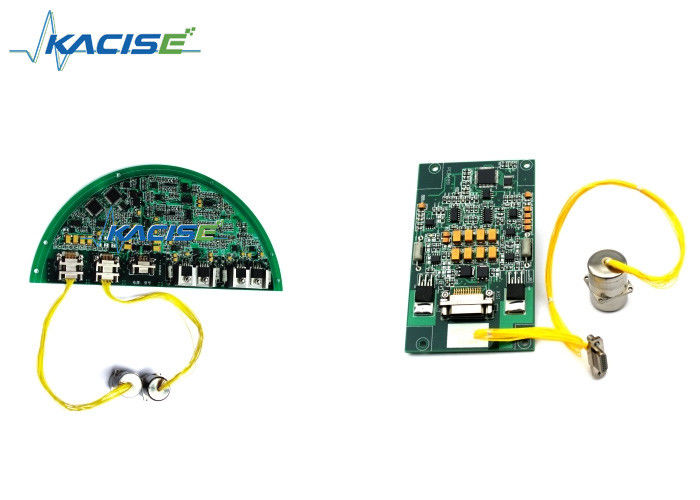

  • Only products matching the appropriate power and locked loop circuit board in order to work properly, need circuit board, please explain in advance.
  • When the product under normal use, you should turn on the power to start the motor, about 10s, and then the on-lock loop, so that the products in closed loop state; shutdown, disconnect locked loop so that the product is in the open-loop operation, and then disconnect power supply.
  • Product energized, shut down in 20s, should avoid shaking the product, the installation process should be light, light up, the product non-collision, percussion.
  • Product in the use of the process is strictly prohibited to pull the plug.
  • Product in the use of the process, can`t short circuit between external power supply.
  • Abnormality occurs during use, should immediately turn off the power, fault isolation, if the product internal fault, the customer shall promptly notify my company, my company organized by the repair.



Dimension


KTG-50 Dynamic Tuned Gyroscope for land strap-down system/	Signal output of dual-axis/ orientation and angular velocity 0KTG-50 Dynamic Tuned Gyroscope for land strap-down system/	Signal output of dual-axis/ orientation and angular velocity 1KTG-50 Dynamic Tuned Gyroscope for land strap-down system/	Signal output of dual-axis/ orientation and angular velocity 2Socket (J30J-15T) definition

Connector definition


The socket type:J30J-15T (cable length160~175mm)



NOTE: The same applies to J30J-21T, if use other socket, please explain in advance.

Pin No. Function definition Remark
1 Signal output of X-axis
2 GND For Excitation power and signals
3 X-axis torque coil(the end)
4 A phase motor driver power There-phase 16V,500Hz
5 Sensor excitation power supply Singal-phase5V,16KHz
6 Signal output of Y-axis
7 Y-axis torque coil(the beginning)
8 B phase motor driver power There-phase 16V,500Hz
9 DC+15V Power for Preamplifier
10 DC-15V Power for Preamplifier
11 X-axis torque coil(the beginning)
12 NULL
13 NULL
14 C phase motor driver power There-phase 16V,500Hz
15 Y-axis torque coil(The end)

NOTE: The same applies to J30J-21T, if use other socket, please explain in advance.
