|Place of Origin:||China (Mainland)|
|Certification:||certificate of explosion-proof, CE|
|Minimum Order Quantity:||0-100|
|Packaging Details:||each unit has individual box and all boxes are packed in standard packages or customers requests available|
|Delivery Time:||5-8 work day|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal|
|Supply Ability:||1000 Pieces per Week|
|Accuracy:||±0.25%F.S, ±0.5%F.S, ±1.0%F.S||Stability:||Typical Value: 0.1%F.S Max.: 0.2% F.S/year|
|Operating Temperature:||-40°C~85°C Or -40 °C ~125 °C||Pressure Range:||0~1...500mH2O|
|Overload Pressure:||1.5times Rated Pressure||Secondary Containment:||3 Times Rated Pressure|
|Compensation Temperature:||-10°C~70°C||Pressure Interface:||G1/4,input Type|
|Output Signal:||4~20mA, 0~5Vdc, 1~5Vdc. 0~10Vdc||Power Supply:||24VDC, 11~30Vdc, Or Customized|
ultrasonic level transmitter,
ultrasonic liquid level sensor

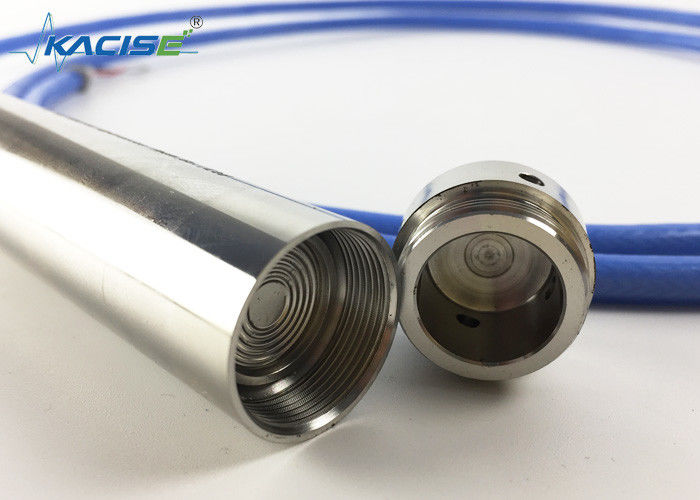

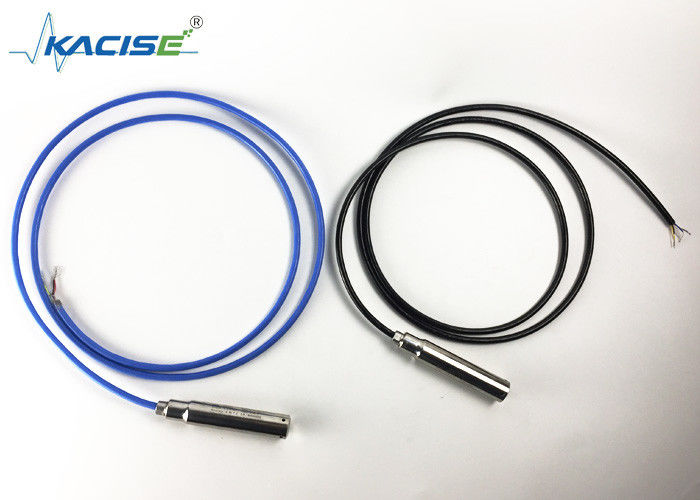

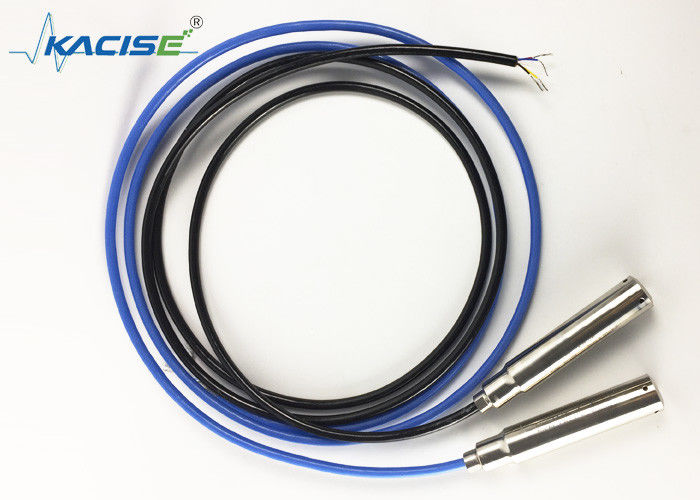

Submersible Chemical strong Corrosive Liquid Level Sensor Water Pressure Sensor
GXPS400 series level transmitter is a special structure and use of products, high precision, small size and

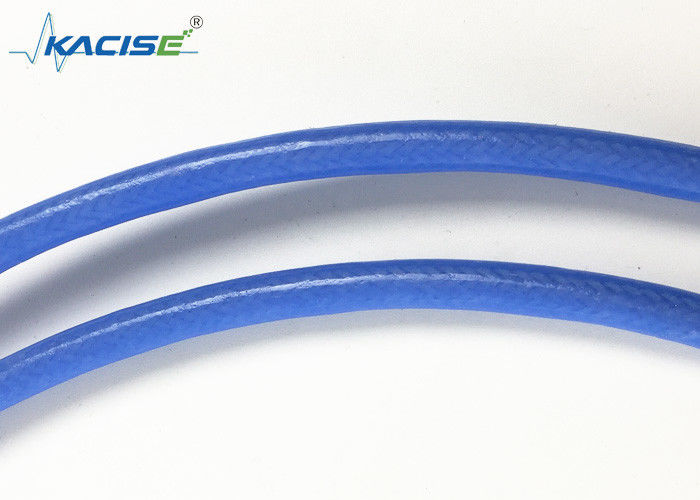

good stability. Special strong cables for corrosive, abrasive, and chemical environment are offered
according to filed environment. The products are approved with CE, intrinsically safe and explosion-proof
certificates. Customized solutions for various fluids can be supplied.
|Accuracy||±0.25%F.S, ±0.5%F.S, ±1.0%F.S|
|Stability||Typical value: 0.1%F.S Max.: 0.2% F.S/year|
|Operating Temperature||-40°C~85°C or -40 °C ~125 °C|
|Overload pressure||1.5times Rated pressure|
|Secondary containment||3 times rated pressure|
|Medium compatibility||All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L|
|Electrical properties||2 line||3 line|
|Electrical Connections||waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68|
|Pressure interface||G1/4,input type|
|Electric strength||500Vac@1 second|
|Graduate Certificate Programs||certificate of explosion-proof, CE|
|Electromagnetic compatibility||electromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2|
|Lightning protection||air conduction resistance 8000V,case, cable conduction|
Pressure sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
We can offer good technical support and good warranty for you after service as professional manufacturer.
Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
