Place of Origin:
China xi'an
Brand Name:
KCF SERIES
Certification:
CE
Model Number:
KCF 406
| Material | 304 stainless steel |
| Fitting | bulge fitting, thread fitting, SAE fitting |
| Length range | 170mm~2000mm |
| Installation | bayonet, standard 5 holes or standard 6 holes, can be customzied |
| Gasket | FPM gasket, NBR gasket |
| Rated Power | 125mW |
| Rated Current for alarm switch | 500mA |
| Wire | PVC material (PA corrugated pipe aacover is optional) |
| Connector | Brand Delphi , Tyco, others is available according to customers’ requirement |
| Output signal | Resistance control signal 0-190Ω, 240-33Ω, or customize as required |
| Precision Range | 10-40mm |
| Operating Temperature | -40℃~+85 ℃ |
| Protection Grade | IP67 |

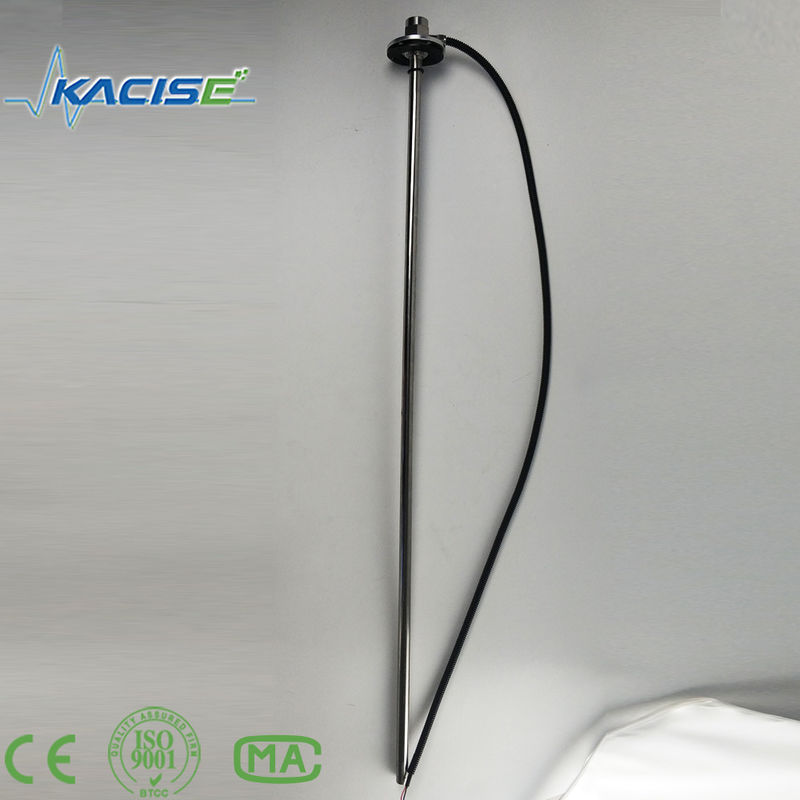

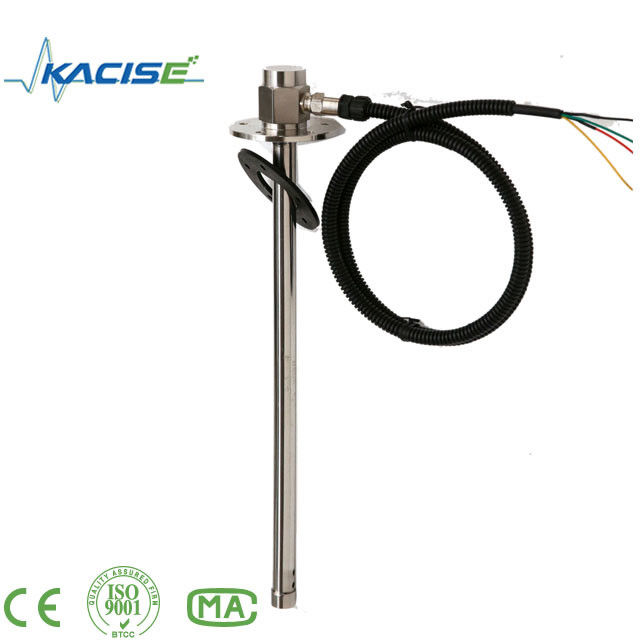

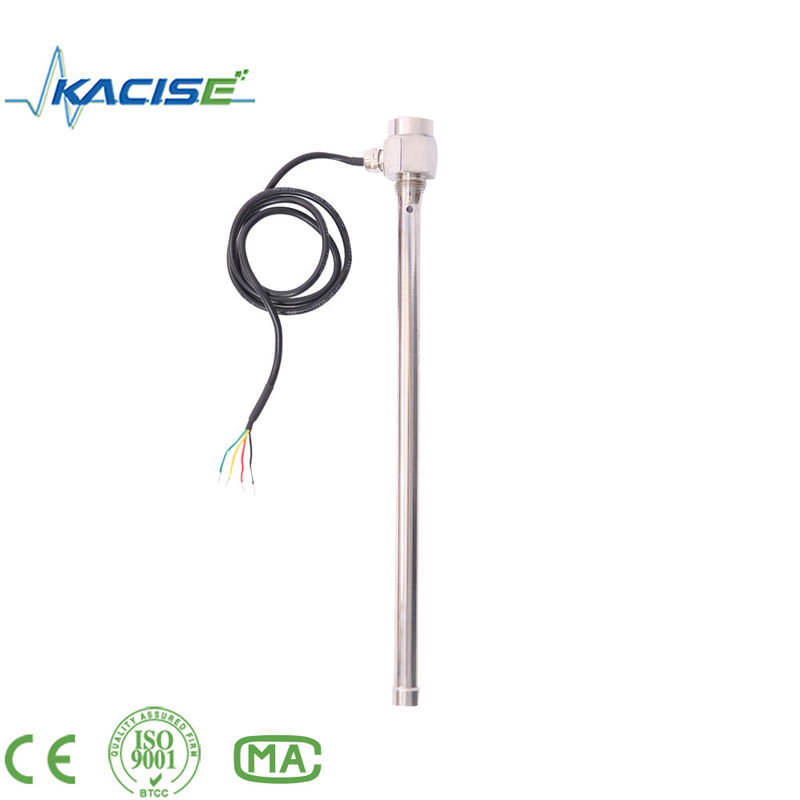

Product picture
******************************************************************************************************************************************
Xi'an Kacise is qualified with ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates, etc. which ensure that our products comply with international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. Based on experienced technical and management personnel, through efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensors have already been exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regard “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
Please send us emali for more information, we will reply you in 12 hours.
We will provide 12 months of warranty, and lifetime maintenance for products.
Fully tested before delivery.
We supply high quality fuel level sensor, and provide high level services.
