Product Details:
Place of Origin: CHINA
Brand Name: KACISE
Certification: CE
Model Number: KLD-2608/2609
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: 200-800
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Frequency: 26GHz Output: 4...20mA/HART, RS485/Modbus
Explosion-proof: Exia IIC T6 Ga/Exd Ia IIC T6 Gb Protection: IP67/IP65
High Light:

ultrasonic fluid level sensor

,

ultrasonic level transmitter

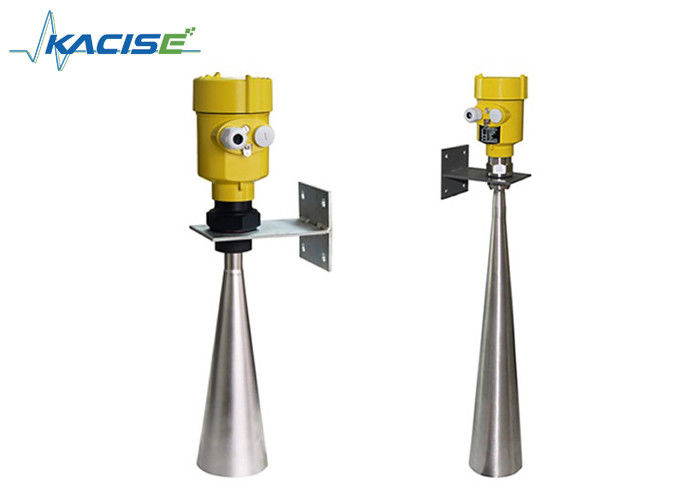

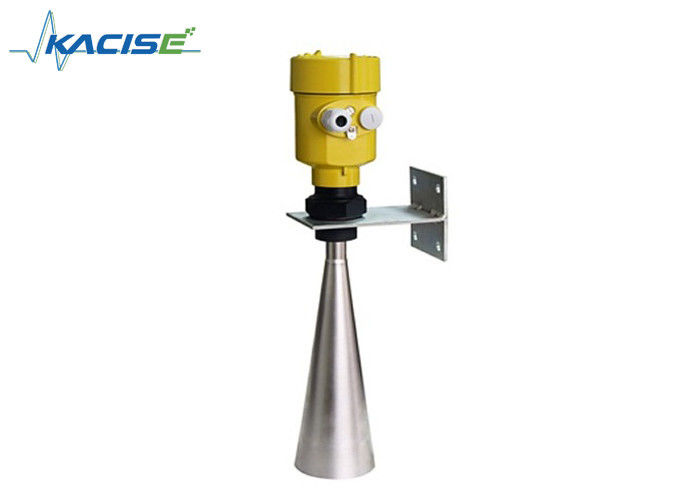

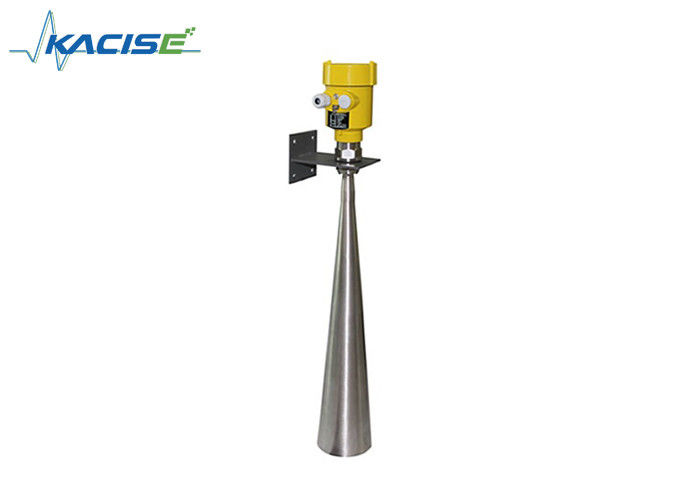

KLD 26GHz Series 4-20mA HART Radar Liquid Level Senor for River Lake



1. Technical Features:



The KLD series liquid level meter adopts 26GHz transmission frequency and thus has the following features:

  • Small beam angle, concentrated energy, strong anti-interference ability, higher measurement accuracy and reliability;
  • Small antenna size, easy for installation and addition of antenna protection equipments like dust-proof cover;
  • Light in weight, easy for installation;
  • The measurement range can be up to 70 meters, can measure the water level of large reservior, etc.;
  • Adopts multiple output port to work with signal collection system;
  • Adopts pulse working method. The transmmission power of the level meter is very low, almost no harm to both human and environment.​

​

2. Technical Specification and Model Selection:



26GHz 4-20mA HART Radar Liquid Level Senor KLD Series For River Lake 0

26GHz 4-20mA HART Radar Liquid Level Senor KLD Series For River Lake 1



3. Applications:



26GHz 4-20mA HART Radar Liquid Level Senor KLD Series For River Lake 2



Tag:

ultrasonic level transmitter,

ultrasonic liquid level sensor,

ultrasonic fluid level sensor

Contact Details
Xi'an Kacise Optronics Co.,Ltd.

Contact Person: Sun

Tel: +8618066719759

Send your inquiry directly to us (0 / 3000)

Other Products
NPT Thread Installation Small Blind Spot Radar Level Gauge Non Corrosive Liquid KLD801
NPT Thread Installation Small Blind Spot Radar Level Gauge Non Corrosive Liquid KLD801

Medium: liquid, non-corrosive

Measuring range: 0.05m～10/20/30/60/100m

Process connection: G1½A / 1½NPT thread / flange ≥ DN40

Process temperature: -40～80℃
IP67 Radar Level Gauge For Slightly Corrosive Liquid 32mm Lens Antenna KLD802
IP67 Radar Level Gauge For Slightly Corrosive Liquid 32mm Lens Antenna KLD802

Medium: non-corrosive liquid, slightly corrosive liquid

Measuring range: 0.1m~10/20/30/60/100m

Process connection: flange ≥ DN80

Process temperature: -40～110℃
KLD803 PTFE 34mm Lens Antenna Radar Level Gauge For Strong Corrosive Liquid Steam Foam
KLD803 PTFE 34mm Lens Antenna Radar Level Gauge For Strong Corrosive Liquid Steam Foam

Medium: strong corrosive liquid, steam, foam

Measuring range: 0.1m～10/20/30/60/100m

Process connection: flange ≥ DN50

Process temperature: -40～130℃
Strong Corrosion Resistance Radar Level Gauge 80G KLD800 Series KLD804
Strong Corrosion Resistance Radar Level Gauge 80G KLD800 Series KLD804

Medium: strong corrosive liquid, steam, foam

Measuring range: 0.1m~10/20/30/60/100m

Process connection: flange ≥ DN50

Process temperature: -40～130℃
KLD805 80G Radar Level Gauge High Temperature And Pressure Resistance
KLD805 80G Radar Level Gauge High Temperature And Pressure Resistance

Medium: strong corrosive liquid, steam, foam, high temperature. and high pressure

Measuring range: 0.1m~10/20/30/60/100m

Process connection: flange ≥ DN80

Process temperature: -40～200℃
KLD806 80G Radar Level Gauge Solid Strong Dust Application 76mm Lens Antenna
KLD806 80G Radar Level Gauge Solid Strong Dust Application 76mm Lens Antenna

Medium: solid, storage container, process container, strong dust application

Measuring range: 0.3m~10/20/30/60/100m

Process connection: flange ≥ DN100

Process temperature: -40～110℃
KLD800 Series 80G Radar Level Gauge PTFE Antenna Size Small Blind Spot
KLD800 Series 80G Radar Level Gauge PTFE Antenna Size Small Blind Spot

Medium: refer to detailed description

Measuring range: 0.05m～10/20/30/60/100m

Process connection: refer to detailed description

Process temperature: -40～220℃
