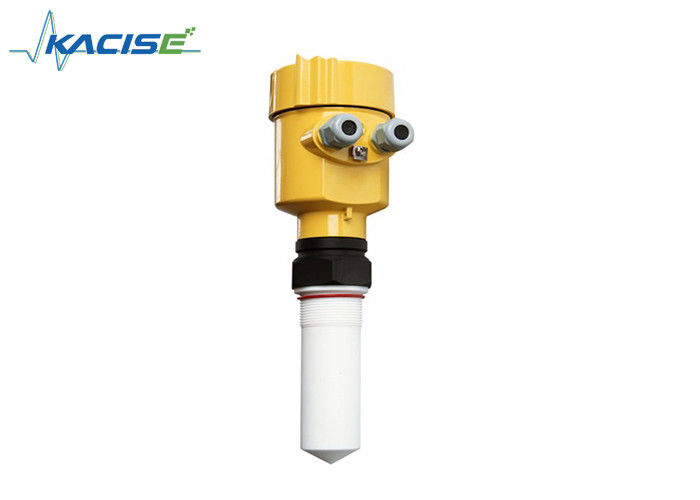

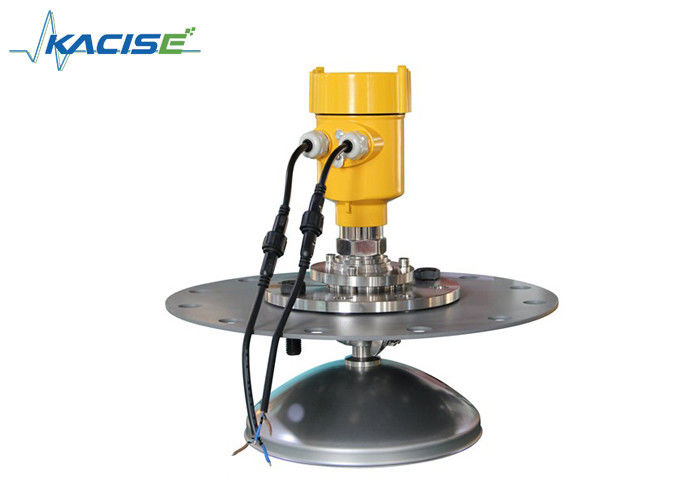

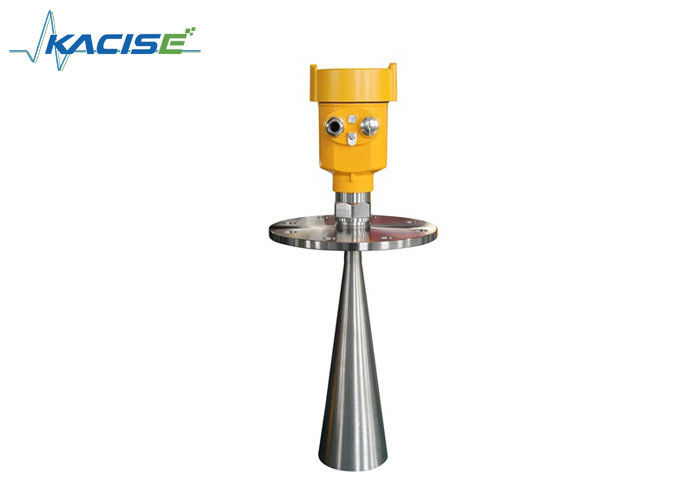

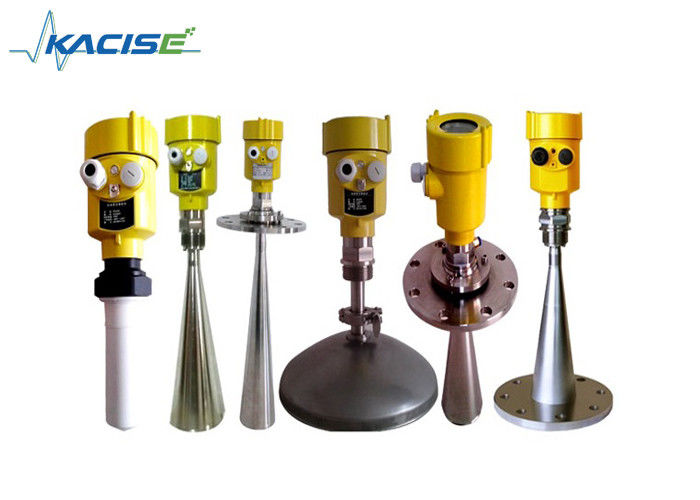

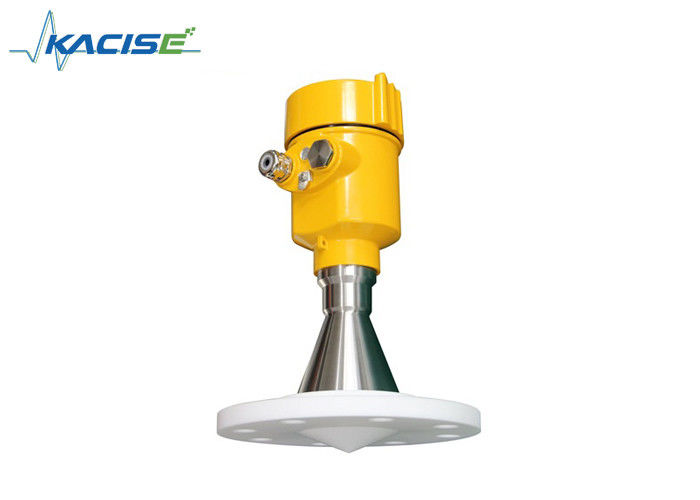

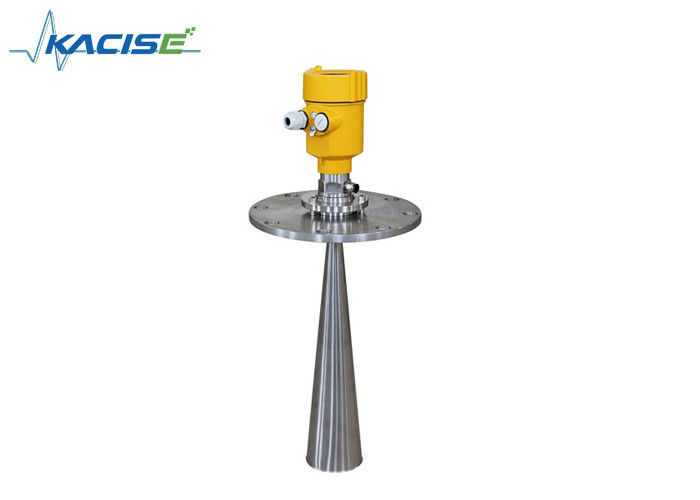

KLD 26GHz Series High Frequency 4-20mA HART RS485 Modbus Radar Level Meter Powder Level Meter

KLD 26GHz Series High Frequency 4-20mA HART RS485 Modbus Radar Level Meter Powder Level Meter

  • KLD 26GHz Series High Frequency 4-20mA HART RS485 Modbus Radar Level Meter Powder Level Meter
  • KLD 26GHz Series High Frequency 4-20mA HART RS485 Modbus Radar Level Meter Powder Level Meter
  • KLD 26GHz Series High Frequency 4-20mA HART RS485 Modbus Radar Level Meter Powder Level Meter
  • KLD 26GHz Series High Frequency 4-20mA HART RS485 Modbus Radar Level Meter Powder Level Meter
  • KLD 26GHz Series High Frequency 4-20mA HART RS485 Modbus Radar Level Meter Powder Level Meter
  • KLD 26GHz Series High Frequency 4-20mA HART RS485 Modbus Radar Level Meter Powder Level Meter
KLD 26GHz Series High Frequency 4-20mA HART RS485 Modbus Radar Level Meter Powder Level Meter
Product Details:
Place of Origin: CHINA
Brand Name: KACISE
Certification: CE
Model Number: KLD 26GHz series
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: 200-800
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Frequency: 26GHz Output: 4...20mA/HART, RS485/Modbus
Explosion-proof: Exia IIC T6 Ga/Exd Ia IIC T6 Gb Protection: IP67/IP65
High Light:

ultrasonic fluid level sensor

,

ultrasonic level transmitter

KLD 26GHz Series High Frequency 4-20mA HART RS485 Modbus Radar Level Meter Powder Level Meter



This radar level meter series utilizes a 26G high-frequency radar sensor. It can measure up to 80 meters, thanks to the newly developed microprocessor that enables faster signal analysis and processing. This ensures its suitability for measuring complex environments, such as reactors and solid silos.



1. Working Principle:



The radar antenna transmits a narrow microwave pulse, which reflects back upon reaching the surface of the tested medium and is then received by the antenna system. The signals are sent to the electrical circuit and converted into level signals. Due to the rapid transmission speed of microwaves, the time taken for the transmission to the surface of the tested medium and back is nearly zero.

KLD 26GHz Series High Frequency 4-20mA HART RS485 Modbus Radar Level Meter Powder Level Meter 0

2. Technical Features:



  • Small antenna size, easy to install; non-contact radar, no wear, no pollution.
  • Almost no corrosion, no bubble effect; almost not affected by steam in the atmosphere, temperature and pressure changes.
  • Serious dust environment has little effect on the high level meter work.
  • Shorter wavelength means better reflection for inclined solid surface.
  • Small beam angle and concentrated energy enhances the echo ability and avoid interference.
  • Small measurement blind area means accurate measurement also for small tanks.
  • High signal-to-noise ratio means good performance also even under flucturation state.
  • High frequency, which is the best choice for measurement of solid and low dielectric constant medium.



3. Technical Specification and Model Selections:



KLD 26GHz Series High Frequency 4-20mA HART RS485 Modbus Radar Level Meter Powder Level Meter 1

KLD 26GHz Series High Frequency 4-20mA HART RS485 Modbus Radar Level Meter Powder Level Meter 2

KLD 26GHz Series High Frequency 4-20mA HART RS485 Modbus Radar Level Meter Powder Level Meter 311

KLD 26GHz Series High Frequency 4-20mA HART RS485 Modbus Radar Level Meter Powder Level Meter 4

KLD 26GHz Series High Frequency 4-20mA HART RS485 Modbus Radar Level Meter Powder Level Meter 5

KLD 26GHz Series High Frequency 4-20mA HART RS485 Modbus Radar Level Meter Powder Level Meter 6

Housing
Seal between housing and housing cover Silicone rubber
Housing window Polycarbonate
The ground terminal Stainless steel
The power supply voltage
Two wire The standard type (16 ~ 26) V DC
  Intrinsically safe (21.6 ~ 26.4) V DC
  Power dissipation max 22.5mA / 1W
Allowable ripple - <100Hz Uss<lV
  - (100~100K) Hz Uss<l0mV
The cable parameters
Cable entrance / plug 1 M20xl.5 cable entrance
  1 blind plug
Terminal Conductor cross section 1.0mm²
Output The output signal (4 ~ 20) mA
  Communication protocol HART
  Resolution 1.6μA


Fault signal



Constant current output;

20. 5mA, 22mA, 3.9mA

  The integral time (0 ~ 50) s, adjustable
Blind zone the ends of the antenna
Max. measuring range 80m
Microwave frequency 26GHz
Communication interface HART communication protocol
The measurement interval about 1 second (depending on the parameter settings)
Adjustment time about 1 second (depending on the parameter settings)
Display resolution 1 mm
Working storage and transportation temperature (-40~100) ℃
Process temperature (the temperature of the antenna part) (-40~250)℃
Pressure Max.4MPa
Seismic Mechanical vibration l0m/s², (10 ~ 150) Hz




4. Applications and Cases:



KLD 26GHz Series High Frequency 4-20mA HART RS485 Modbus Radar Level Meter Powder Level Meter 7
