| Place of Origin: | China |
| Brand Name: | Kacise |
| Certification: | CE |
| Model Number: | KUS550 |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton with bubble |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pieces per month |
| Material: | PVC / PTFE | Output: | 0-5V / 0-10V / RS485 / Switch |
|---|---|---|---|
| Power Supply: | 24V | Range: | 2.5m |
| Thread: | 1" NPT | ||
| High Light: | ultrasonic fluid level sensor,ultrasonic level transmitter |
||

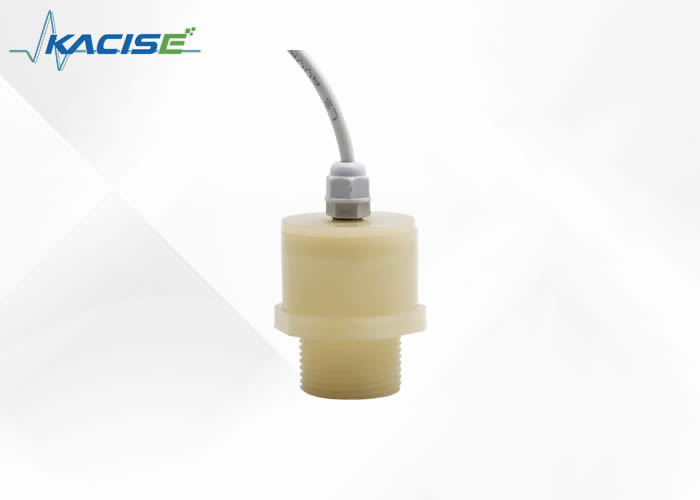

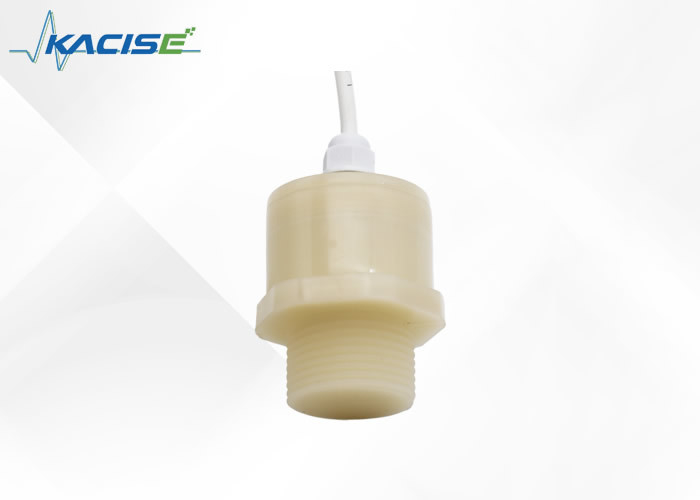

Anti Corrosive Hygienic Sanitary Type PVC / PTFE 1"NPT Ultrasonic Level Sensor With Analog And RS485 Output
Introduction
This sensor provides very short to long-range detection and ranging, in a compact, robust PVC/PTFE housing, designed to meet IP65 / IP67.
Applications
. Tank level measurement
. Bin level measurement
. Proximity zone detection
. People detection
. Robot ranging sensor
. Autonomous navigation
. Multi-sensors navigation
. Distance measuring
. Food level detection
. Industrial automation
Features
. Designed for outdoor or indoor environments
. High sensitivity
. Free run operation can continually measure and output ranger information
. Sensor beam angle is 10 degrees (full angle)
. Chemical Resistance Whole Body PTFE
. Anti Corrosion
. Suitable for Sanitary and Hygienic application
Parameters
| General Parameters | Mechanical Properties | ||
| Detection Range | 200mm~3000mm | Connection | 5 pin cable |
| Transducer Frequency | 70KHZ | Weight | 100g |
| Repeatability Precision | ≤1% | IP grade | IP67 |
| Response Time | <50ms | ||
| Beam Angle | 7°±2 | ||
| Temp. Compensation | inside/outside/fix temp. | ||
| Electrical Parameters | |||
| Operating Voltage | 14.5VDC~27VDC | ||
| Limit Working Voltage | 13VDC~30VDC | ||
| Power Consumption | ≤30mA | ||
| Circuit Protection | short-circuit protection, overload protection | ||
| Output | Digital Output | RS485 | |
| Analogue Output | 0~5V | ||
| Switch Output | 0V / 5V | ||
| Ambient Environment | |||
| Operating Ambient Temp. | 0~70℃ (-40~85℃, -55~125℃, etc, customizable) | ||
| Storage Temperature | -55~125℃ | ||
