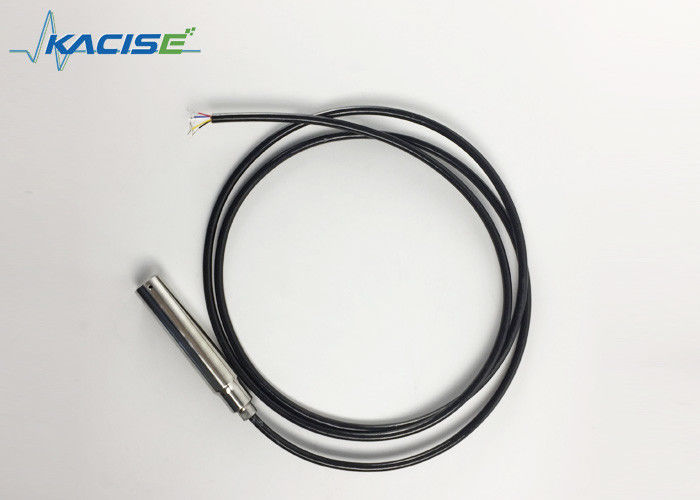

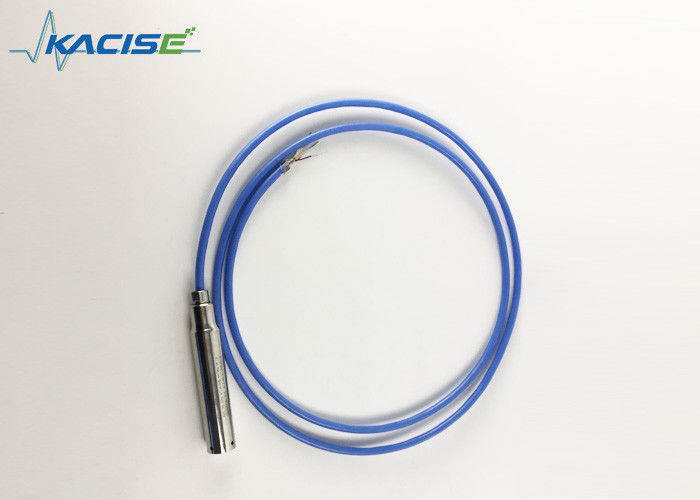

Anti - Corrosive S S 316 Fluid Level Meter With PTFE Corrosion Resistant Cable

Anti - Corrosive S S 316 Fluid Level Meter With PTFE Corrosion Resistant Cable

  • Anti - Corrosive S S 316 Fluid Level Meter With PTFE Corrosion Resistant Cable
  • Anti - Corrosive S S 316 Fluid Level Meter With PTFE Corrosion Resistant Cable
Anti - Corrosive S S 316 Fluid Level Meter With PTFE Corrosion Resistant Cable
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: GXPS400
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Accuracy: ±0.25%F.S, ±0.5%F.S, ±1.0%F.S Pressure Range: 0~1...500mH2O
Overload Pressure: 1.5times Rated Pressure Secondary Containment: 3 Times Rated Pressure
Compensation Temperature: -10°C~70°C Pressure Interface: G1/4,input Type
Output Signal: 4~20mA, 0~5Vdc, 1~5Vdc. 0~10Vdc Power Supply: 24VDC, 11~30Vdc, Or Customized
High Light:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

High Precision Small Volume PTFE Corrosion Resistant Level Transmitter

Product Description


GXPS400 series level transmitter is a special structure and use of products, high precision, small size and
good stability. Special strong cables for corrosive, abrasive, and chemical environment are offered
according to filed environment. The products are approved with CE, intrinsically safe and explosion-proof
certificates. Customized solutions for various fluids can be supplied.

Parameter


Spec. Numerical value
Accuracy ±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Stability Typical value: 0.1%F.S Max.: 0.2% F.S/year
Operating Temperature -40°C~85°C or -40 °C ~125 °C
Pressure range

0~1……500mH2O
9.8KPa…4900KPa
0.09bar…49bar
0.09atm…48atm
1.4psi… 711psi
2.8inchHg…1400inchHg

Overload pressure 1.5times Rated pressure
Secondary containment 3 times rated pressure
Compensation temperature -10°C~70°C
Medium compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L
Electrical properties 2 line 3 line
Output signal 4~20mA 0~5V 0~10V
Power supplies 10~30Vdc 80~30Vdc/ac 11~30Vdc/ac
Load resistance (U-10)/0.02(Ω)  〉100kΩ
Insulation  〉100MΩ@50V
Electrical Connections waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68
Pressure interface G1/4,input type
Response time 10ms
Electric strength 500Vac@1 second
Graduate Certificate Programs certificate of explosion-proof, CE
Electromagnetic compatibility electromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2
Lightning protection air conduction resistance 8000V,case, cable conduction




Feature


  • Multiple pressure range and signal output
  • Non-polar 2 wire system current output
  • Can be used in lightning protection products
  • Diffused-Silicon oil filled core
  • All kinds of structure to satisfy different users
  • Easy to use with submersible measuring
  • Reinforcing rib for liquid cable available
  • Intrinsically safe explosion proof, Isolation explosion proof, CE
  • Four layers of waterproof protection

Anti - Corrosive S S 316 Fluid Level Meter With PTFE Corrosion Resistant Cable 0

4.Application Field


  • Cloudy level measuring
  • Fluid reservoir level measuring
  • Water-saving irrigation
  • Deep well level measuring
  • Hydrologic measurement for river, lake, sea
  • Sewage treatment
  • Circulating liquid consumption monitoring
  • Diversion project

Our Services

Pressure sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:

1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.


After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.

Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
