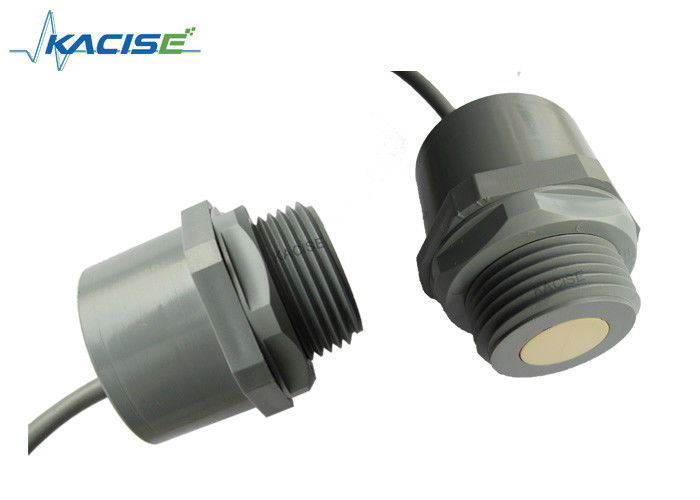

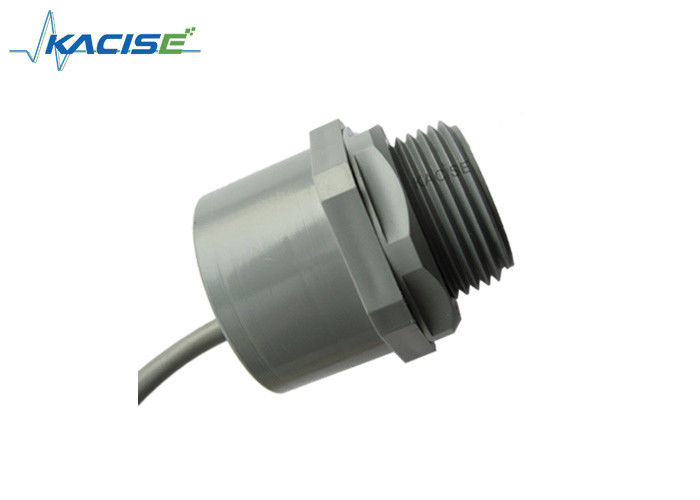

Digital RS485 Ultrasonic Water Level Pressure Sensor Low Power Consumption

Digital RS485 Ultrasonic Water Level Pressure Sensor Low Power Consumption

    • Digital RS485 Ultrasonic Water Level Pressure Sensor Low Power Consumption
    • Digital RS485 Ultrasonic Water Level Pressure Sensor Low Power Consumption
  • Digital RS485 Ultrasonic Water Level Pressure Sensor Low Power Consumption

    Product Details:

    Place of Origin: China (Mainland)
    Brand Name: Kacise
    Certification: certificate of explosion-proof, CE
    Model Number: KUS550

    Payment & Shipping Terms:

    Minimum Order Quantity: 0-100
    Price: Negotiable
    Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
    Delivery Time: 5-8 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
    Supply Ability: 1000 Pieces per Week
    Contact Now
    Detailed Product Description
    Detection Range: 200mm~3000mm Power Supply: 14.5~27VDC
    Transducer Frequency: 70KHZ Response Time: <50ms
    Beam Angle: 7°±2 IP Grade: Inside/outside/fix Temp.IP65
    Operating Voltage: 14.5VDC~27VDC Output: RS485 Modbus, 0-10V, Switch
    Power Consumption: ≤30mA RSoftware: Modbus Or Our Software
    High Light:

    ultrasonic level transmitter

    ,

    ultrasonic liquid level sensor

    Digital RS485 and 0/10V Low Power Consumption Ultrasonic Water Level Sensor



    1,Description



    This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,
    designed to meet IP65.



    2,features:

    • Designed for outdoor or indoor environments
    • High sensitivity
    • Free run operation can continually measure and output ranger information
    • Sensor beam angle is 7 degrees

    3,Parameter



    General Parameters Mechanical Properties
    Detection Range 200mm~3000mm Connection 5 pin cable
    Transducer Frequency 70KHZ Weight 100g
    Repeatability Precision 1% IP grade IP65
    Response Time <50ms
    Beam Angle 7°±2
    Temp. Compensation inside/outside/fix temp.
    Electrical Parameters
    Operating Voltage 14.5VDC~27VDC
    Limit Working Voltage 13VDC~30VDC
    Power Consumption 30mA
    Circuit Protection short-circuit protection, overload protection
    Output Digital Output RS485
    Analogue Output 0~5V
    Switch Output 0V / 5V
    Ambient Environment
    Operating Ambient Temp. 0~70 (-40~85, -55~125, etc, customizable)
    Storage Temperature -55~125



    4,Dimensions



    Digital RS485 Ultrasonic Water Level Pressure Sensor Low Power Consumption 0

    5,Application

    • Tank level measurement
    • Bin level measurement
    • Proximity zone detection
    • People detection
    • Robot ranging sensor
    • Autonomous navigation
    • Multi-sensors navigation
    • Distance measuring
    • Long range object detection
    • Industrial automation



    6,Wiring



    Digital RS485 Ultrasonic Water Level Pressure Sensor Low Power Consumption 1
