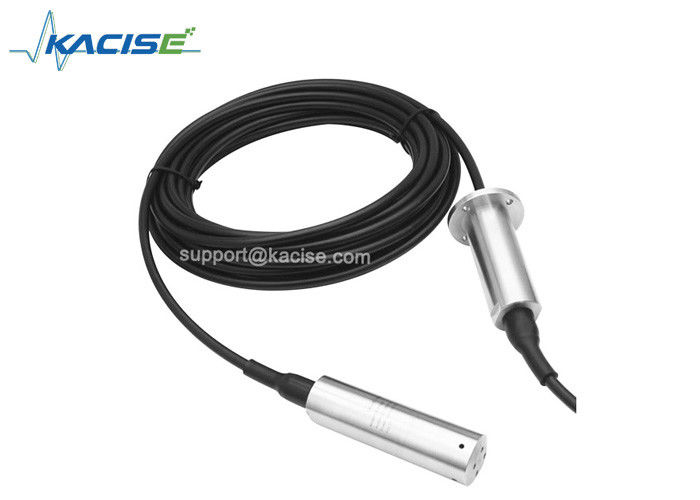

Water Surface Waterproof Fluid Level Meter High Precision Cloudy Level Measuring

Water Surface Waterproof Fluid Level Meter High Precision Cloudy Level Measuring

    • Water Surface Waterproof Fluid Level Meter High Precision Cloudy Level Measuring
    • Water Surface Waterproof Fluid Level Meter High Precision Cloudy Level Measuring
  • Water Surface Waterproof Fluid Level Meter High Precision Cloudy Level Measuring

    Product Details:

    Place of Origin: China (Mainland)
    Brand Name: Kacise
    Certification: certificate of explosion-proof, CE
    Model Number: GXPS400

    Payment & Shipping Terms:

    Minimum Order Quantity: 1ps
    Price: Negotiable
    Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
    Delivery Time: 5-8 work day
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
    Supply Ability: 1000 Pieces per Week
    Contact Now
    Detailed Product Description
    Overload Pressure: 1.5times Rated Pressure Compensation Temperature: -10°C~70°C
    Output Signal: 4~20mA, 0~5Vdc, 1~5Vdc. 0~10Vdc Power Supply: 24VDC, 11~30Vdc, Or Customized
    Accuracy: ±0.25%F.S, ±0.5%F.S, ±1.0%F.S Stability: Typical Value: 0.1%F.S Max.: 0.2% F.S/year
    Operating Temperature: -40°C~85°C Or -40 °C ~125 °C Pressure Range: 0~1...500mH2O
    Secondary Containment: 3 Times Rated Pressure Pressure Interface: G1/4,input Type
    High Light:

    ultrasonic level transmitter

    ,

    ultrasonic liquid level sensor

    Water Surface Waterproof Submersible level meter High Precision Good Stability



    1. Product Description







    GXPS400 series level transmitter is a special structure and use of products, high precision, small size and

    good stability. Special strong cables for corrosive, abrasive, and chemical environment are offered

    according to filed environment. The products are approved with CE, intrinsically safe and explosion-proof

    certificates. Customized solutions for various fluids can be supplied.





    2. Parameter



    Spec. Numerical value
    Accuracy ±0.25%F.S, ±0.5%F.S, ±1.0%F.S
    Stability Typical value: 0.1%F.S Max.: 0.2% F.S/year
    Operating Temperature -40°C~85°C or -40 °C ~125 °C
    Compensation temperature -10°C~70°C
    Pressure range

    0~1……500mH2O

    9.8KPa…4900KPa

    0.09bar…49bar

    0.09atm…48atm

    1.4psi… 711psi

    2.8inchHg…1400inchHg

    Overload pressure 1.5times Rated pressure
    Secondary containment 3 times rated pressure
    Medium compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L
    Electrical properties 2 line 3 line
    Output signal 4~20mA 0~5V 0~10V
    Power supplies 10~30Vdc 80~30Vdc/ac 11~30Vdc/ac
    Load resistance (U-10)/0.02(Ω)  〉100kΩ
    Insulation  〉100MΩ@50V
    Electrical Connections waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68
    Pressure interface G1/4,input type
    Response time 10ms
    Electric strength 500Vac@1 second
    Graduate Certificate Programs certificate of explosion-proof, CE
    Electromagnetic compatibility electromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2
    Lightning protection air conduction resistance 8000V,case, cable conduction



    3. Feature



    1. Multiple pressure range and signal output
    2. Non-polar 2 wire system current output
    3. Can be used in lightning protection products
    4. Reinforcing rib for liquid cable available
    5. Intrinsically safe explosion proof, Isolation explosion proof, CE
    6. Four layers of waterproof protection
    7. Diffused-Silicon oil filled core
    8. All kinds of structure to satisfy different users
    9. Easy to use with submersible measuring

    Water Surface Waterproof Fluid Level Meter High Precision Cloudy Level Measuring 0



    4. Application Field



    1. Cloudy level measuring
    2. Fluid reservoir level measuring
    3. Water-saving irrigation
    4. Circulating liquid consumption monitoring
    5. Diversion project
    6. Deep well level measuring
    7. Hydrologic measurement for river, lake, sea
    8. Sewage treatment

    Water Surface Waterproof Fluid Level Meter High Precision Cloudy Level Measuring 1
