Water Treatment Fluid Level Meter Integrated With English Led Display

Water Treatment Fluid Level Meter Integrated With English Led Display

  • Water Treatment Fluid Level Meter Integrated With English Led Display
  • Water Treatment Fluid Level Meter Integrated With English Led Display
Water Treatment Fluid Level Meter Integrated With English Led Display
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof,
Model Number: KUM-A
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: USD157 to USD610 per pc
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Product Type: Integrated Power Supply: 24 VDC Optional: 220V AC+15% 50Hz
Display: English Led Display Cable Probe: No
Digital Output: RS485 Resolution: 3mm Or 0.1%
Apply: Water Treatment Product Name: Integrated Type KUM-A Ultrasonic Level Meter Used In Water Treatment Of High Quality
High Light:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

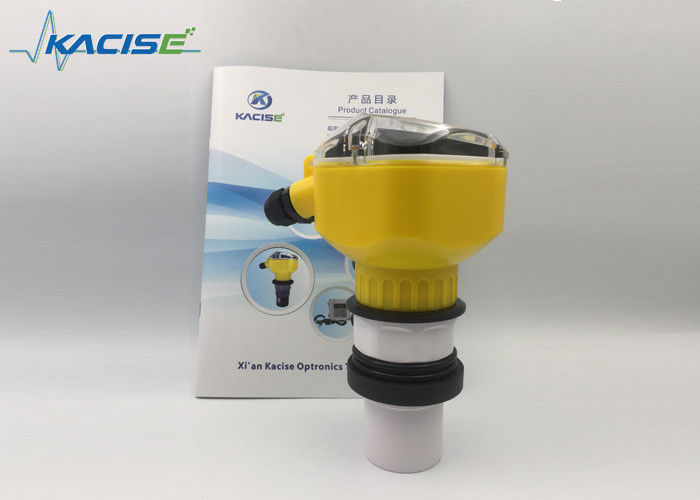

Integrated Type KUM-A Ultrasonic Level Meter Used in Water Treatment of High Quality



KUM-A ultrasonic level meter is a non-contact and cost-effective level meter with high reliability, high accuracy and easy installation. It does not have to contact the medium and can meet the measuring requirements of most applications.



Technical Features:

  • Non-contact, can be used in various applications;
  • Various types of probes are available to meet the requirements of various applications.
  • High accuracy: 0.5%, 1%
  • English LED Display





Technical Specifications:



Specs Value
Pressure Voltage 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m
Accuracy 0.5%, 1.0%
Display LCD
Ambient Temperature Display instrument-20~+60℃
transducer-20~+80℃
Medium liquid and solid
Analog Output 4-20mA
Digital Output RS485, RS232 (both are optional)
Power Supply 24Vdc
Protection Grade Display instrument IP65,transducer IP68
Probe Type PVDF, aluminum alloy, ABS, stainless steel 316L, teflon, titanium alloy





Structure:

Water Treatment Fluid Level Meter Integrated With English Led Display 0

Model Selection:



KUM-A
  Measurement Range
A 5m
B 10m
C 15m
D 20m
E 30m
F 40m
G 50m
H 60m
  Output Signal
A 4-20mA
  Accuracy
0.5 0.5%
1.0 1%
  Power Supply
A 24Vdc
B 11~30Vdc
  Probe Type
A PVDF
B Aluminum alloy
C ABS
D Stainless steel 316L
E Teflon
F Titanium alloy



 Applications and Installations:

  • Distance measurement
  • Depth measurement



Water Treatment Fluid Level Meter Integrated With English Led Display 1

Water Treatment Fluid Level Meter Integrated With English Led Display 2

Water Treatment Fluid Level Meter Integrated With English Led Display 3

Structure:
