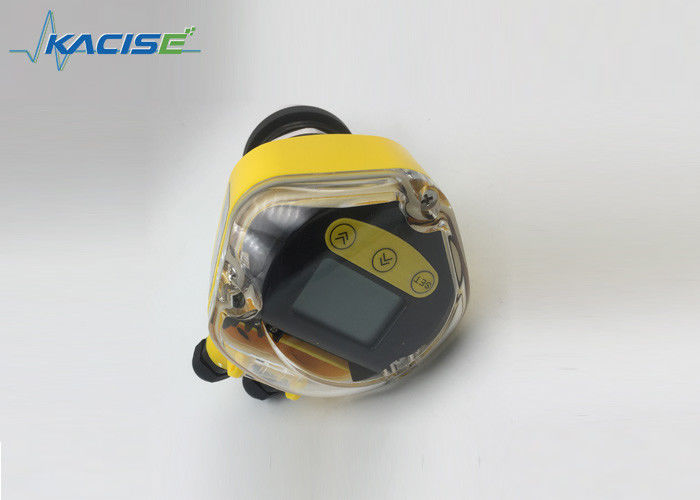

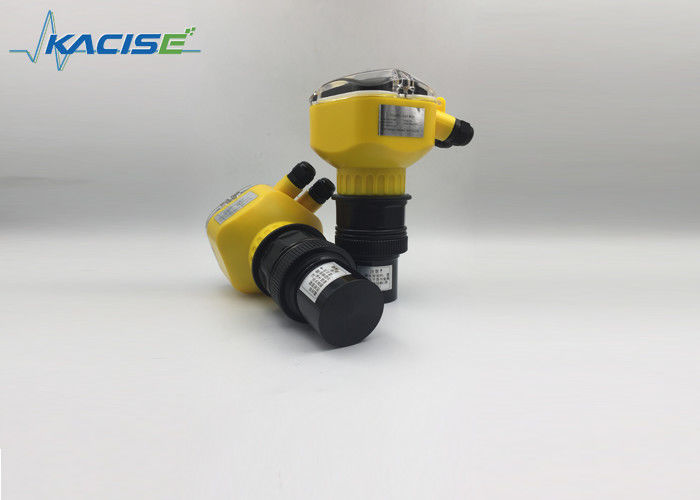

High Accuracy 0.5% Ultrasonic Level Meter with LED Display and RS485 Output for Water Treatment

High Accuracy 0.5% Ultrasonic Level Meter with LED Display and RS485 Output for Water Treatment

ultrasonic water flow meter

ultrasonic btu meter

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KUM-A

Contact Us
Request A Quote
Product Details
Product Type:
Integrated
Power Supply:
24 VDC Optional: 220V AC+15% 50Hz
Display:
English Led Display
Cable Probe:
No
Digital Output:
RS485
Resolution:
3mm Or 0.1%
Product Name:
KUM-A Digital Integrated High Performation Ultrasonic Level Meter Non-Contact Level Sensor Level Mesurement Used In Water Treatment
Apply:
Water
Highlight:

ultrasonic water flow meter

,

ultrasonic btu meter

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
USD157 to USD610 per pc
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
T/T,Western Union,MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description
KUM-A Digital Integrated High Performation Ultrasonic Level Meter Non-Contact Level Sensor Level Mesurement Used in Water Treatment

KUM-A ultrasonic level meter is a non-contact and cost-effective level meter with high reliability, high accuracy and easy installation. It does not have to contact the medium and can meet the measuring requirements of most applications.

Technical Features
  • Non-contact, can be used in various applications;
  • Various types of probes are available to meet the requirements of various applications.
  • High accuracy: 0.5%, 1%
  • English LED Display
Structure
High Accuracy 0.5% Ultrasonic Level Meter with LED Display and RS485 Output for Water Treatment 0
Technical Specifications
Specs Value
Pressure Voltage 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m
Accuracy 0.5%, 1.0%
Display LCD
Ambient Temperature Display instrument-20~+60℃
transducer-20~+80℃
Medium liquid and solid
Analog Output 4-20mA
Digital Output RS485, RS232 (both are optional)
Power Supply 24Vdc
Protection Grade Display instrument IP65,transducer IP68
Probe Type PVDF, aluminum alloy, ABS, stainless steel 316L, teflon, titanium alloy
Model Selection
KUM-A
Measurement Range
A 5m
B 10m
C 15m
D 20m
E 30m
F 40m
G 50m
H 60m
Output Signal
A 4-20mA
Accuracy
0.5 0.5%
1.0 1%
Power Supply
A 24Vdc
B 11~30Vdc
Probe Type
A PVDF
B Aluminum alloy
C ABS
D Stainless steel 316L
E Teflon
F Titanium alloy
Applications and Installations
  • Distance measurement
  • Depth measurement
High Accuracy 0.5% Ultrasonic Level Meter with LED Display and RS485 Output for Water Treatment 1 High Accuracy 0.5% Ultrasonic Level Meter with LED Display and RS485 Output for Water Treatment 2 High Accuracy 0.5% Ultrasonic Level Meter with LED Display and RS485 Output for Water Treatment 3
