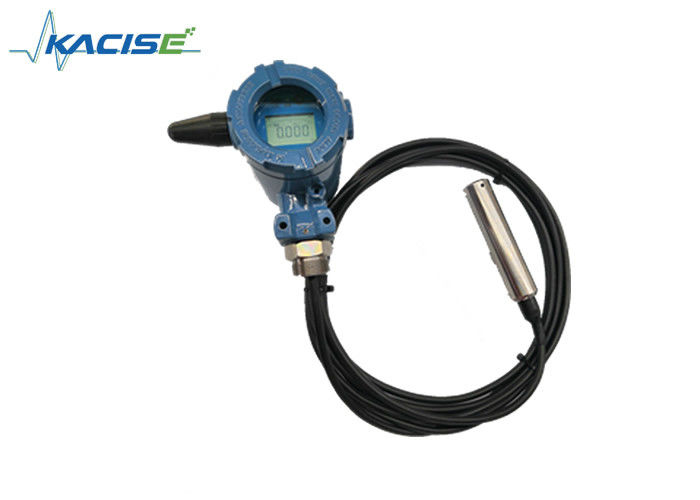

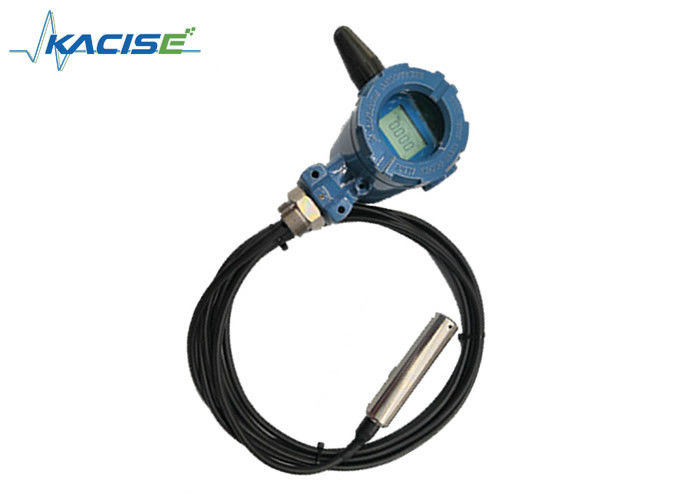

GXPS606 Series Wireless Level Sensor / Liquid Level Sensor Water Tank Level

GXPS606 Series Wireless Level Sensor / Liquid Level Sensor Water Tank Level

  • GXPS606 Series Wireless Level Sensor / Liquid Level Sensor Water Tank Level
  • GXPS606 Series Wireless Level Sensor / Liquid Level Sensor Water Tank Level
  • GXPS606 Series Wireless Level Sensor / Liquid Level Sensor Water Tank Level
GXPS606 Series Wireless Level Sensor / Liquid Level Sensor Water Tank Level
Product Details:
Place of Origin: China
Brand Name: KACISE
Certification: ISO / CE
Model Number: GXPS606B
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: Carton / Wooden box
Delivery Time: 7 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500pcs/ month
Contact Now
Detailed Product Description
Level Measurement Range: 0~50m Customizable Measured Medium: Liquid, Gas
Overload Pressure: 150% F.S Decimal Places: 0~3 Digits Can Be Set
Reporting Period:: 1 Minute To 24 Hours Signal Transmission:: NB-Iot / GPRS / Lora Communication
Transmitting Power: ≤40mW Working Current:: 3.6V Lithium Battery, 24vdc
Explosion-proof Grade: All Corrosive Media Compatible With 1Cr18Ni9Ti And 316L Applicable Tank: Cuboids, Cylinders, Ellipsoidal Columns
High Light:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

Wireless Level Sensor / Liquid Level Sensor Water Tank Level



Introduction

GXPS606 series wireless liquid level meter is a liquid level measurement and transmission integrated table using GPRS wireless communication.Integrated high-sensitivity liquid level, high-precision signal conditioning circuit, low-power battery power management, and rich LCD display interface. Naturally strong anti-interference characteristics, it is an ideal intelligent instrument for liquid level collection and transmission. Suitable for oilfield, water conservancy, metallurgy, tap water and other industries.

main feature:

● Using the latest microprocessor technology, battery-powered, ultra-low power operation, battery life of 1-5 years.

● The temperature characteristics of the whole machine are very good, and the working temperature range is -30-70 degrees

● Wireless GPRS network communication network operation, combined with self-built or public platform, can achieve unlimited number of                  products connected.

● Explosion-proof design: explosion-proof aluminum shell, the circuit board system is intrinsically safe;

● Protection grade: IP67, fully sealed and waterproof design;

● The installation direction is adjustable: the live pipeline valve can be connected through the joint or adapter to adjust the direction;

● High gain antenna, multiple check mechanism to ensure always online.

● Customized cable sleeve to prevent cable joint breakage;

● Rich LCD display interface, display resolution can be adjusted, with power prompt, dynamic percentage display.

● Perfect user calibration support, through the panel buttons, users can recalibrate the transmitter data without any auxiliary equipment, multiple    data protection, even if the settings are wrong, the factory state can be restored.

● User site button calibration function. Support users to calibrate the transmitter twice. Strong anti-interference characteristics.



Parameters

  • Measured medium: liquid, gas
  • Range: 0~50m Customizable
  • Accuracy: 0.5
  • Overload pressure: 150% F.S
  • Reporting period: 1 minute to 24 hours
  • Decimal places: 0~3 digits can be set
  • Signal transmission: GPRS network communication
  • Transmitting power: ≤40mW
  • Working current: ≤150mA
  • Standby current: ≤17uA
  • Working power: 3.6V lithium battery
  • Explosion-proof grade: Exib IIB T4 Gb
  • Shell protection:  IP67
  • Process Interface:  Customized
  • Working environment temperature:  -40~70°C
  • Working environment humidity:  ≤97% RH
  • Product weight:  2000g



Dimension

GXPS606 Series Wireless Level Sensor / Liquid Level Sensor Water Tank Level 0

                                                                                 Fig 3‑1



Display operation instructions

Panel functional description:

GXPS606 Series Wireless Level Sensor / Liquid Level Sensor Water Tank Level 1



Function Description:

  • I/0: Communication interface. It is a serial port TTL level, not USB.
  • ZERO: Button. Confirm function.
  • S1: Button. Turn page, shift and other functions.
  • S2: Button. Reset, add 1 and other function



LCD window



GXPS606 Series Wireless Level Sensor / Liquid Level Sensor Water Tank Level 2

                                                              Fig 4‑2 Schematic of the LCD window

Button function description



Transmitter reset restart

Press and hold the “S2” button for 3 seconds, the transmitter performs a reset restart and searches the network.



Level master variable clear, and full scale calibration operation

Under normal working conditions, press “ZERO” to enter the password input interface, enter the password 0001 to perform main variable clearing, zero calibration, and full scale calibration. Under the three functions, there are three options NO, YES. , RST. "YES" is the confirmation, "NO" is the abandonment, and "RST" is the reset. Press "S1" and "S2" to select different operations. The details are as follows:



GXPS606 Series Wireless Level Sensor / Liquid Level Sensor Water Tank Level 3

Power on/ off setting

Under normal working conditions, press “ZERO” to enter the password input interface, enter the password 002 to put the system into the shutdown state, the screen is not displayed. Long press the S2 button to enter the boot.





Positioning module section description

The data is uploaded once every 24 hours. The data includes pressure values, latitude and longitude, and positioning methods. The module sends the data immediately after the positioning is successful within five minutes. If the positioning fails, the data is sent immediately after five minutes. After the data is sent, the module is powered off and powered off. When there is an abnormal state (network, transmission failure), the module will automatically shut down and power off after five to six minutes, waiting for the next data transmission.



Installation

1. Determine the measurement range required by the process and the range of the transmitter to be installed.

2. The joint thread size of the process installation must be matched with the transmitter



Common fault treatment

When the meter is not working properly, the user can refer to the following table for simple maintenance. If the fault cannot be eliminated, please contact the manufacturer.

Phenomenon Cause analysis Processing method
The meter has no display. The battery is dead. R Replace the new battery.
Unable to receive data The The GSM card is installed correctly and is in the wireless network service area. Install the SIM card correctly and contact the network operator to set up the network.
The pressure value is too small. The pressure hole is blocked. Remove the cleaning pressure hole from the meter.





After sales service

This product is warranted for one year under the conditions that the user fully complies with the requirements of the instructions, the method of use is correct, and no one is damaged.
