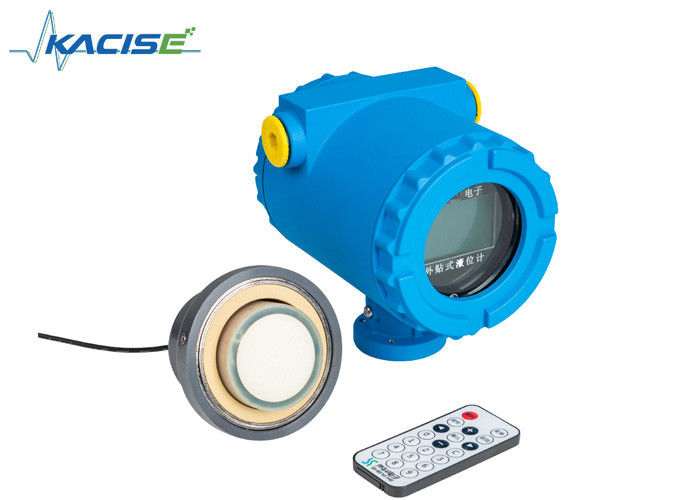

Name: KXEUL01 Non Intrusive Fluid Level Meter / External Liquid Level Gauge with range 3m, 5m, 10m 15m, 20m
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KXEUL01
Price: 1,000.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

KXEUL01 Non Intrusive Fluid Level Meter / External Liquid Level Gauge with range 3m, 5m, 10m 15m, 20m

ultrasonic level transmitter

ultrasonic liquid level sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KXEUL01

Request A Quote

Product Details

Power:

Two Wire / DC 24V

Output:

RS485, Hart, Modbus

Comunication:

RS485, Hart, Modbus

Range:

3m, 5m, 10m 15m, 20m

Protecting:

Ip67

Accurancy:

10mm

Highlight:

ultrasonic level transmitter

ultrasonic liquid level sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

Negotiable

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price

Video

KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution

Get Best Price

Video

Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation

Get Best Price

Video

KDI Series Light Column Display Controller With Digital And Analog Measurement

Get Best Price

86--17719566736

Contact Now

Product Description

KXEUL01 Non intrusive High temperature resistant corrosion resistant and maintenance free External Liquid Level Gauge

Principle of Operation

External liquid lever sensor with sonar ranging principle, using the temperature integrate sensor to process the sonar signal. the sensor is pasted in the outerwall of the tank. Using the patented algorithm to calculate the height of the liquid in the tank and output to a remote control system(eg.DCS) through (4-20)mA,HART, RS-485, Modbus.
According the figure right, the time is taken for the signal to be transmitted and then received from the liquid surface. Signals from the transducer are fed into the processor and then processed by patented algorithm to calculate the height of the liquid according to the formula:

Quick Details

Place of Origin:Shaanxi, China (Mainland)

Brand Name:Kacise

Model Number:KXEUL01

Usage:Level Sensor

Theory:Ultrasonic Sensor

Output:(4-20)mA,HART, RS-485, Modbus

Repeatability error:±5mm

Power:24V DC±5%(two-wire system )

External material:cast aluminum

Ingress Protection:IP67

Explosion-proof Mark:ExdmIICT6

Sites Applicable:

all explosive gas atmosphere except coal mine

Ambient temperature for operation panel:-40°F~+140°F

Ambient temeprature for ultrasonic probe:-40°F~+212°F

Measurable tank wall thickness:

max 70mm

Supply Ability

Supply Ability:300 Piece/Pieces per Month

Packaging & Delivery

Packaging Details

1 set in 1 carton with size 770*290*200(mm) or 600*290*200 (mm)

Port

Lian yungang/Shanghai/Tianjin or other port as customer requests

Externally Mounted Tanks Liquid Level Monitoring for High Corrosive Liquids

1.Non destructive installation--No drilling on tank wall.Just attach probe on tank with magnetic sucker, glue or supporter. No welding and no disturbance in tank normal use,expecially applicable for the tanks with toxic, strong corrosive, alkali liquid inside.

2. Installation does not disturb normal use of tank.

3. No special requirement for medium and tank material.

4. Explosion proof.

5. Applicable in various complicated conditions.

6. Self adjustment technology to make sure stable performance

7. Auto calibration.

8. Strong anti-interference capability.

What can the advanced technology Non Destructive Installation give you?

It is SAFE CONVENIENT and COST SAVING.

You do not have to care if there is high pressure, toxic, or strong corrosive liquid in tank.

Parameters

Repeatability error	2mm
Measurable tank wall thickness	Max 50mm
Tank Material	Steel, Stainless steel, glass, unfoamed plastics and other compact materials.
Measurable medium	Pure liquid, milky liquid, suspension liquid
Ambient temperature:	-4℉~140℉( the max temperature for High temperature type is 302℉)
Ambient humidity	15%~100%RH
Power:	DC 24V 0.05A
Signal output:	Relay output
Relay capacity	DC 30V 6A / AC 250V 6A
Diameter of threading hole	Φ8mm ( adaptive cable diameter Φ6~8mm )
Shell Material	Cast Aluminum
Shell Ingress Protection	IP65
Explosion-proof	ExdmIICT6
Sites applicable	Explosive gas atmosphere except coal mine
Sensor( probe ) shell material	Stainless steel Sensor( probe ) shell material: Stainless steel
Standard connector	G1/2

Application

Our liquid level control/switch has very good application for oil or hazardous chemicals.

Medium already applied in:

Applicable for varous types of tanks, such as sperical tank, stand tank and horizontal tank.

Liquefied Gas	Ethylene	Hydrochloric Acid	Nitric Acid	Sulfuric Acid
Propylene	Aqua Carbolisata	Edible Oil	Crude Oil	Lacquer Thinner
Brine	Butadiene	Chlorethylene	Light Hydrocarbon	Caustic Soda Liquid
	Toluene	Light Oil	Gasoline	C3
Kerosene	Xylol	Oxalic Acid	Oxirane
Carbinol	Ethanol			Diesel

Comparison

So WHY is our liquid level control/switch is your best choice instead of traditional level

control/switch?

Let's see the comparison of our level switch and the traditional one:

Our level switch

Traditional level switch

Installation

No drilling.

Convenient and safe.

Drilling is required.

Inconvenient.

Repair, maintenance, or

replacement for a new level meter

No any disturbance in tank normal use.

Users should release all the liquid in tank and clean it.Therefore, the tank

can not be used for days which will

result in work delay and great loss.

Conclusion: Our liquid level contro/ switch has the absolutely distinguished and competitive

advantages in level control especially for the control of hazardous

liquid ( toxic, strong corrosive, acid.....) in high pressure and hermetically sealed

tank.

Packaging & Shipping

Individual packing
Product is packed between two sponges.
Size: 600mm*110mm*290mm
Gross Weight: Approx 10kg (weight varies according to length of probe cable)

Why Choose Us

Repeatability error	2mm
Measurable tank wall thickness	Max 50mm
Tank Material	Steel, Stainless steel, glass, unfoamed plastics and other compact materials.
Measurable medium	Pure liquid, milky liquid, suspension liquid
Ambient temperature:	-4℉~140℉( the max temperature for High temperature type is 302℉)
Ambient humidity	15%~100%RH
Power:	DC 24V 0.05A
Signal output:	Relay output
Relay capacity	DC 30V 6A / AC 250V 6A
Diameter of threading hole	Φ8mm ( adaptive cable diameter Φ6~8mm )
Shell Material	Cast Aluminum
Shell Ingress Protection	IP65
Explosion-proof	ExdmIICT6
Sites applicable	Explosive gas atmosphere except coal mine
Sensor( probe ) shell material	Stainless steel Sensor( probe ) shell material: Stainless steel
Standard connector	G1/2

Company Information

KXEUL01 Non Intrusive Fluid Level Meter / External Liquid Level Gauge with range 3m, 5m, 10m 15m, 20m 0

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
