External detection level gauge for tanks with highly corrosive liquids

ultrasonic level transmitter

ultrasonic liquid level sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KUM2601

Document:

KUM2601 Clamp On Level Gaug....2.pdf

Request A Quote

External detection level gauge for tanks with highly corrosive liquids

Product Details

Power:

Two Wire / DC 24V

Output:

RS485, Hart, Modbus

Comunication:

RS485, Hart, Modbus

Range:

3m, 5m, 10m 15m, 20m，30m

Protecting:

Ip67

Accurancy:

10mm

Highlight:

ultrasonic level transmitter

ultrasonic liquid level sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

Negotiable

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price

Video

KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution

Get Best Price

Video

Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation

Get Best Price

Video

KDI Series Light Column Display Controller With Digital And Analog Measurement

Get Best Price

86--17719566736

Contact Now

Product Description

Reliable and Stable Externally Mounted Tanks Fluid Level Meter Monitoring For High Corrosive Liquids

1.Principle of Operation

Name: External detection level gauge for tanks with highly corrosive liquids
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUM2601
Price: 1,000.00 USD
Availability: InStock

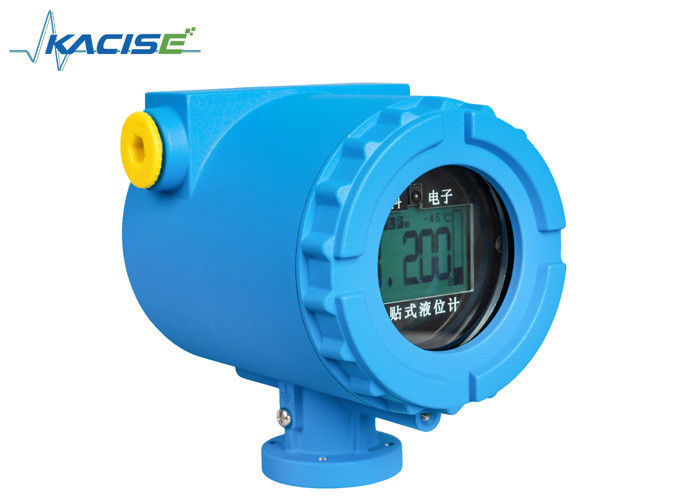

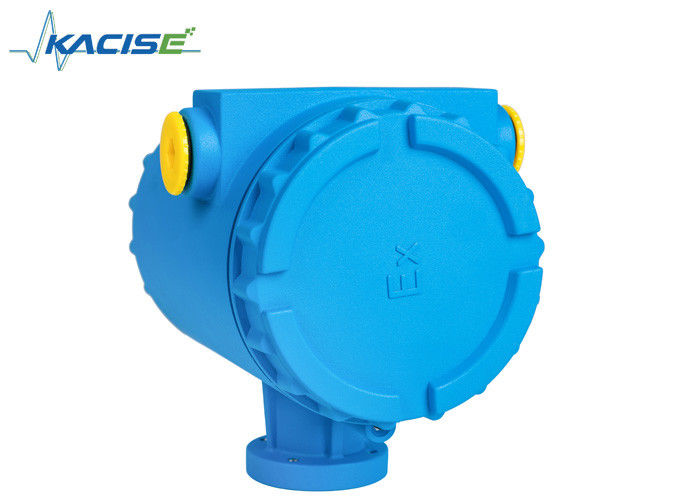

KUM2601 Non-intrusive level gauge (hereinafter referred to as level gauge) is a kind of instrument developed by our company, which uses sonar ranging principle to measure liquid level inside of the container from the outside (bottom) of the container. This product realizes complete isolation measurement.

The liquid level gauge breaks the traditional installation method of open tank contact, and realizes the real non-contact measurement of liquid level height in sealed container. Sonar sensor (probe) is installed directly below the outer wall of the vessel under test (bottom). It does not need to open a hole in the vessel under test. It is easy to install and can be installed without stopping production. It can accurately measure the liquid levels of various toxic substances, strong acids, alkalis and various pure liquids in high temperature and high pressure sealed containers.

2.Parameters

Non-Intrusive Level Gauge	Two-wire	Four-wire
Measuring Range	3m, 5m, 10m, 15m, 20m, 30m, 50m
Display Resolution	1mm
Short-Term Repetition	1mm
Error	±1‰FS, ±2‰FS, ±5‰FS
Temperature Range	-45℃~+100℃
Accuracy	1℃
Output	4～20mA (Maximum load 500Ω), HART,Modbus
Power Supply	DC24V (22V~36V)	DC24V (18V~30V)
Power	< 1 W	< 1 W
Communication	RS-485,Infrared, HART,Modbus
Relay Alarm Output	AC 250V 5A, DC 30V 5A
Ambient Temperature Host	-40℃~+80℃
Ambient Temperature Display	-20℃~+70℃
Ambient Temperature Sensor	-50℃~+100℃
Ambient humidity	(0%～95%)RH
Explosion-proof	ExdⅡCT6
Protection	IP65, IP67
Display	128×64 LCD
Blind Area	< 30mm Under ideal working conditions
Electrical Interface	M20X1.5 (F), 1/2 NPT (F)
Cable Length	5m, optional
Host size / weight	158mmx122mmx148mm, 2kg, base hole dia M5

3.(1)Host Dimension Dimension

External detection level gauge for tanks with highly corrosive liquids 1

(2) Sensor Probe Dimension

External detection level gauge for tanks with highly corrosive liquids 2

4. Electrical Connection

External detection level gauge for tanks with highly corrosive liquids 3

Terminals Definition

Mark	Note
RELAY (NO)	Relay Alarm Normally Open
RELAY (COM)	Relay Alarm Common
RELAY (NC)	Relay Alarm Close
24V (+)	Dc 24V Power+
24V (-)	Dc 24Vpower-
CAL (+)	Calibration Probe Signal
CAL (-)	Calibration Probe Grand
MEA (+)	Measure Probe Signal
MEA (-)	Measure Probe Grand
TEMP (+)	Temperature Sensor Signal
TEMP (-)	Temperature Sensor Grand
485 (+)	Rs485 (Modbus) Modbus A (+)
485 (-)	Rs485 (Modbus) Modbus B (-)
