| Place of Origin: | China(Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof |
| Model Number: | KUS550 |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | USD115 to USD180 per pc |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Detection Range: | 200mm~3000mm | Transducer Frequncy: | 70KHZ |
|---|---|---|---|
| IP Grade: | IP 65 | Material: | PVC Housing |
| High Light: | ultrasonic level transmitter,ultrasonic liquid level sensor |
||

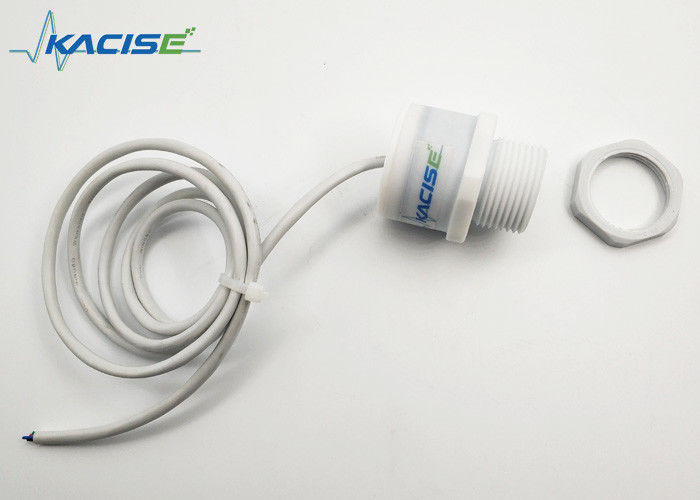

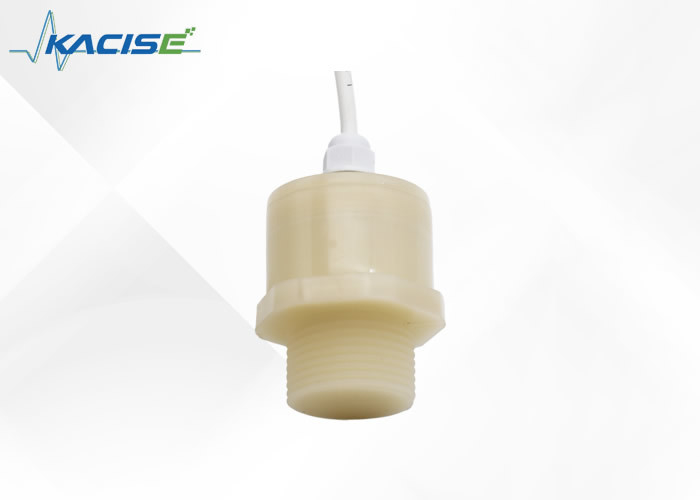

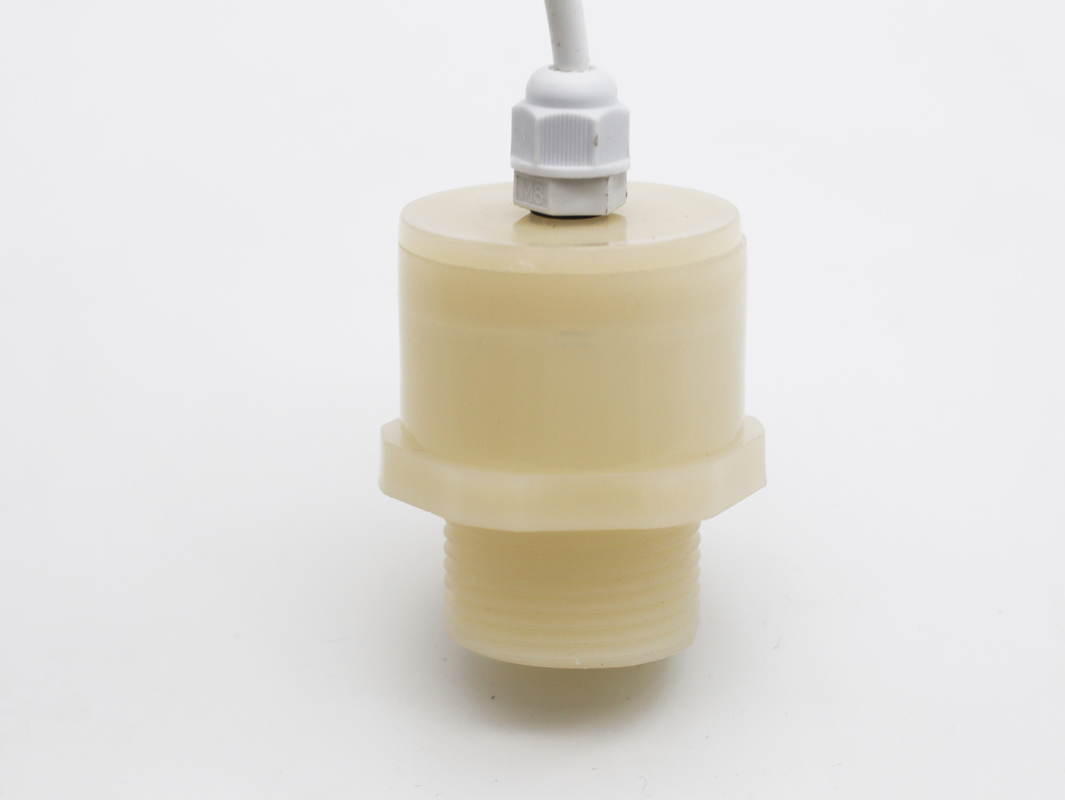

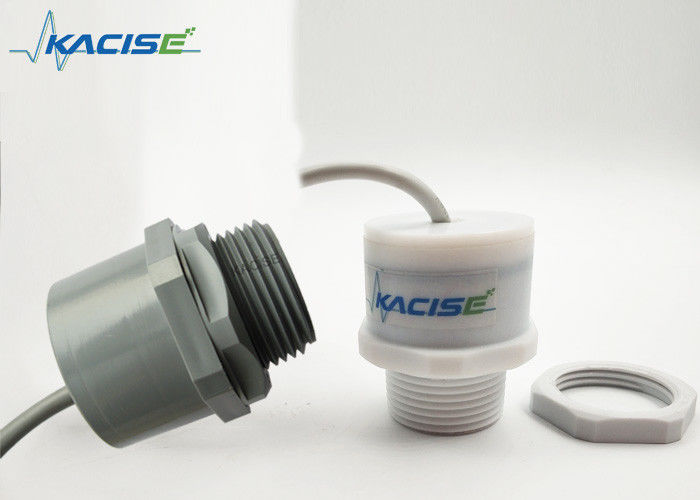

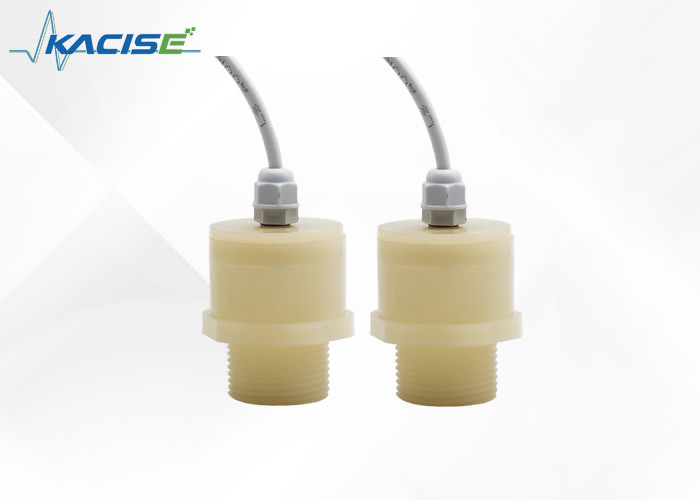

PVC Housing Ultrasonic Distance Sensor For Industrial Automation Distance Measuring
Introduction
This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing, designed to meet IP65.
·
Features
. Designed for outdoor or indoor environments
. High sensitivity
. Free run operation can continually measure and output ranger information
. Sensor beam angle is 7 degrees
· 13-30 supply with very low average current draw
· Sensor operates at 125KHz
Applications
· Tank level measurement
. Bin level measurement
. Proximity zone detection
. People detection
. Robot ranging sensor
. Autonomous navigation
. Multi-sensors navigation
. Distance measuring
. Long range object detection
. Industrial automation
Parameters
| General Parameters | Mechanical Properties | ||
| Detection Range | 200mm~3000mm | Connection | 5 pin cable |
| Transducer Frequency | 70KHZ | Weight | 100g |
| Repeatability Precision | ≤1% | IP grade | IP65 |
| Response Time | ＜50ms | ||
| Beam Angle | 7°±2 | ||
| Temp. Compensation | inside/outside/fix temp. | ||
| Electrical Parameters | |||
| Operating Voltage | 14.5VDC~27VDC | ||
| Limit Working Voltage | 13VDC~30VDC | ||
| Power Consumption | ≤30mA | ||
| Circuit Protection | short-circuit protection, overload protection | ||
| Output | Digital Output | RS485 | |
| Analogue Output | 0~5V | ||
| Switch Output | 0V / 5V | ||
| Ambient Environment | |||
| Operating Ambient Temp. | 0~70℃ (-40~85℃, -55~125℃, etc, customizable) | ||
| Storage Temperature | -55~125℃ | ||
Dimensions
Wire
