Name: Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLD-601/602
Price: 1,000.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G

ultrasonic level transmitter

ultrasonic liquid level sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLD-601/602

Request A Quote

Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G

Product Details

Aerial:

Rod Antenna

Casing:

Aluminum/Plastic

Connection:

Flange (optional) / Thread

Frequency:

6GHz

Temperature:

(-40 ~ 180) ℃

Power Source:

Two-wire (DC24V) Four-wire（DC24V/AC220V）

Protection Class:

IP65/IP67

Intrinsically Safe:

Exia IIC T6 Ga

Standard:

Non-explosion-proof

Highlight:

ultrasonic level transmitter

ultrasonic liquid level sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

Negotiable

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram， Paypal

Supply Ability

1000 Piece/Pieces per Week negotiable

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price

Video

KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution

Get Best Price

Video

Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation

Get Best Price

Video

KDI Series Light Column Display Controller With Digital And Analog Measurement

Get Best Price

86--17719566736

Contact Now

Product Description

Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G

Introduction

Antenna system to launch and microwave receiving energy is very low, very short pulse. Radar waves travel with the speed of light. The running time can be through the electronic components are converted into a signal. Measurement of this special time extension method can realize stable, accurate in a very short period of time.

Even if the condition is very complex, the presence of false echo, with the latest micro-processing technology and debugging software also can analyze the level echo accurately.

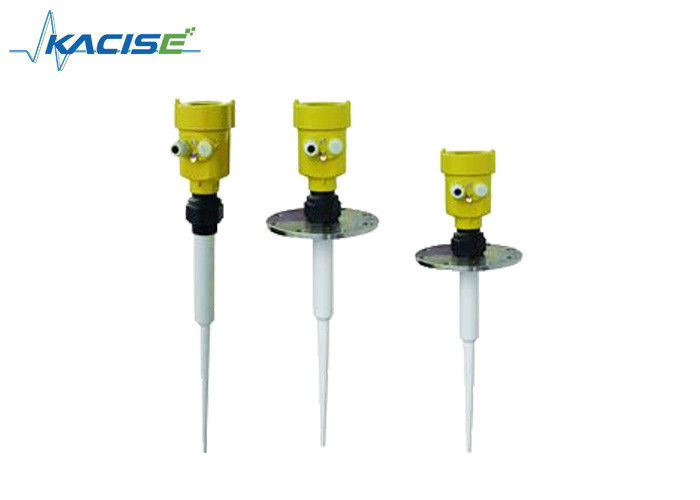

Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G 0

Parameters

Suitable for Medium	Liquid, slightly corrosive liquid
Explosion-proof Grade	Exia IIC T6 Ga/ Exd ia IIC T6 Gb
Measuring Range	20m
Aerials	The Rod Antenna (PP/PTFE)
Frequency	6GHz
Temperature	(-40 ~ 130) ℃
Measurement Precision	±10mm
Process Pressure	(-0.1 ~ 0.3) MPa
The signal Output	(4 ~ 20) mA/HART
The Scene Display	Four LCD/can be programmed
Power Source	Two-wire (DC24V) Four-wire(DC24V/AC220V)
Repeatability	± 1mm
Casing	Aluminum/Plastic
Connection	Flange (optional) / Thread

Tank Installation

A Standard Installation

The radar antenna cannot tilt to the tank wall

In order to minimize temperature effect,at the junction of butt joint of flange must use the spring washer

The rod antenna launching point must reach out to install pipe

The vertical placement of the rod antenna beam direction,don't let the tank wall

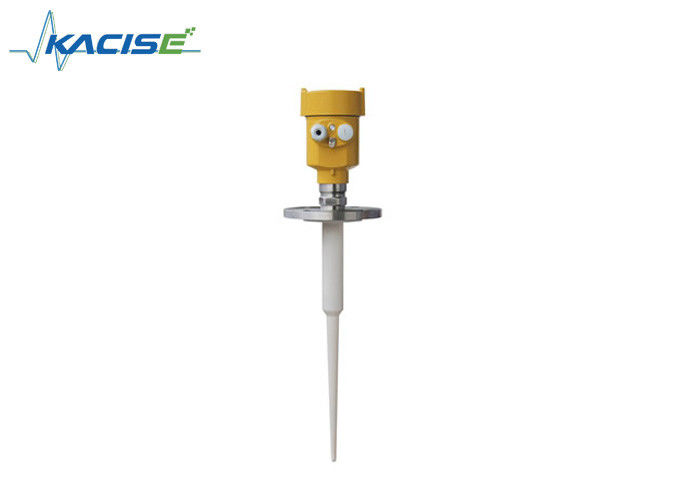

Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G 1
