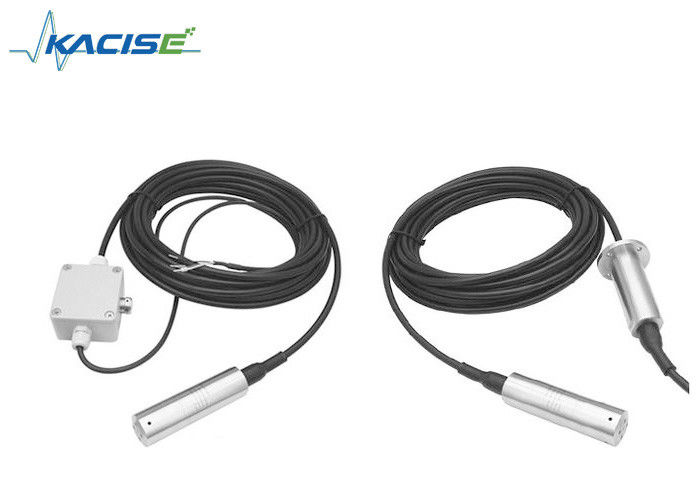

4-20mA Submersible Geothermal Water Level Sensor with Stainless Steel Structure and High Temperature Resistance

The GXPS420 Series pressure transmitter is a highly reliable, high stability, high precision, high-temperature liquid level transmitter. Mainly used for the measurement of high temperature fluid level. This product uses 1Cr18Ni9Ti stainless steel structure, import the internationally famous brand of diffusion of oil-filled pressure core body , dedicated to zoom in and V / I transmitter conversion circuit, and can facilitate to calibrate its zero and full scale. According to different use of site configure wear, oil, acid and alkali resistant, high strength special breathable cable. Two-wire system circulation output leads non-polarity, three-wire voltage output for AC and DC. The security proof, isolation, explosion-proof certification and CE certification.

• Accuracy: ±0.25%,±0.5%F.S
• Diffused-silicon oil-filled core
• Submersible and screw thread installation
• The Max. of temperature is 120℃
• Non polarized and 2 wire system output
• Intrinsically safe mode, explosion-proof, CE
• Against severe electromagnetic interference

1. Geothermal measurement
2. Geothermal water collection
3. Thermal power plant cooling water monitoring
4. Thermal boilers
5. Hydrologic monitoring facilities
6. Heating boiler
7. Generating set
8. Hydroelectric power
