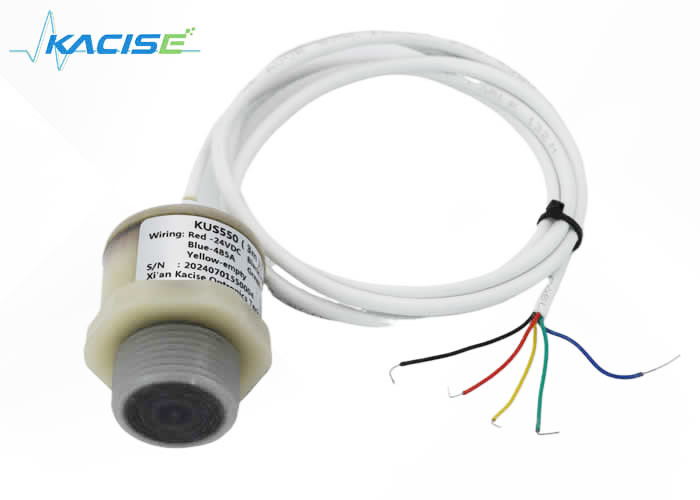

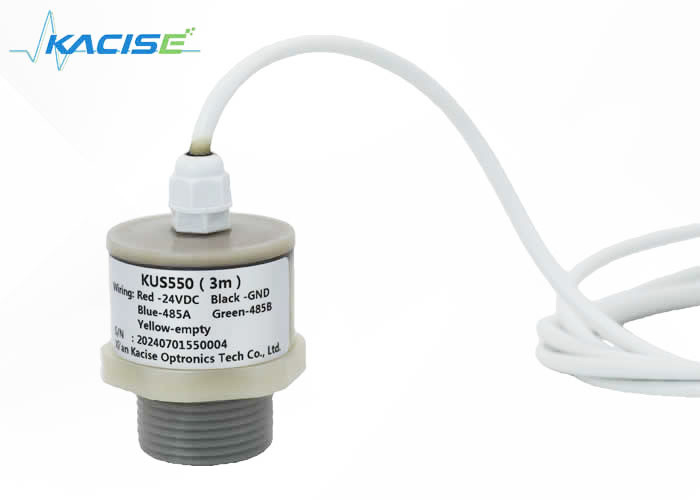

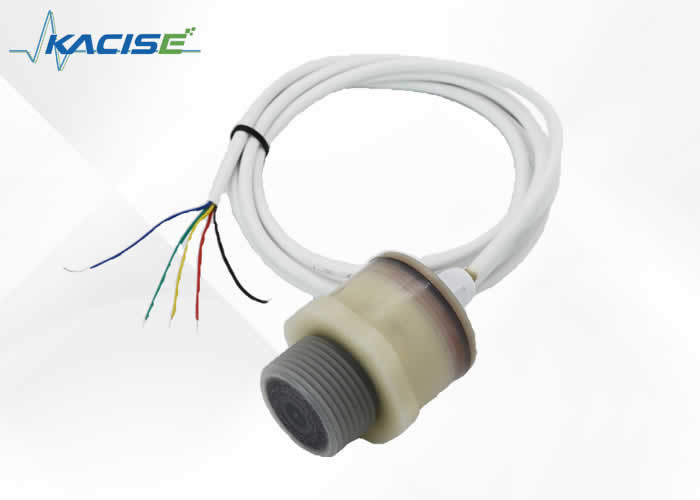

Name: IP68 Waterproof PTFE Material Ultrasonic Water Level Sensor Wireless 200mm - 3000mm Detection Range
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS550
Price: 1,000.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

IP68 Waterproof PTFE Material Ultrasonic Water Level Sensor Wireless 200mm - 3000mm Detection Range

ultrasonic level transmitter

ultrasonic liquid level sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KUS550

Document:

KUS550 series ultrasonic se....8.pdf

Request A Quote

Product Details

Detection Range:

200mm-3000mm

Response Time:

<50ms

Beam Angle:

7° ± 2

IP Grade:

IP65

Operating Voltage:

24VDC

Output:

Digital Output RS485 Anaolue Output 0-5V Switch Output 0V /5V

Highlight:

ultrasonic level transmitter

ultrasonic liquid level sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

Negotiable

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price

Video

KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution

Get Best Price

Video

Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation

Get Best Price

Video

KDI Series Light Column Display Controller With Digital And Analog Measurement

Get Best Price

86--17719566736

Contact Now

Product Description

IP68 Waterproof PTFE Material Ultrasonic Water Level Sensor Wireless 200mm - 3000mm Detection Range

1.Product Description

The IP68 Waterproof PTFE Material Ultrasonic Water Level Sensor is an outstanding product. Made of PTFE material, it offers excellent chemical resistance. With IP68 waterproof rating and a wireless design, it can operate in harsh environments. Its detection range from 200mm to 3000mm allows for accurate measurement of water levels in diverse applications.

2. Product features:

Designed for outdoor or indoor environments
High sensitivity
Free run operation can continually measure and output ranger information
Sensor beam angle is 7 degrees

3. Parameter

General specifications

Model: KUS550
Measuring range	0.25m~3m (5m customizable)KUS550A 0.15m-0.6m(1m customizable)KUS550B；
Blind spot	The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm;
Supply voltage	3.3 ... 30 VDC, ripple 10 %SS
Working current	≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA;
Output signal	0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output.
Measurement accuracy	≤1 %F.S.
Temperature compensation	Yes
Ranging resolution	0.1mm；

Working conditions

Working temperature	-40…85℃ (233...358K)
Storage temperature	-40…85℃ (233...358K)

Other instructions

Electrical connection	5-core cable (analog output), 6-core cable (switch output) .
Protection class	IP68
Shell material	PVC /PVDF/PTFE/ABS

4.Dimensions

IP68 Waterproof PTFE Material Ultrasonic Water Level Sensor Wireless 200mm - 3000mm Detection Range 0

5.Wiring

Analogue output type wiring diagram

IP68 Waterproof PTFE Material Ultrasonic Water Level Sensor Wireless 200mm - 3000mm Detection Range 1

Switch output type wiring diagram

IP68 Waterproof PTFE Material Ultrasonic Water Level Sensor Wireless 200mm - 3000mm Detection Range 2

6.Application

Tank level measurement
Bin level measurement
Proximity zone detection
People detection
Robot ranging sensor
Autonomous navigation
Multi-sensors navigation
Distance measuring
Long range object detection
Industrial automation
