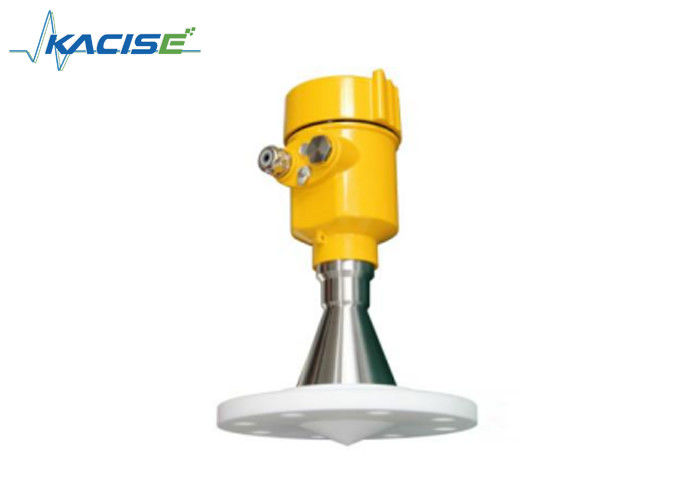

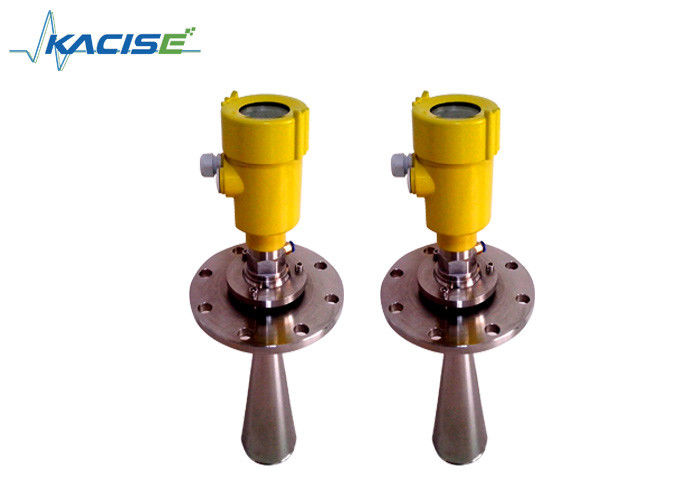

70m Measuring Range Radar Type Level Transmitter 26GHz Frequency High Accuracy

70m Measuring Range Radar Type Level Transmitter 26GHz Frequency High Accuracy

  • 70m Measuring Range Radar Type Level Transmitter 26GHz Frequency High Accuracy
  • 70m Measuring Range Radar Type Level Transmitter 26GHz Frequency High Accuracy
70m Measuring Range Radar Type Level Transmitter 26GHz Frequency High Accuracy
Product Details:
Place of Origin: China (Mainland)
Brand Name: KACISE
Certification: CE
Model Number: KLD-2605
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Protection: IP67 Frequency: 26GHz
Measuring Range: 70m Accuracy: ±15mm
Process Connection: Atmospheric Signal Ouput: 4-20mA/Hart RS485/Modbus
High Light:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

Product Overview

This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 80 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.



  Principle

Radar level transmitter antenna microwave pulse is narrow, the downward transmission antenna. Microwave exposure to the medium surface is reflected back again by the antenna system receives, sends the signal to the electronic circuit automatically converted into level signals (because the microwave propagation speed, electromagnetic wave to reach the target and the reflected back to the receiver this time is almost instantaneous).



70m Measuring Range Radar Type Level Transmitter 26GHz Frequency High Accuracy 0

  • The characteristics of 26G radar level meter:

1) Small antenna size, easy to install; Non-contact radar, no wear, no pollution.

2) Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.

3) Serious dust environment on the high level meter work has little effect.

4) A shorter wavelength, the reflection of solid surface inclination is better.

5) Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.

6) The measuring range is smaller, for a measurement will yield good results.

7) High signal-to-noise ratio, the level fluctuation state can obtain better performance.

8) High frequency, measurement of solid and low dielectric constant of the best choice.

 Technical Specification and Model Selections:

Suitable for Medium Powder, granule, bulk solid
Application Lime powder, cement, coal ash, coal and ore etc. in silo
Measuring Range 15m for powder, 20m for granule and block
Process Connection Flange, Min. flange is DN100
Medium Temperature -40 ~ 250
Process Pressure -0.1 ~ 0.1MPa
Accuracy ±20~50mm
Protection Grade IP67
Frequency Range 26GHz
Explosion-proof Grade Exia IICT6 Gb
The signal Output 4 ~ 20mA/HART(2 wire/4wire),RS485/Modbus is optional

Applications and Cases



70m Measuring Range Radar Type Level Transmitter 26GHz Frequency High Accuracy 1



The Electrical Connection



(4~20)mA/HART (Two wire system) The power supply and the output current signal sharing a two core shield cable. The supply voltage range see technical data. For intrinsically safe type must be a safety barrier between the power supply and the instrument.

(4~20)mA/HART(Four wire system) Separate power supply and the current signal, respectively using a two-core shielded cable. The supply voltage range see technical data.

RS485 / Modbus Power supply and Modbus signal line separate drespectively using a two-core shielded cable, the power supply voltage range see technical data.

70m Measuring Range Radar Type Level Transmitter 26GHz Frequency High Accuracy 2
