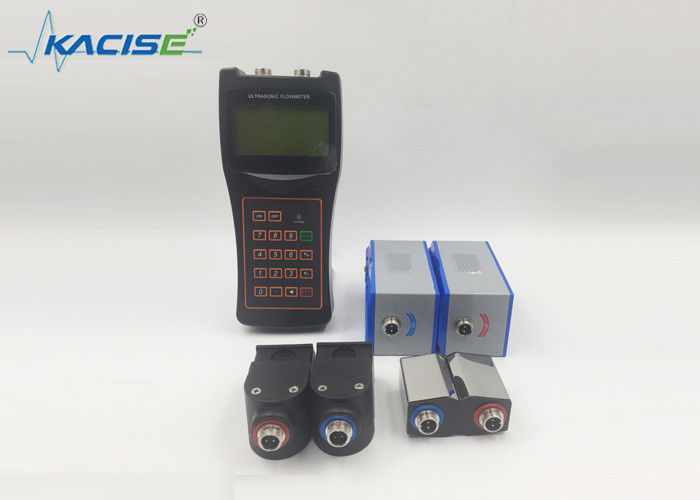

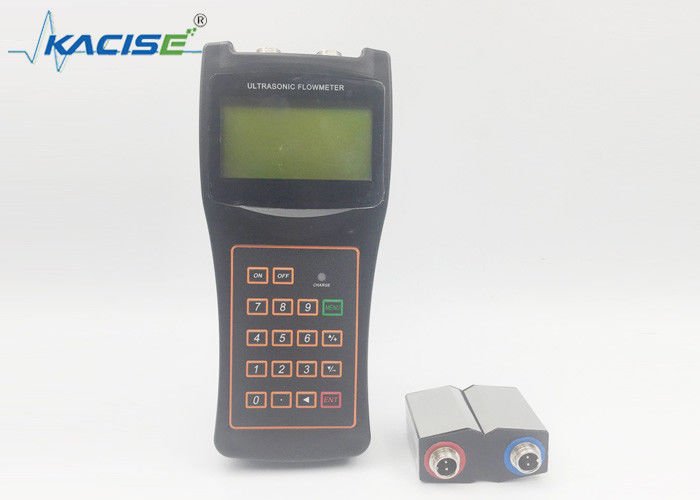

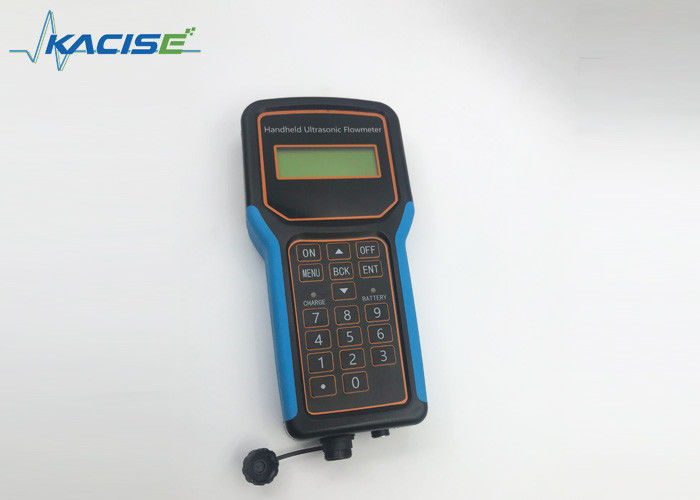

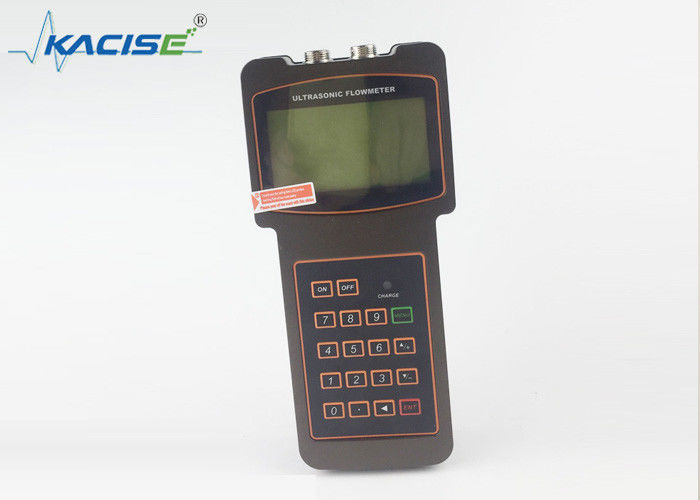

KUFH2000B Portable Ultrasonic Flow Meter 1.5W Consumption For Flow Monitoring

KUFH2000B Portable Ultrasonic Flow Meter 1.5W Consumption For Flow Monitoring

  • KUFH2000B Portable Ultrasonic Flow Meter 1.5W Consumption For Flow Monitoring
  • KUFH2000B Portable Ultrasonic Flow Meter 1.5W Consumption For Flow Monitoring
  • KUFH2000B Portable Ultrasonic Flow Meter 1.5W Consumption For Flow Monitoring
  • KUFH2000B Portable Ultrasonic Flow Meter 1.5W Consumption For Flow Monitoring
KUFH2000B Portable Ultrasonic Flow Meter 1.5W Consumption For Flow Monitoring
Product Details:
Place of Origin: CHINA
Brand Name: kacise
Certification: ISO90001
Model Number: KUFH2000B
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Power Supply:: DC8~36V Or AC85~265V( Optional) Temperature:: -30~160℃
Consumption:: 1.5W Output:: 4~ 20mA Output,RS485
Type Of Liquid:: Water, Sea Water, Waste Water, Oil, Chemicals (alcohol, Acids, Etc.), Plant Effluent And Other Liquids Pipe Diameter:: 32~6000mm
High Light:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

Kacise KUFH2000B Portable Ultrasonic Flow Meter for Flow Mesure and Monitor and Control



1. Introduction



KUFH2000B  handheld ultrasonic flow meter is ideal for flow surveys and closed pipe application where
non-invasive measurement of liquids is required.
The advantages of high measurement accuracy, good consistency, battery power supply, easy operation
and portability make this meter the smallest and lightest flow meter in domestic and a significant portable
ultrasonic flow meter





2. Features

  • High accuracy:Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy:±1%
  • Wide range of flow rate and pipe diameter:Suitable for the pipe with DN32 to DN6000
  • Rechargeable power supply:Built-in NIMH rechargeable battery, which can support 12 hours of continuous work. When charging by power adapter, it can realize the uninterrupted measurement.
  • Non-intrusive measuring:Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
  • Large LCD display:Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc.
  • Built-in data logger:Built-in 24K data logger, store over 2000 lines measuring data



3. Installation



KUFH2000 Series Handheld Ultrasonic Flow Meter RS485 Output DC8-36V





4. Sensor selection



Sensor selection depend on the application field parameters such as the diameter of the pipe the fix method
the kind of the flow, please refer to the fix method choice chapter for details.



KUFH2000 Series Handheld Ultrasonic Flow Meter RS485 Output DC8-36V



5.Parameters



tem Performance and Parameter









Main unit

Principle Transit time measure, 4 bytes of IEEE754 floating point arithmetic
Accuracy 1 %
Display Support English, Chinese, Italian and France



Signal output

1 channel 4-20mA current output

1 channel pulse width is adjustable between 6~1000ms, 200ms(default)

1channel relay output

Signal input 3 way 4-20mA input, acquire signals such as temperature, press and liquid level.
Achieve to heat measurement by connecting the temperature transducer PT100.
Data port RS485 serial interface, upgrade the flow meter software by computer, support MODBUS

Data

Record

Thermal printer, external SD card(2G of capacity)

Pipe

Installation

Condition

Pipe Material Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.
Pipe Diameter 15~6000mm
Straight Pipe Sensor installation should be satisfied: upstream 10D, downstream 5D, 30D from the pump.



Measuring

Medium

Type of

Liquid

Single liquid can transmit sound wave, such as water, sewage, oil, chemicals, plant effluent, beverage, ultra-pure liquids, etc.
Temperature -30°C~160°C
Turbidity Less than 10000ppm, not so much baubles
Flow speed 0 ~±10m/s



Working ambient

Temperature Host: -20~60°C Sensor: -30~160°C
Humidity Host: 85% Sensor: IP67



Power supply

8 built-in Ni-MH batteries 1.2V(for over 20 hours of operation). Could operate 8 hours by connecting 4-20mA signal output. By using 90V - 260V AC adapter, continuous measurement can be realized.





  Flow speed 0~±10m/s
Environment temperature Host:﹣20~60°C;Sonser:﹣30~160°C
Humidity Host:85%RH;Flow sensor:IP67
Power supply 3builit 1.2V capacity rechargeable Ni-MH bettery 2000mAH ,full of electricity sustainable work more than 12 hours ,power adapter:AC90-260V,which can realize continuous measurement
consumption 1.5W
shell material Inflaming retarding ABS
Host part weight 390g





6. Ordering information



KUFH2000 Series Handheld Ultrasonic Flow Meter RS485 Output DC8-36V
