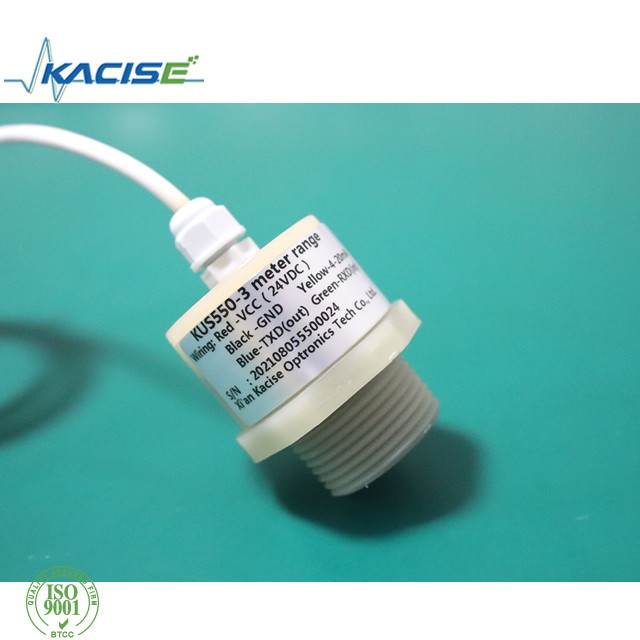

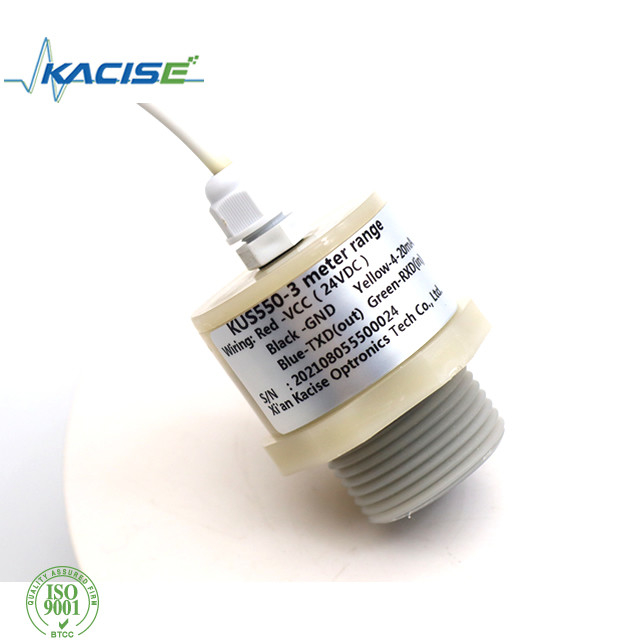

NPT PTFE Ultrasonic Level Sensor Anti Corrosion Chemical Liquid Measurement

NPT PTFE Ultrasonic Level Sensor Anti Corrosion Chemical Liquid Measurement

  • NPT PTFE Ultrasonic Level Sensor Anti Corrosion Chemical Liquid Measurement
  • NPT PTFE Ultrasonic Level Sensor Anti Corrosion Chemical Liquid Measurement
NPT PTFE Ultrasonic Level Sensor Anti Corrosion Chemical Liquid Measurement
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KUS550
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Detection Range: 200mm~3000mm Transducer Frequency: 70KHZ
Repeatability Precision: ≤1% Response Time: <50ms
Beam Angle: 7°±2 Temp. Compensation: Inside/outside/fix Temp.
Operating Voltage: 14.5VDC~27VDC Output: RS485,0~5V
Operating Ambient Temp.: 0~70℃ (-40~85℃, -55~125℃, Etc, Customizable) IP Grade: IP65
High Light:

waterproof ultrasonic sensor

,

ultrasonic fuel level sensor

Anti Corrosion Chemical Liquid Measurement / NPT PTFE Ultrasonic Level Sensor for monitoring liquid levels and barns

KUS550 Ultrasonic Distance Sensor





1. Product Description



This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,
designed to meet IP65.





2. Product features:

  • High sensitivity.
  • Compact and robust structure.
  • IP68 high protection rating.
  • Corrosion resistant casing, suitable for corrosive medium and application



3. Parameter

General specifications



Model: KUS550
Measuring range

0.25m~3m (5m customizable)KUS550A

0.15m-0.6m(1m customizable)KUS550B;

Blind spot The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm;
Supply voltage 3.3 ... 30 VDC, ripple 10 %SS
Working current ≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA;



Output signal

0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output.
Measurement accuracy ≤1 %F.S.
Temperature compensation Yes
Ranging resolution 0.1mm;



Working conditions

Working temperature -40…85℃(233...358K)
Storage temperature -40…85℃(233...358K)

Other instructions

Electrical connection 5-core cable (analog output), 6-core cable (switch output);
Protection class IP67
shell material PVC /PVDF/PTFE/ABS


4. Dimensions



NPT PTFE Ultrasonic Level Sensor Anti Corrosion Chemical Liquid Measurement 0



5. Wiring



NPT PTFE Ultrasonic Level Sensor Anti Corrosion Chemical Liquid Measurement 1



6. Application

  • Tank level measurement
  • Bin level measurement
  • Proximity zone detection
  • People detection
  • Robot ranging sensor
  • Autonomous navigation

7.Description of Sensor Functions

Adjusting the analogue output.

The analogue output can be programed as the user want. Such as working at switch output or working at liner output all the parameters can be set by the RS485 interface.

There is 8 types of output functions can be programed.

All the setting routine as follows,

step 1 set one pointed distance by the RS485,

step 2 set another pointed distance by the RS485.

Step3 set the output type liner or switch, and set the related output options

Step4 reboot the sensor.

1. Window mode normally-open and liner mode positive slope output function.

2. Window mode normally-closed and liner mode negative slope output function.

3. Single switching point, normally-open function.

4. Single switching point, normally-closed function.

5. Single switch point with hysteresis gap normally-open function.

6. Single switch point with hysteresis gap normally-closed function.

7. Detection of object presence-normal open function.

8. Detection of object presence-closed open function.

Switching point, Setting distance only after power on. The internal clock can assure can't be changed after 5 minutes after power on. If want to change the switching point, the user can only setting the request distance after power restart.

For the RS485 output type.

There are 2 kinds of working style,

One for auto measure, the sensor will measure the distance or level repeatedly, and the measurement period can be set by the UART. The measure result can be fetched every time.

The other style is power save mode when the sensor is sleep, until the sensor received the inquiry command with pre-code. Communication protocol is Modus-RTU.

For example the measure result can be read by access the register 0x101 by Modbus protocol.

For more information please contact us for the software engineering guide.
