Ultrasonic External Stick Fluid Level Meter Fuel Level Sensor Non Contact

Product Details

Product:

Ultrasonic Clamp On Sensor

Detection Range:

50mm~3000mm

Operating Voltage:

9~36VDC

Work Temperature:

-40℃~+85℃(Industry Level)

Working Humidity:

5%~90%

Pressure Bearing Scope:

≤0.8kg Or 0.8MPa

Liquid Measurement Accuracy:

±1%

Output:

RS485/4~20mA

Highlight:

ultrasonic level transmitter

ultrasonic liquid level sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Rs485 Intelligent Ultrasonic Sensor 4 - 20mA Wide Range

Get Best Price

GXRS Series Water Tank Level Indicator Sensor Stainless Steel Material

Get Best Price

KUS550 Ultrasonic Sensor For Distance And Level Measurement with ip68

Get Best Price

RS485 Output Fluid Level Meter Beer Tank Liquid Level Measurement Sensor

Get Best Price

86--17719566736

Contact Now

Product Description

Ultrasonic External Stick Fluid Level Meter Fuel Level Sensor

Product Specifications

Product Type	Ultrasonic Clamp on Sensor
Detection Range	50mm~3000mm
Operating Voltage	9~36VDC
Work Temperature	-40℃~+85℃ (Industry level)
Working Humidity	5%~90%
Pressure Bearing Scope	≤0.8kg or 0.8MPa
Liquid Measurement Accuracy	±1%
Output	RS485/4~20mA

Product Overview

The Ultrasonic External Stick Fuel Level Sensor is designed for fleet management, providing accurate fuel monitoring to prevent theft, optimize transportation costs, and improve driver behavior analysis. Using advanced ultrasonic technology, it measures fuel level height and transmits data via GPS to generate comprehensive fuel reports.

Product Features

High Precision: 0.1mm resolution with ±0.5% accuracy in extreme temperatures
Long-Term Stability: Non-contact ultrasonic measurement prevents fuel corrosion
Easy Installation: Mounts externally without tank modifications
Environmentally Friendly: No drilling required, minimal energy consumption
Reliable Performance: Operates in harsh conditions with moisture, acid, and flame resistance

Technical Parameters

Maximum Power Consumption	0.8W/12VDC
Measurement Range	5~200cm for 5mm thick steel containers
Equipment Interface	Analog voltage/current, RS232, RS485
Communication Parameters	9600 baud rate (customizable), 8 data bits, 1 stop bit

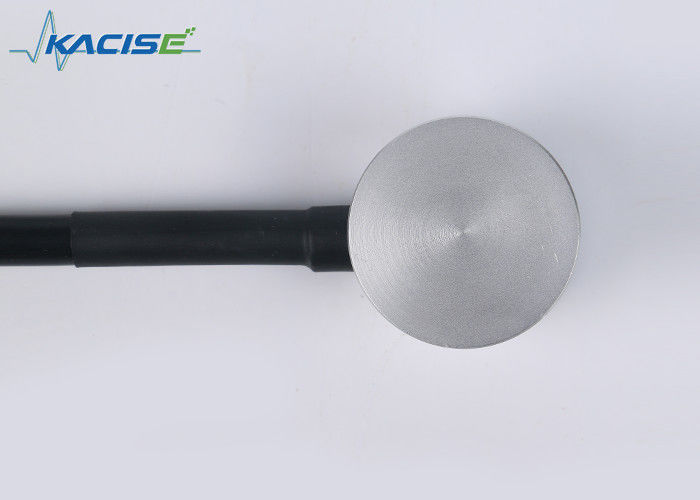

Product Images

Application Scope

Ideal for logistics vehicles, taxis, buses, and coaches. Provides digital fuel tracking to prevent theft, reduce waste, enhance management efficiency, and improve operational standards.

Connection Details

Pin Position	Function	Description
1	Positive pole of power supply	9~36VDC
2	Negative pole of power supply
3	TX	RS232 transmitting terminal
4	RX	RS232 receiving terminal
5	B	RS485 B
6	A	RS485 A
9	AOUT	Analog voltage output
10	GND	Reference ground
